STEERING

10

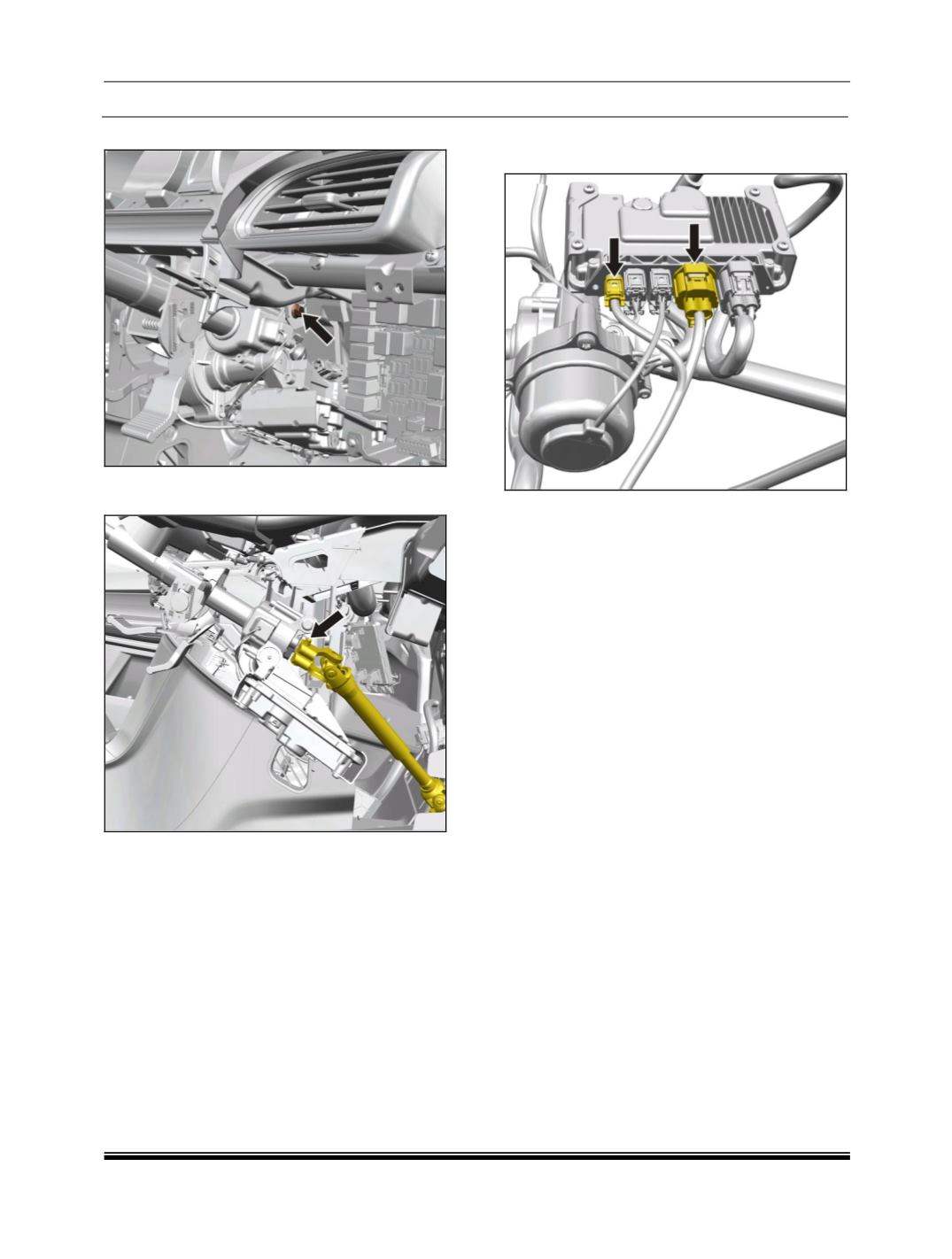

8. Remove the bolt as shown in figure.

9. Remove the mounting screw of upper

universal joint.

NOTE:

Do not reuse the universal joint bolts.

10.Disconnect the electrical connector’s from the

ECU.

11.Disengage the steering column assembly from

the upper universal joint and take out the

steering column.

REFITMENT:

For assembly follow reverse procedure of

removal.
