TIAGO

STEERING

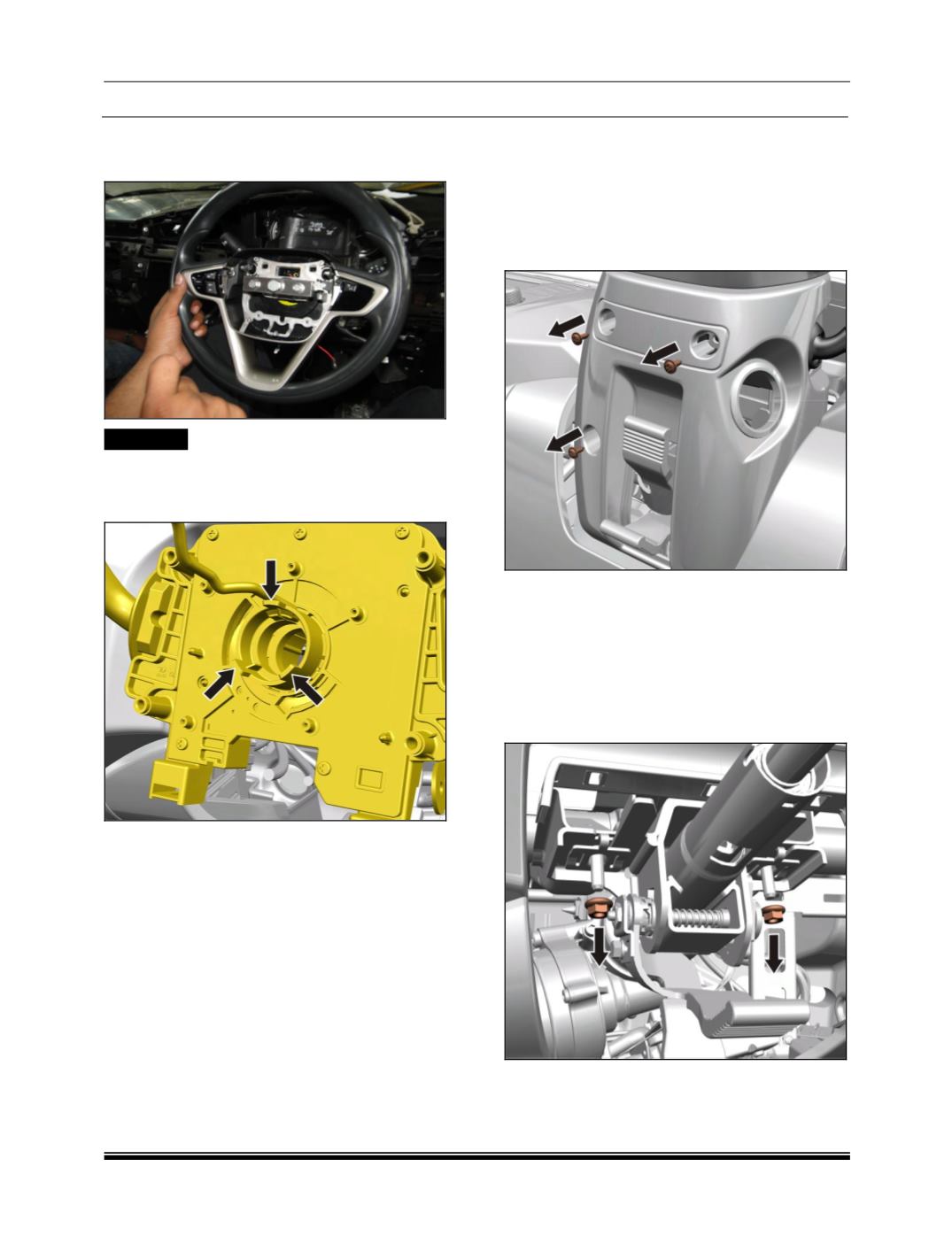

5. Remove steering wheel using steering wheel

puller. (Part No. 2779 5890 46 01)

CAUTION

Care should be taken such that self cancellation

lugs do not get damaged (self cancellation lugs are

shown in below figure with arrows).

INSPECTION:

Check for any damage to self cancellation lugs, if

found, replace complete steering wheel

INSTALLATION:

1. Align the marks made on the steering wheel

and the shaft. Install steering wheel on steering

shaft

2. Tighten the steering wheel nut to the

specified torque.

Tightening torque (Steering wheel nut) = 4Kg-m

3. Fit horn pad (Press fit type).

4. Connect battery.

7.2.3.2 STEERING COLUMN REMOVAL

1. Disconnect the connection of battery.

2. Remove steering wheel (

Refer Steering wheel

removal procedure).

3. Remove 3 nos screws of nacelle bottom cover

& take out the nacelle bottom cover.

4. Remove combi switch assembly (

Refer

Electrical section

)

5. Remove combination switch.

(Refer body

section / Electrical section.)

6. Remove the

dash board bottom cover

(

Refer

body section

7. Remove the 2 nos mounting nuts.
