232 / 1002
1.05L REVOTORQ ENGINE
21

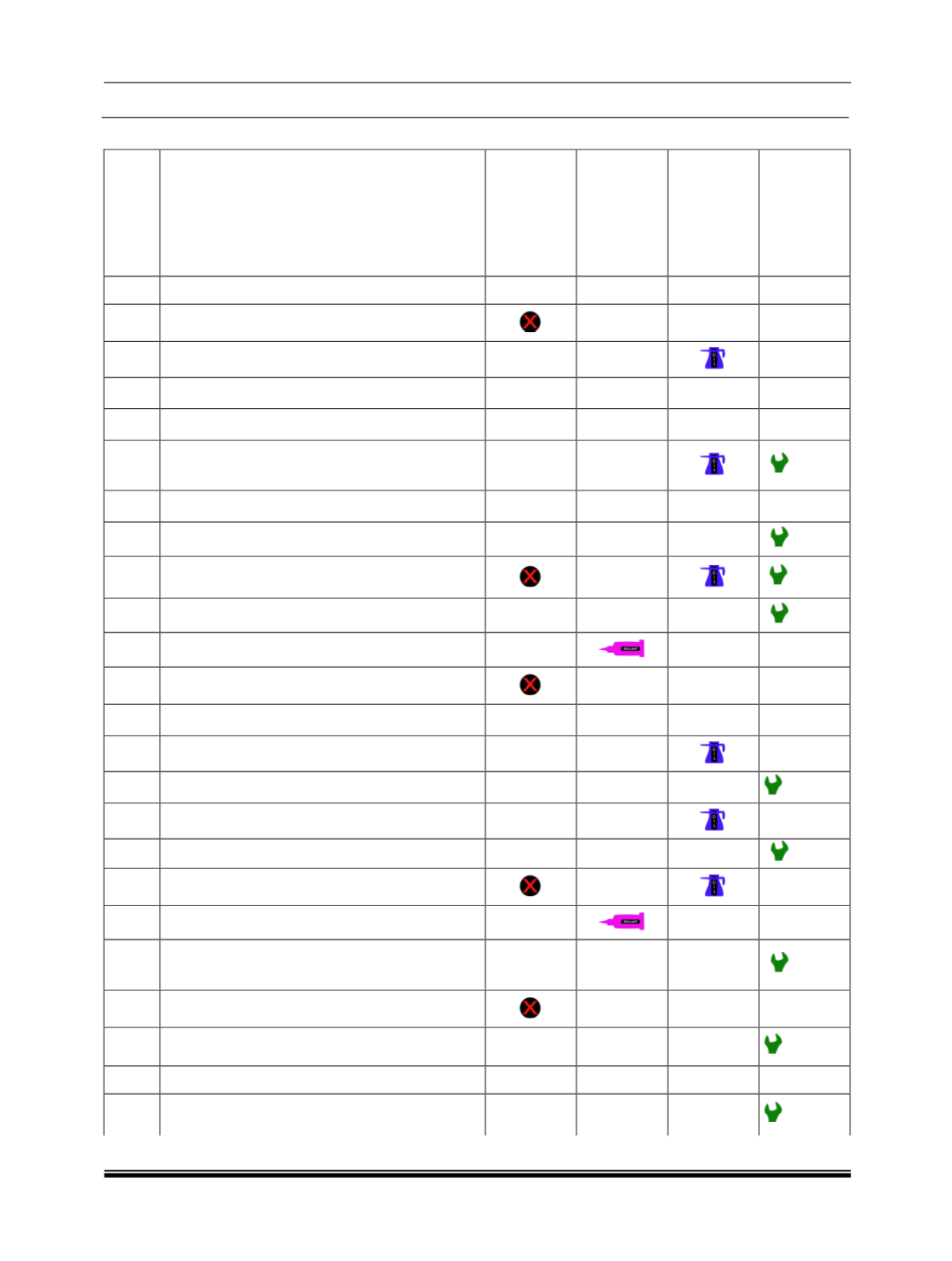

CYLINDER HEAD AND COVER :
ITEM
NO.
DESCRIPTION
NO REUSE
SEALANT
LUBRICATION
TIGHTENING
TORQUE
(kg-m)
01
Oil Filler Cap
02
'O' Ring (For Oil Filler Cap)
03
Assembly Injector with Washer
04
SPH. Washer (Injector Claw)
05
Cylinder Head Cover
06
Integral Bearing Frame on Head
(Hex. Fl. Bolt M6X40) (Qty - 18)
1+0.2
07
Bracket (For Dipstick Tube)
08
Hex Fl Screw M6X12
1+0.2
09
Hex Bolt M12X145 (Cyl Head) (Qty - 8)
•
5+180
0
10
Glow Plug
1+0.2
11
Cylinder Head Assembly
12
Gasket (Cylinder Head)
13
Cylinder Crankcase
14
Assembly Vacuum Pump
15
Hex FL Bolt M6X20 (Qty - 3)
1.5+0.2
16
Assembly HP pump
17
Hex FL Bolt M8X35 (Qty - 3)
2+0.3
18
Washer (For Cylinder Head Bolt) (Qty - 8)
19
Integral Cam Bearing Frame
20
Integral Bearing Frame on Head
(Cap Screw M8X50L) (Qty - 3)
1+0.2
21
Gasket (Cylinder Head Cover)
22
Decoupling Element (Qty - 15)
0.8+0.2
23
Injector Claw
24
Hex Fl Bolt M8X45 (Qty - 3)
•
2.7+0.3
Note:-
•
This Symbol indicates critical tightening torque.
