TIAGO

1.2L REVOTRON ENGINE

167

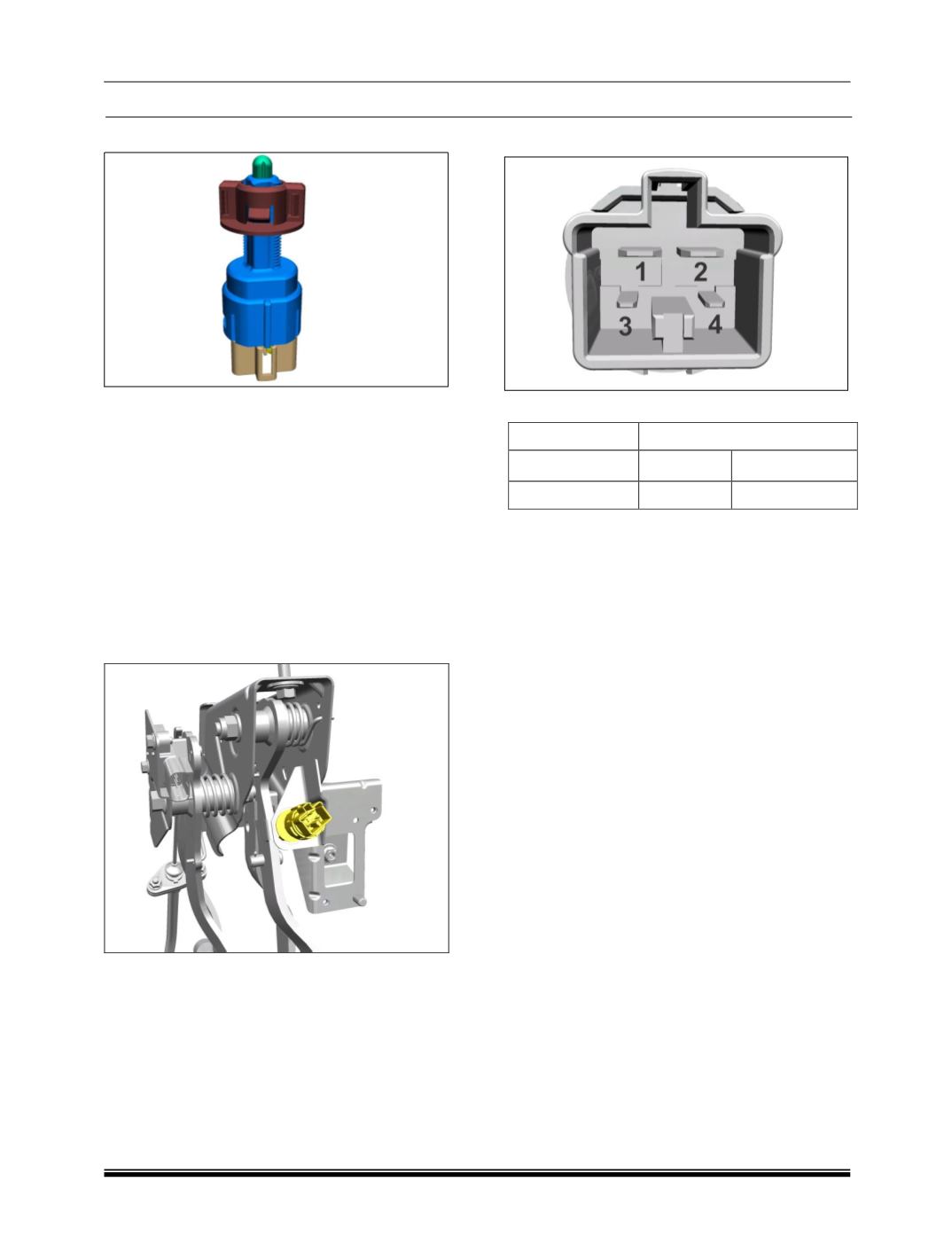

IV. Brake Switch :



Component Details

It provides information to ECU about the brake

application and ECU maintains the optimum fuel

supply.

The brake pedal is fitted with two Brake switches,

which provide the information to ECU about the

brake pedal application.



Upper brake switch give signal to EMS ECU

for cruise control functionality.



Lower brake switch give signal to tail lamp&

ABS/ESP ECU.



Component Location :



Connector View :



Connector Details:

Connector

Description

1-2

OFF

Free

3-4

Push
