1.2L REVOTRON ENGINE
168

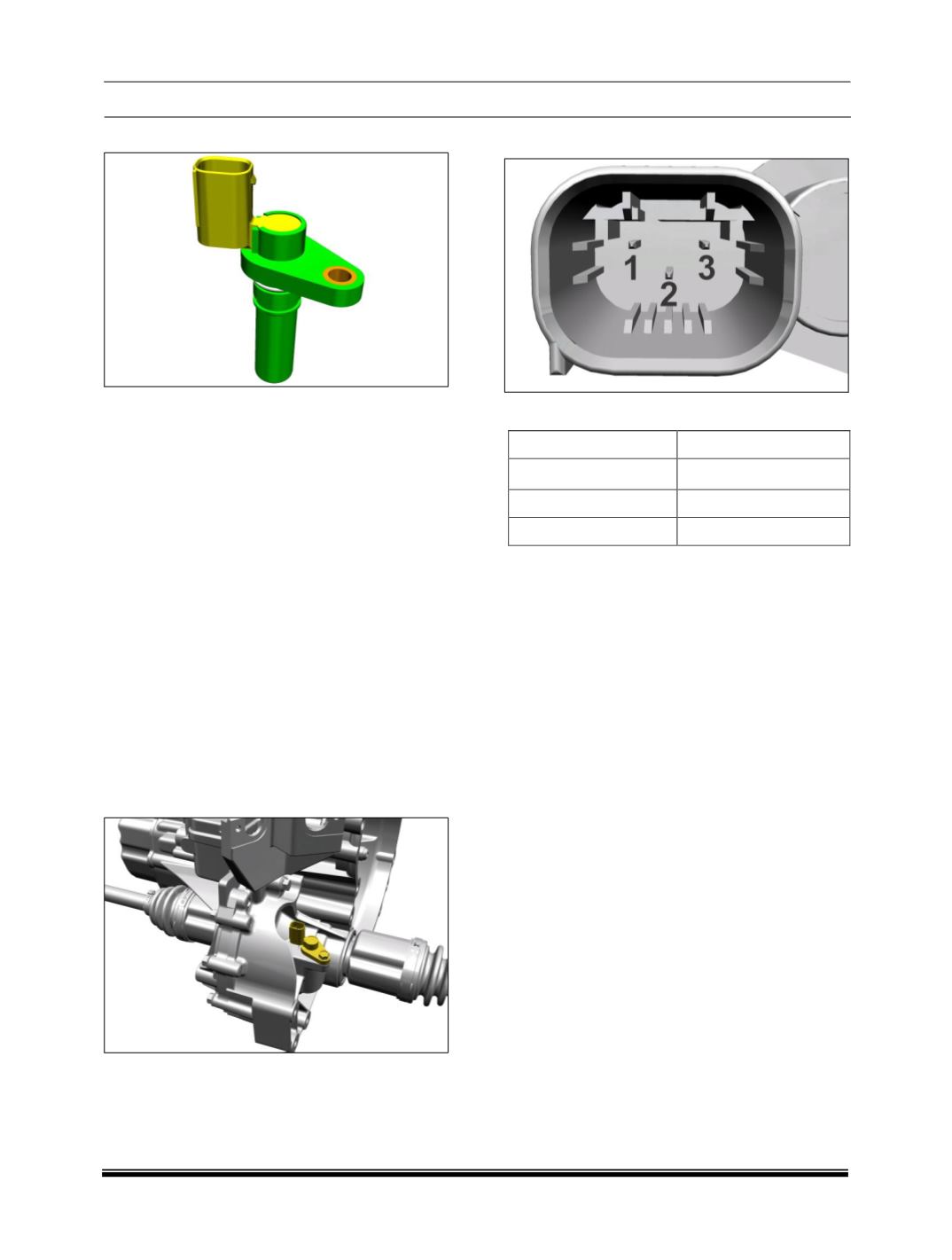

V. Vehicle Speed Sensor
Component Details :
This is Hall Effect Type sensor located on the
Transfer case / Gearbox based on the application
which gives vehicle speed information to the ECU.
It also helps the ECU in determining in which gear
the vehicle is driving and ensures smooth driving
at all gears.
Mechanical Properties
Operating temperature: - 30˚C to 125˚C
Operating temperature: - 40˚C to 150˚C
Weight of Component: - 50 gm
Electrical Properties
Operating Voltage: - 8V to 16V DC
Operating Current: - 5mA Max
Output Pulse Per Revolution
Number of teeth on sensing wheel: - 8 Nos
Gear thickness: - 6.0 mm
Component Location :
Connector View :
Connector Details:
Connector
Description
1
Supply (+ VE)
2
Output Signal
3
Ground (- VE)
