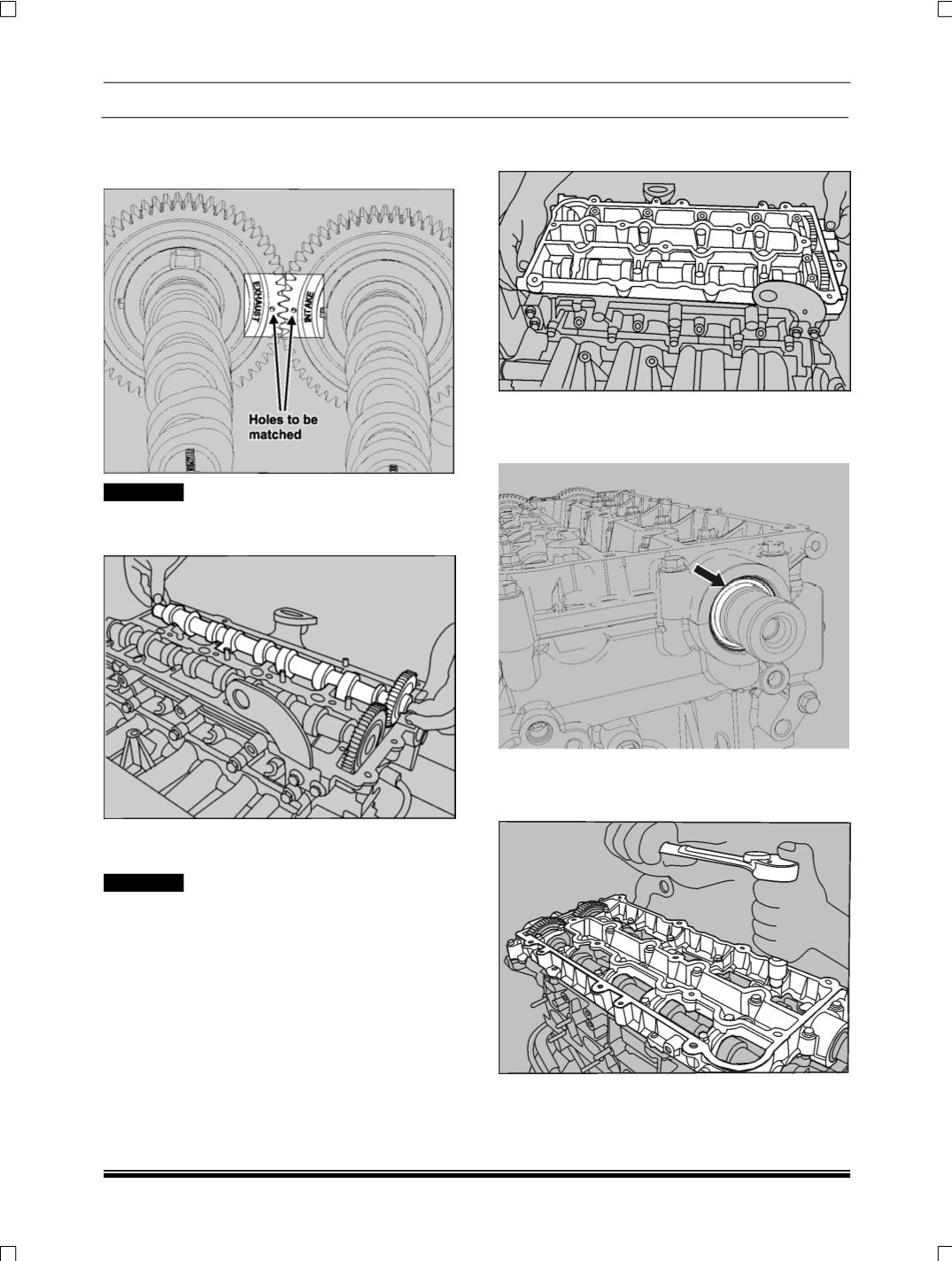

6. Assemble both intake and exhaust camshaft to

their respective places by matching the timing

marks on both the gears.

! CAUTION

Care should be taken such that the Camshafts

should not come in contact with the liquid gasket.

7. Apply LOCTITE 518- ANAEROBIC liquid gasket

on bearing frame.

! CAUTION

Care should be take that this liquid gasket should not

spill on the camshaft bearing area.

8. Now carefully assemble the bearing frame on

cylinder head.

9. Slightly tighten all the mounting bolts of bearing

frame and assemble the camshaft oil seal using

the drift

(Part no. 2653 5890 06 03)

10.Tighten all the mounting bolts of the bearing

frame to a specified torque and sequence as

shown.
