TRANSAXLE
59
FITMENT:
For fitment follow the reverse order of the removal
procedure, using the Tool 2834 5890 25 01
(Clutch Mandrel) and tighten the M8 bolts to a
torque of 3.2 Kg m.
NOTE:
Do not mix clutch mounting bolts with
other fasteners. Do not use longer or shorter
screws. Longer screws may not tighten the clutch
at all. Shorter screws will not provide enough
threads to achieve desired tightening.
While tightening clutch mounting screws check
aligning mandrel for continuous free sliding to
ensure concentric installation of clutch disc which
will avoid trouble during installation of transaxle.
B.
CLUTCH
ACTUATION
MECHANISM
OVERHAUL:

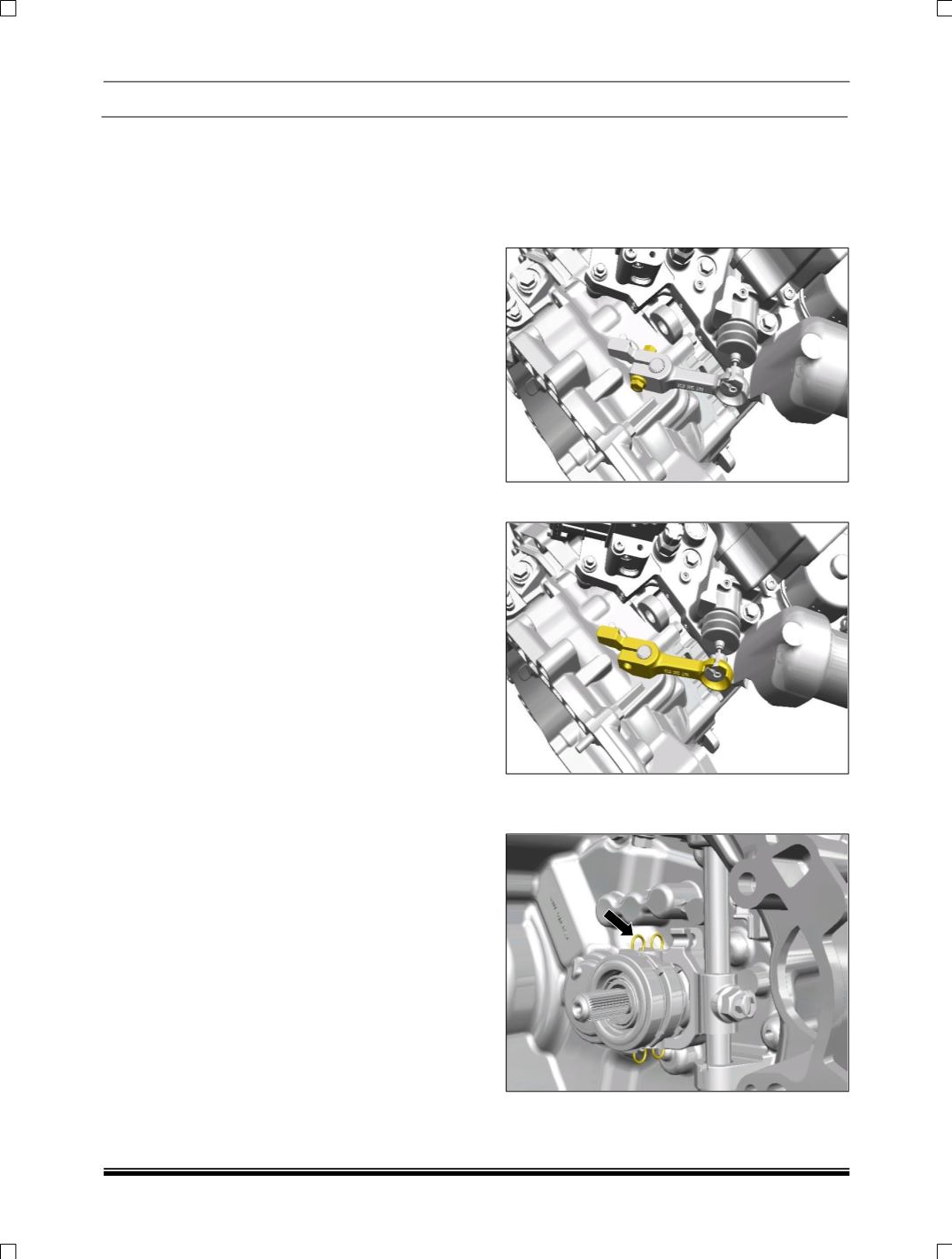

DISASSEMBLY:
1. Remove the hexagonal nut & bolt to loosen
clutch release lever.
2. Now take out the clutch release lever.
3. Disconnect the clutch release bearing by
releasing the locking clip.
