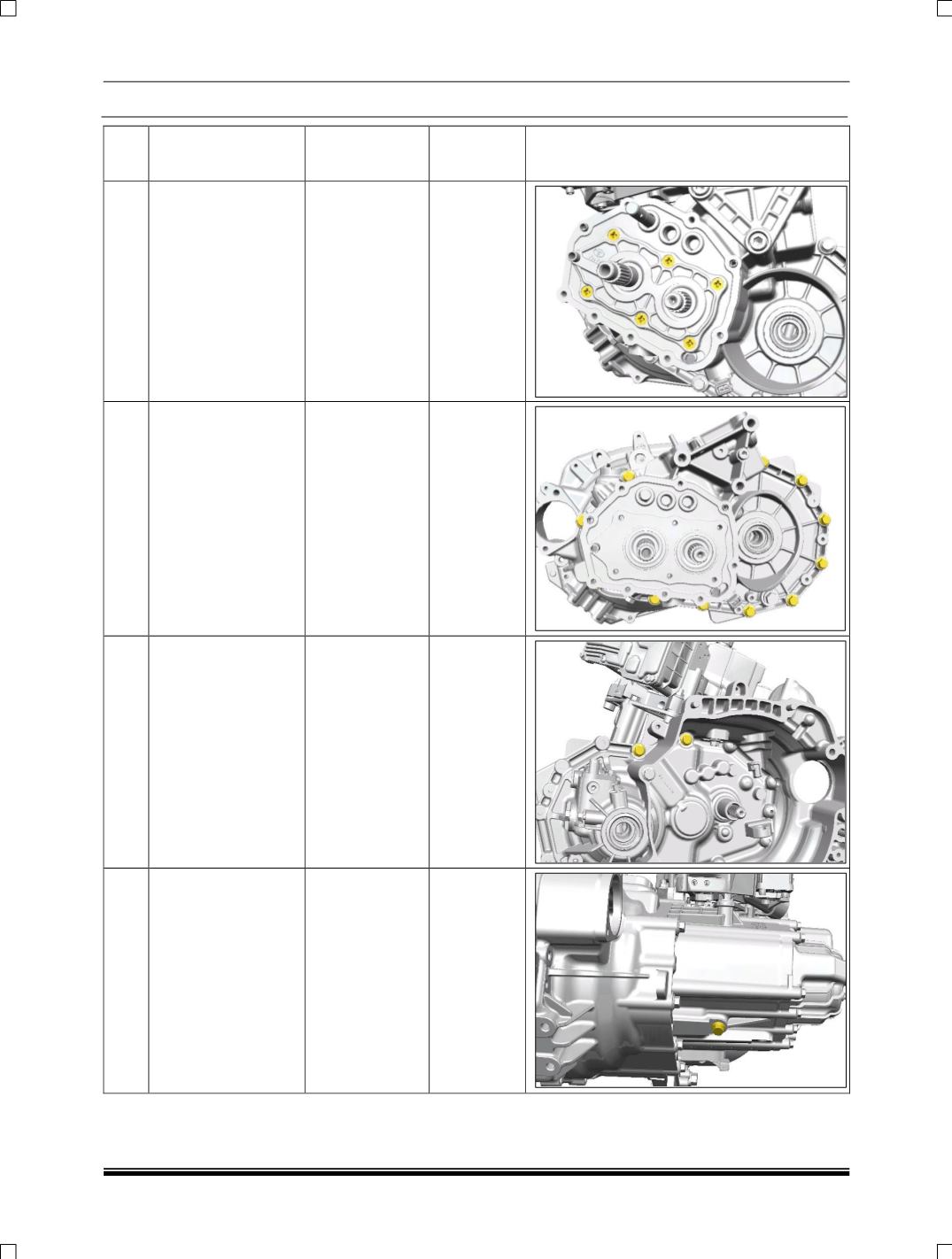

TRANSAXLE (NANO AMT)
65
SL
NO
DESCRIPTION
FASTNER
TYPE / QTY
TORQUE
(Kg-m)
LOCATION
5
Bearing
retainer
plate
fastening
screw
M6 screws
(6 Nos.)
0.9 - 1
6
Front half to rear
half fastening (on
rear half)
M8 Bolts
(11 Nos.)
2.1 – 2.5
7
Front half to rear
half fastening (on
front half)
M8 Bolts
(2 Nos.)
2.1 – 2.5
8
Reverse Idler Bolt
M8 Bolt
(1 Nos.)
2.1 – 2.5
