TRANSAXLE
61
ASSEMBLY:
NOTE:
Use only “
MOLY KOTE P40
” grease and
avoid excessive application of grease.

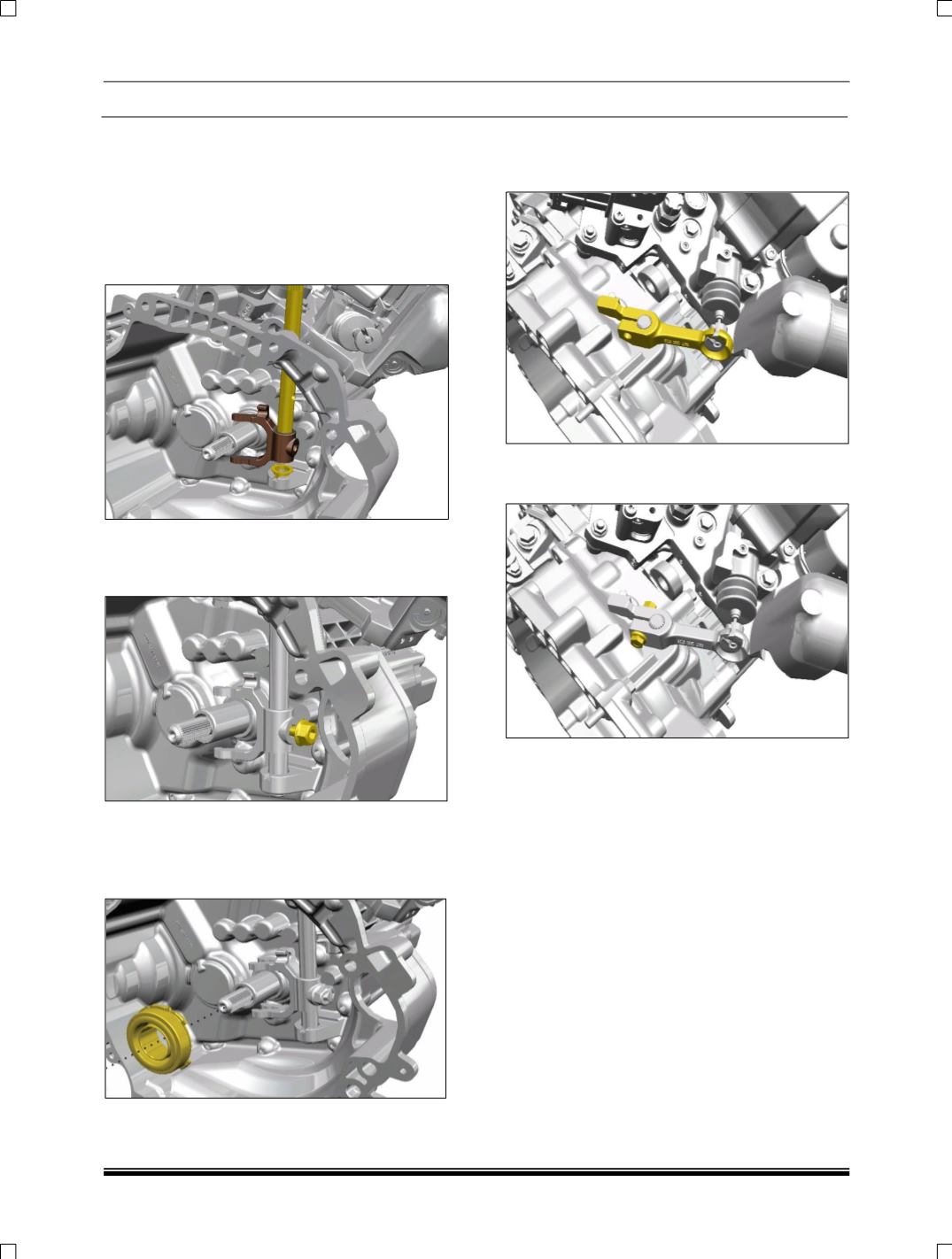

1. Insert the shaft from top bush and
simultaneously insert clutch release fork into
shaft with correct position (lug at bearing
side).
2. Tighten the fork on the shaft with hexagonal
flange bolt (M8X25) by tightening torque
4.1mkg.
3. Place the clutch release bearing on the guide
tube and smear some grease on it. Also apply
grease at the point of contact between the
bearing and the fork.
4. Place the clutch release lever on clutch
release shaft and checked the correct
position.
5. Insert the bolt into the clutch release lever hole
& insert the nut and then tighten the bolt.
