ENGINE COMPONENTS
29
11. Disconnect electrical connectors of number
plate light and take out rear bumper carefully.

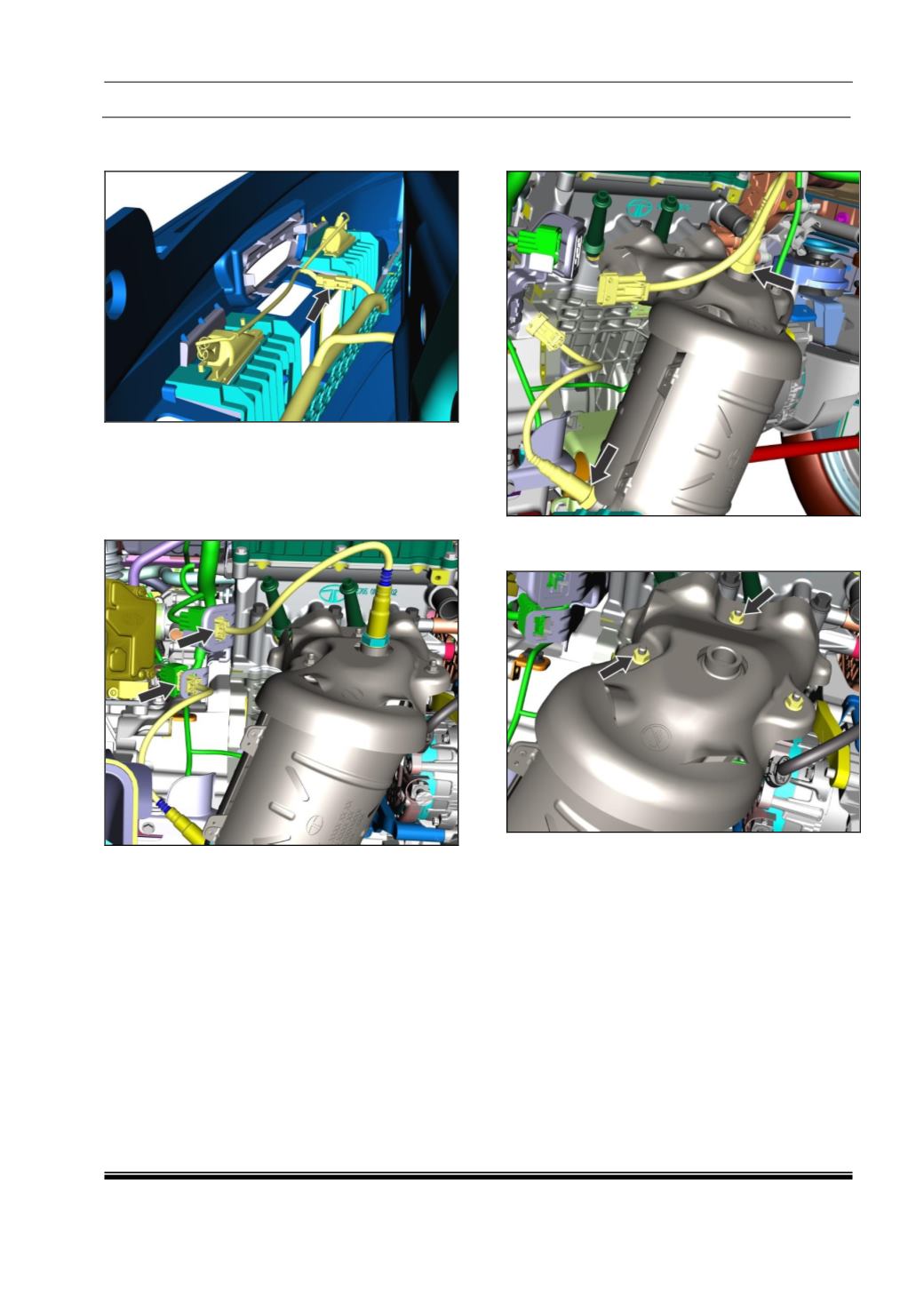

12. Remove exhaust fan assembly (Refer
Exhaust Fan Removal and Re-fitment on
Vehicle /Electrical Group).
13. Remove the wiring harness connectors of
both ‘Lambda Sensor’ carefully.
14. Remove the both ‘Lambda Sensor’ carefully
by unscrewing them.
15. Remove the heat shield from exhaust
assembly by removing all three flange nuts.
