ENGINE COMPONENTS

27

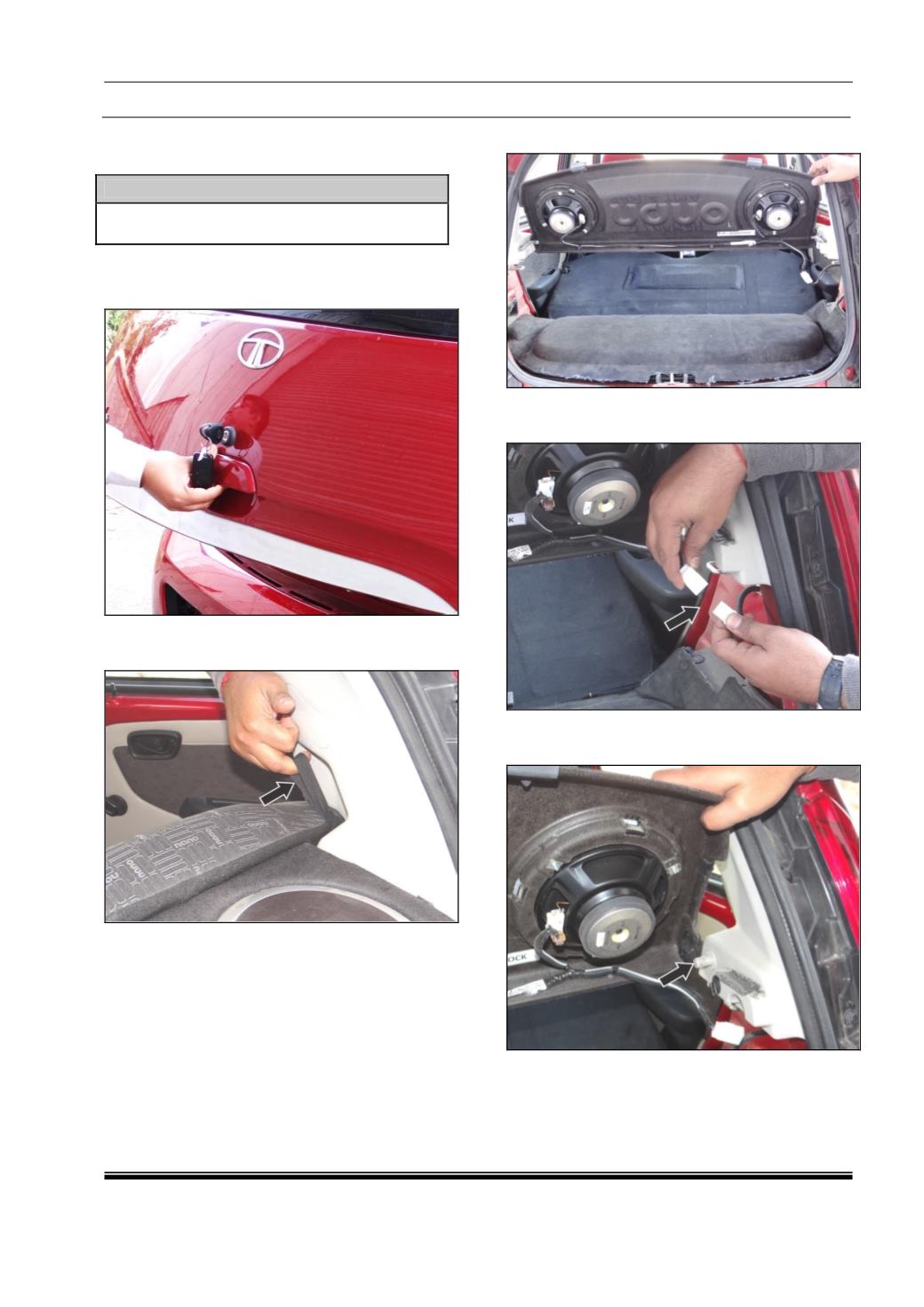

7.0. CATCON REMOVAL AND RE-

FITMENT PROCEDURES ON VEHICLE:

CAUTION

Allow engine and exhaust system to cool down

till ambient temperature

.

Removal:

1. Open the tail gate by vehicle key.

2. Pull the both side strip simultaneously

(located behind the rear seat) to fold the seat.

3. Open the parcel tray.

4. Disconnect the speaker wiring harness

connector.

5. Pull out the parcel tray from both side from

guide bush simultaneously.
