ELECTRONIC THROTTLE CONTROL

BODY ORIENTATION:

During ‘Electronic Throttle Body’ fitment throttle

shaft orientation and DC motor location to be

ensured to get assembly correctly as per below

points.

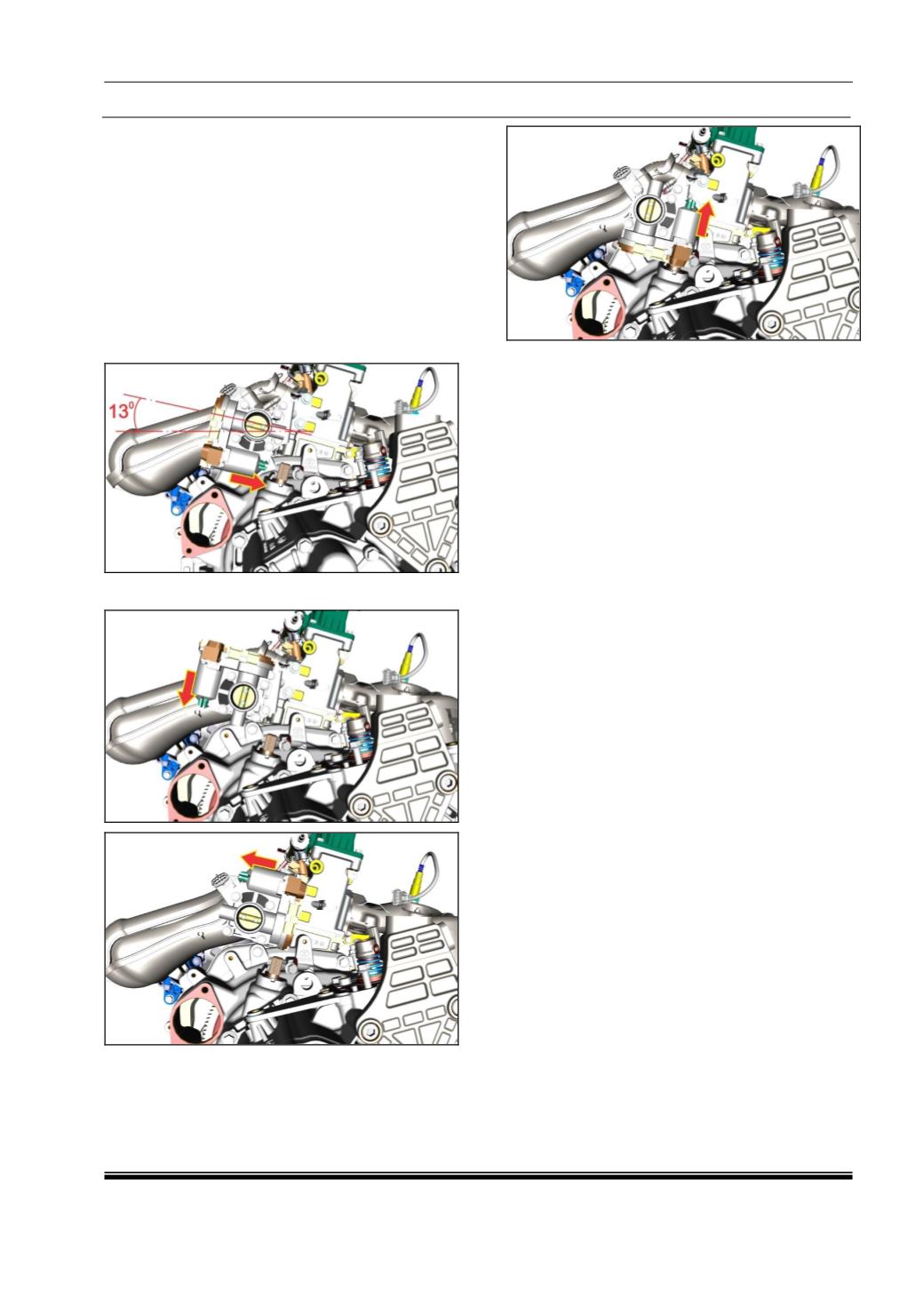

1. Orientation of throttle shaft should be ~ 13

(Degree).to horizontal in vehicle assembled

condition (Refer below figure).

2. DC motor should be towards the gear box

(Refer below figure).

The following orientations are not allowed.
