ELECTRICAL
613
ELECTRICAL

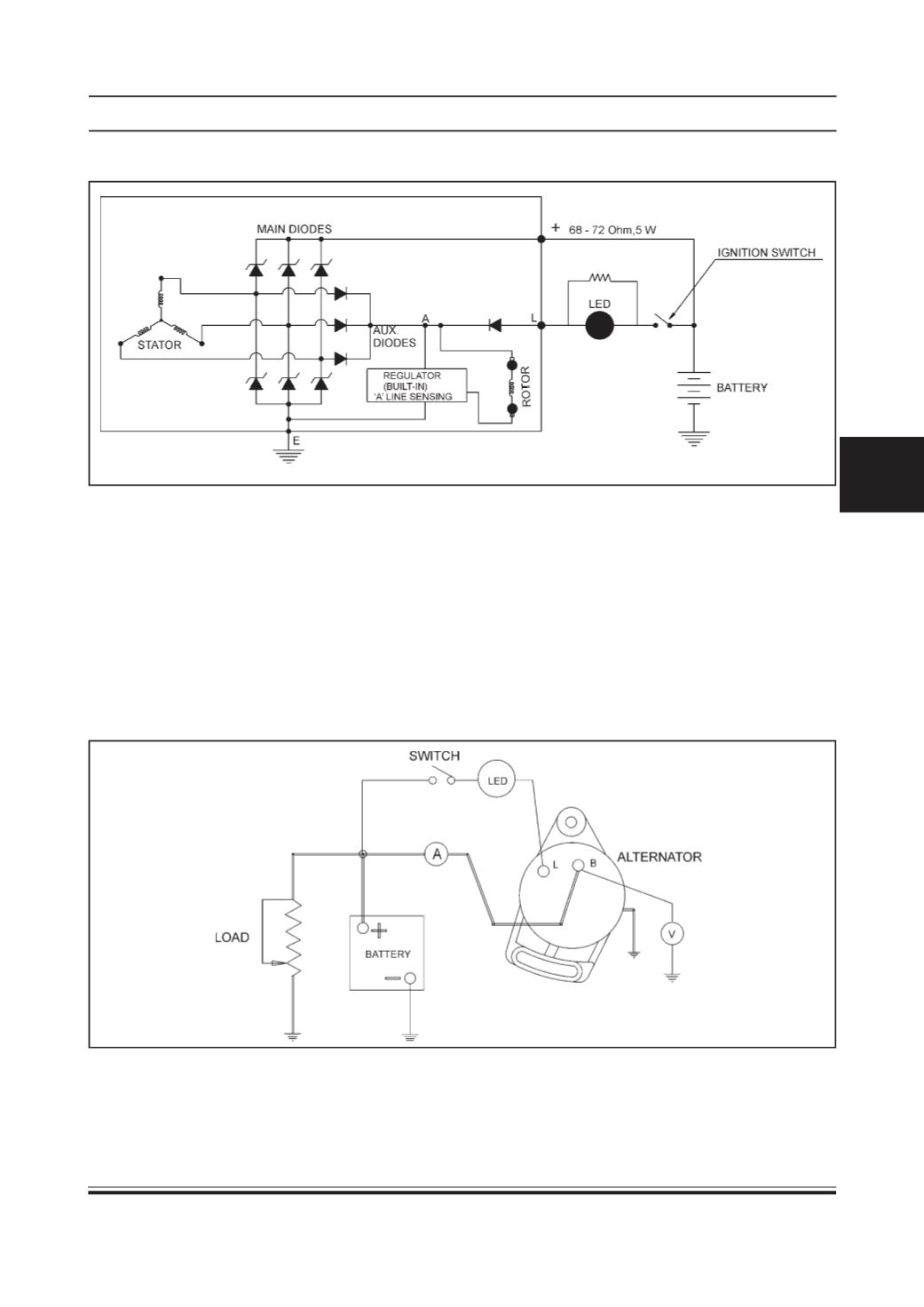

6. WIRING DIAGRAM FOR TESTING
7. SALIENT FEATURES
•
Star connected 3 phase output winding wound on a laminated stator.
•
12 pole wound field rotor, carried on ball-race bearings in aluminum end brackets and belt driven from engine.
•
Rectifier with large fins converts the generatedA.C. into D.C.
•
Built in hybrid regulator provides voltage control and diagnosis.
•
Less weight and compact in size.
•
The Alternator is cooled by means of two internal fans one each assembled on either side of rotor assembly.
8. CHECKING AFTER REASSEMBLY
