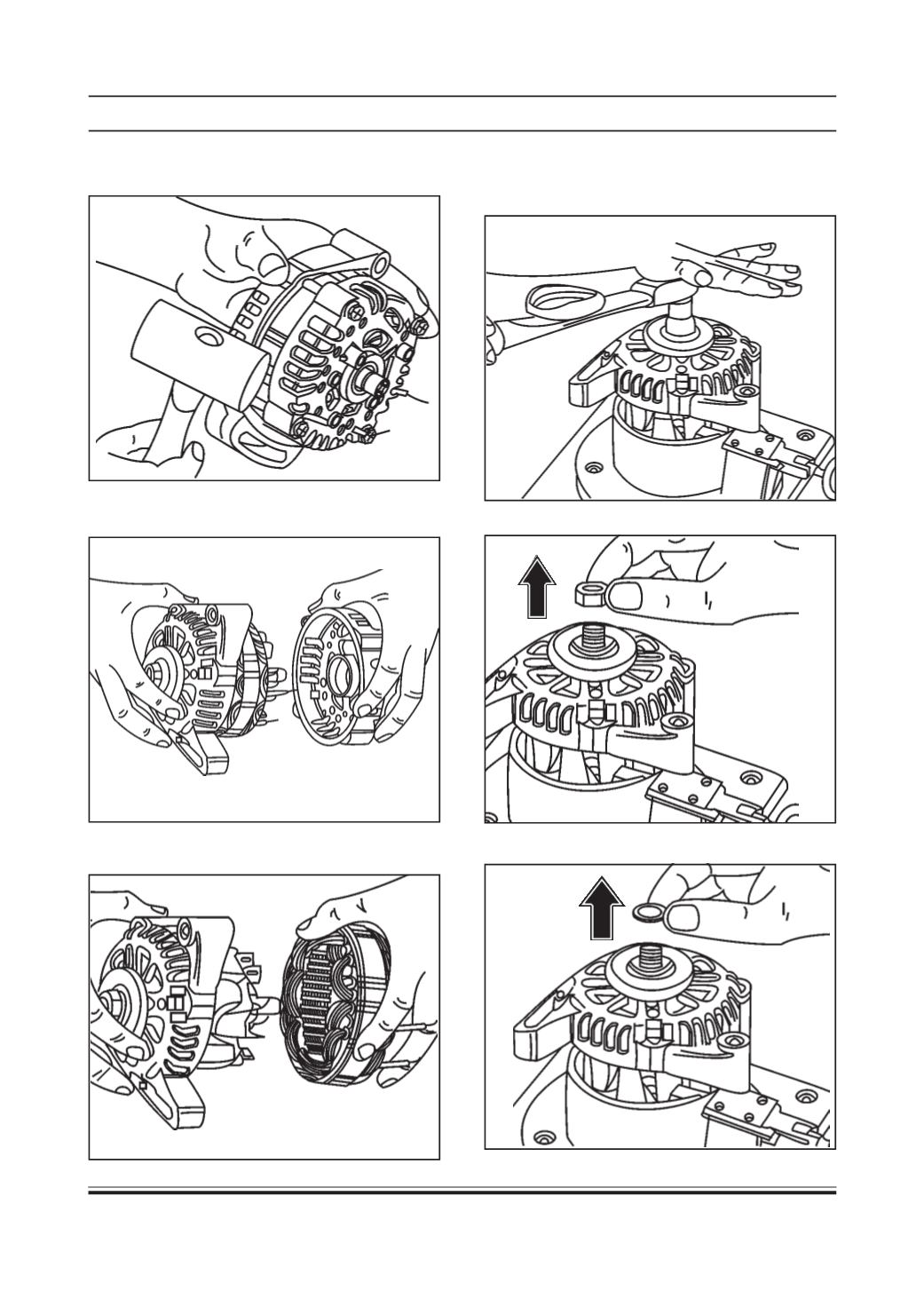

15) Remove the Plain washer from the Rotor assy.
10) Hold the DE Bracket assembly and use a wooden
mallet to remove the SRE Bracket assy.
11) Separate the DE Bracket assembly with Stator
winding assembly from the unit.
12) Remove the Stator winding assembly from the
unit.
13) Clamp the rotor assembly in a soft jaw and
unscrew the pulley nut. (Take care of rotor claws
from getting damaged).
14) Remove the Nut.
