ELECTRICAL

615

ELECTRICAL

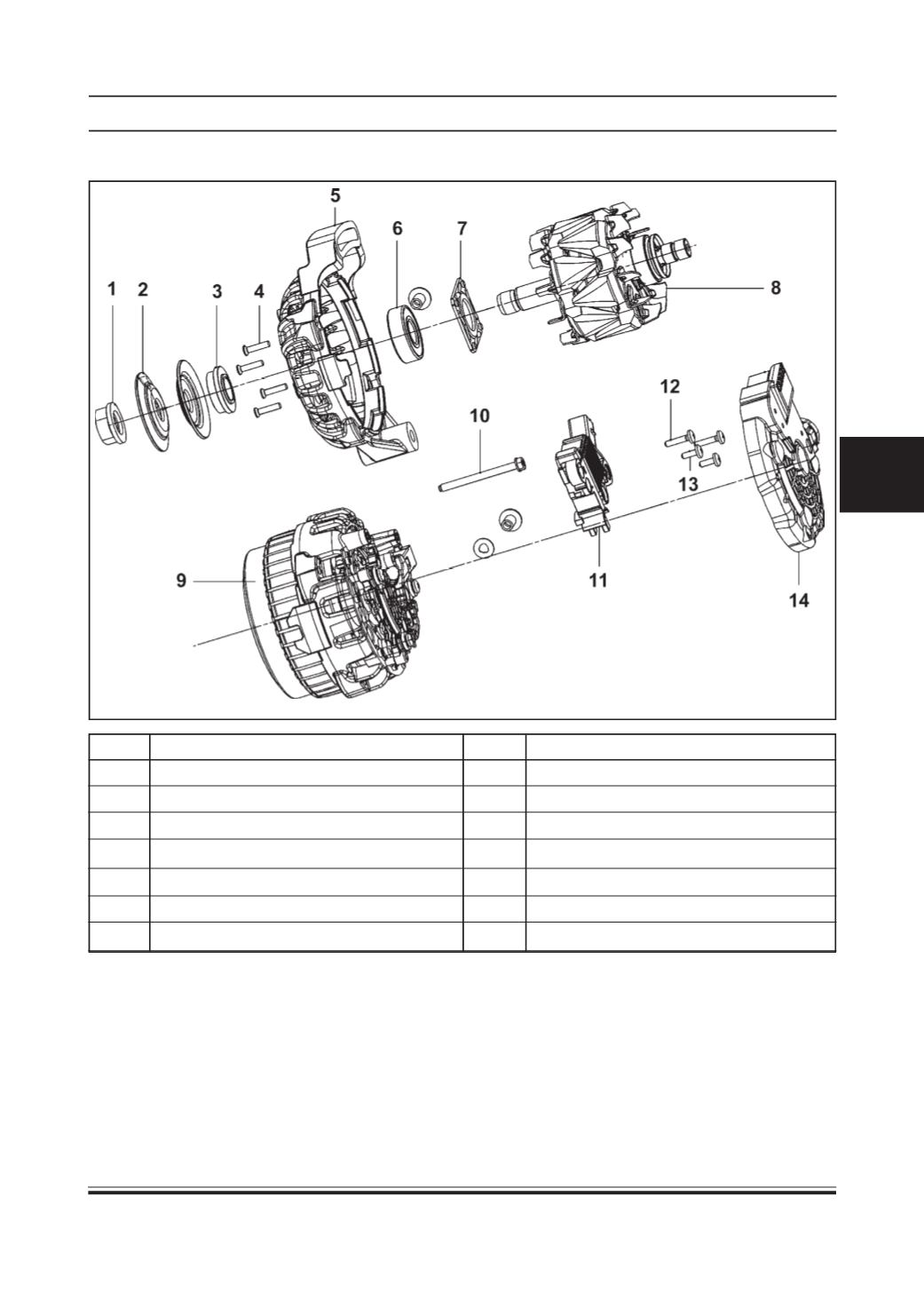

10. EXPLODED VIEW

DESCRIPTION

8.

ROTOR

9.

RECTIFIER

10.

HEXAGONAL SCREW

11.

REGULATOR

12.

OVER HEAD SCREW

13.

WASHER & SCREW ASSEMBLY

14.

PROTECTIVECAP

DESCRIPTION

1.

FLANGENUT

2.

SPLIT PULLEY

3.

SPACERRING

4.

COUNTERSUNK HEAD SCREW

5.

DRIVE END SHIELD

6.

BALL BEARING

7.

COVER PLATE
