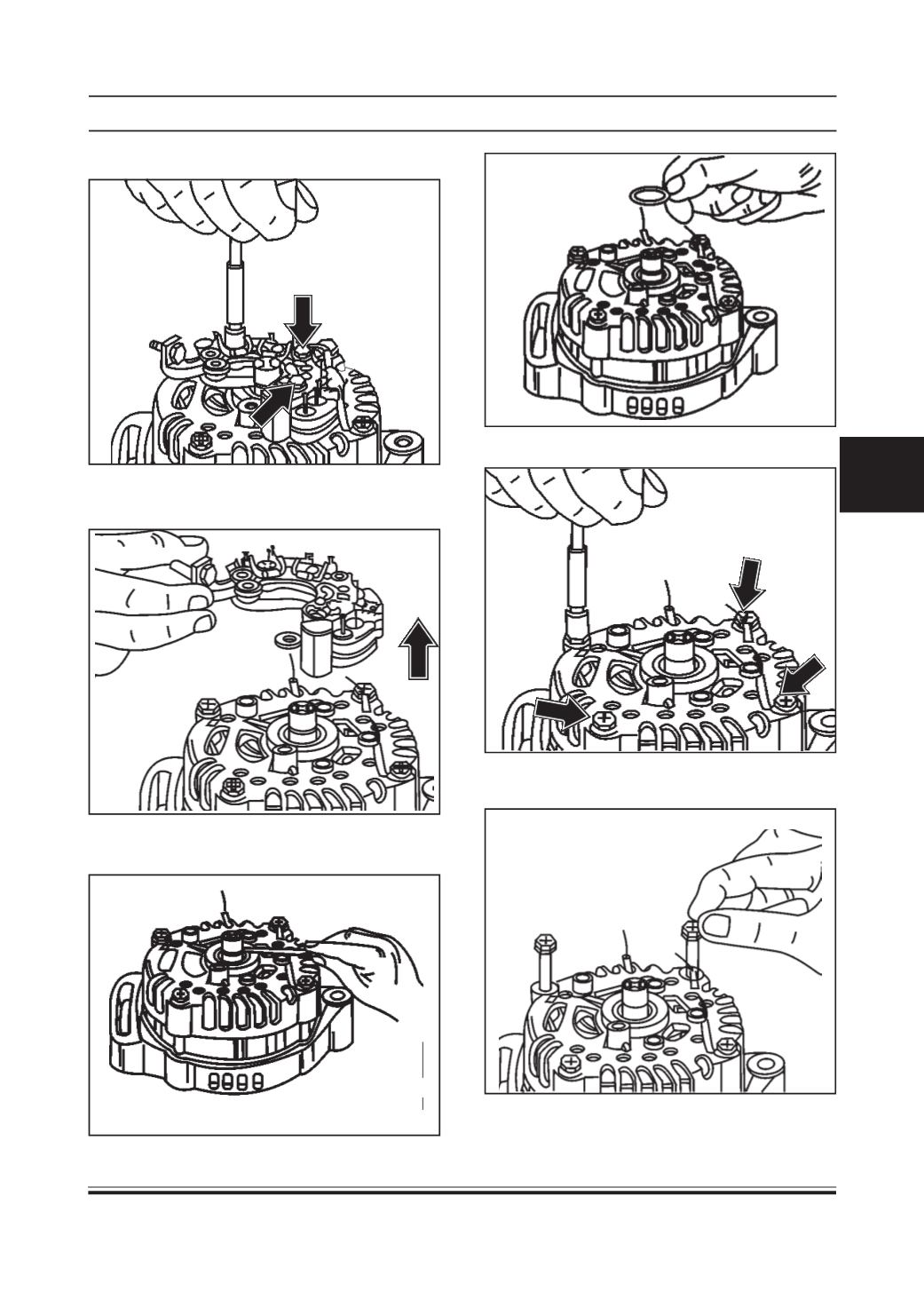

8) Unscrew the Through bolt from the SRE Bracket

5) Unscrew the 3 nos. Rectifier assembly screw.

6) Remove and separate theRectifier assembly from

the SRE bracket.

7) Remove the Rubber seal from the SRE Bracket

assembly.

9) Remove the 4 nos. Through bolt from the SRE

Bracket assembly
