STEERING
18

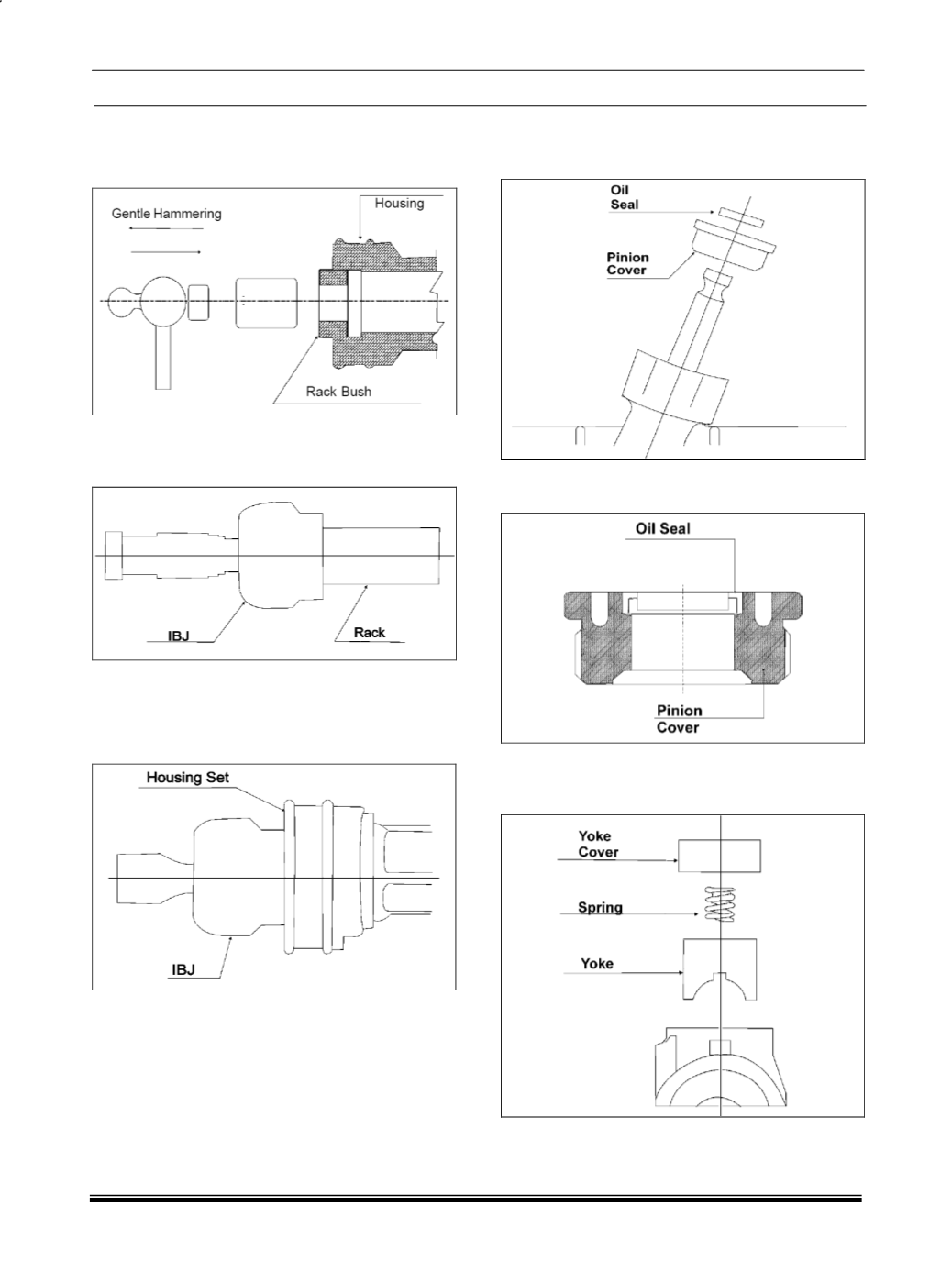

1.3.3.3 ASSEMBLY OF RACK & PINON
1. Assemble the Rack bush (02) and Apply sterak
grease on the bush inner diameter.
2. Assemble the IBJs on one side. During assembly,
apply loctite 542 (or any thread sealant) and tighten
the IBJs to the required torque.
3. Smear the Shell sterak grease on rack on outer
diameter and on the tooth root and surfaces.
4. Insert the Rack with IBJ into the Housing set via
Housing.
5. Assemble the Inner ball joint to the outer end of
Rack and secure it against Rack to specified
torque. Follow the same procedure to tighten IBJ
as mentioned in step 2.
6. Pull the Rack together with IBJ against inner face
of housing. Apply 20g of Sterak grease into case
steering gear. Insert Pinion bearing sub assembly
with the Rack held as mentioned above.
7. Apply few drops of Loctite 542 on Pinion cover
thread and assemble the Pinion cover (14) tospec-
ified torque (8 - 10 kg-m).
8. Apply Molykote grease onOil seal (12) and Pressit
into the groove of Pinion Cover (11).
9. Turn theHousing in such a way that the Yoke Bore
is upright and assemble the yoke (08) and spring
(09).
