NANO VOLUME 1 & 2

STEERING

CAUTION:

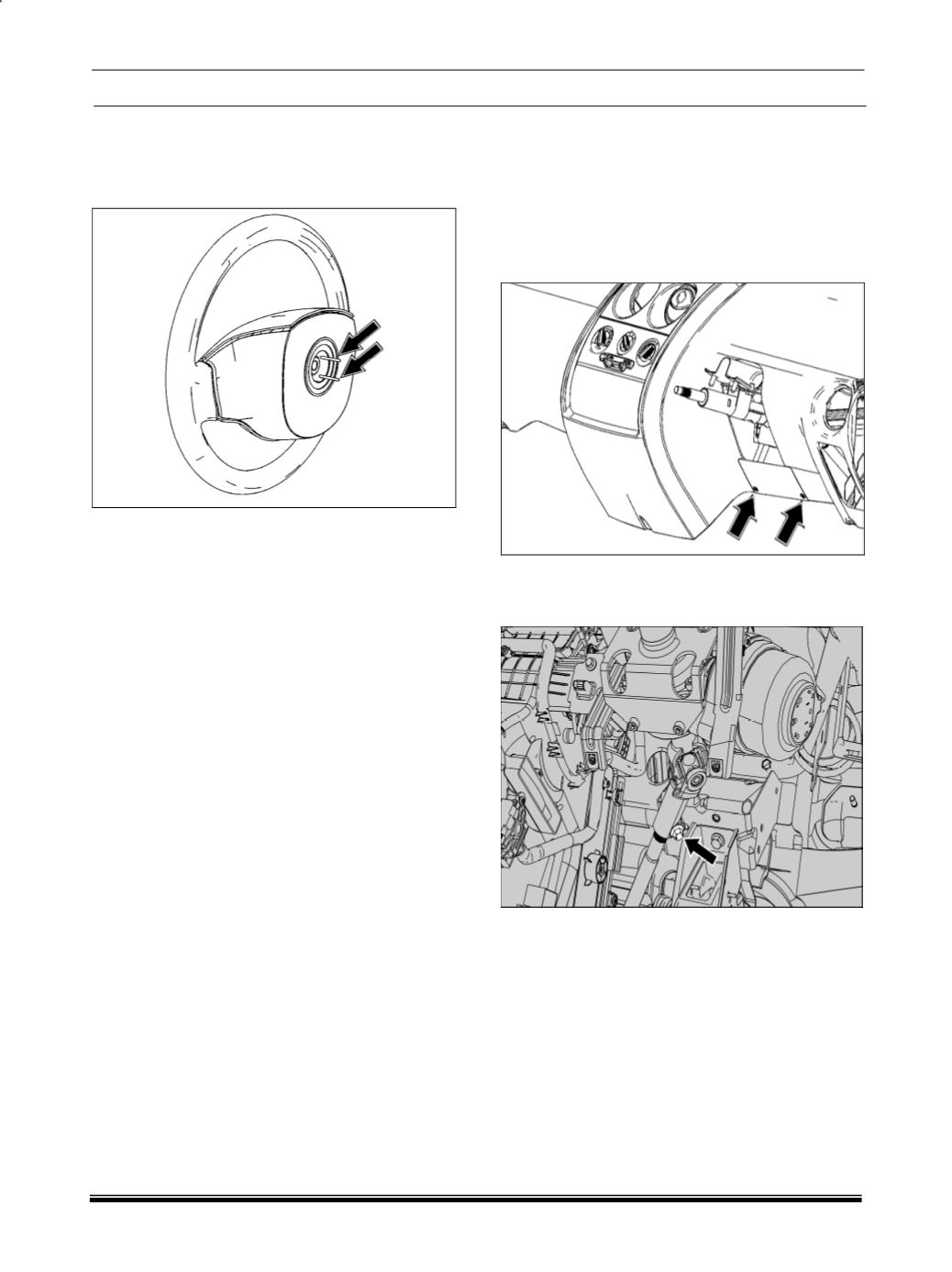

Care should be taken such that self cancellation lugs

do not get damaged (self cancellation lugs are shown

in below figurewith arrows).

INSPECTION:

Check for any damage to self cancellation lugs, if

found, replace complete steering wheel

INSTALLATION:

1. Align the marks made on the steering wheel and

the shaft. Install steering wheel on steering shaft

2. Tighten the steering wheel nut to the specified

torque.

Tightening torque (Steering wheel nut) = 4 -5 Kg-m

3. Fit horn pad (Press fit type).

4. Connect battery.

1.2.3.2 STEERING COLUMN REMOVAL

1. Disconnect the connection of battery.

2. Remove steering wheel (

Refer Steering wheel

removal procedure).

3. Remove combi switch assembly (

Refer Electrical

section

)

4. Remove two screw of nacelle bottom cover.

5. Loosen the universal joint bolt ((intermediate

shaft side) between steering column & intermedi-

ate shaft.
