NANO

TRANSAXLE-AMT

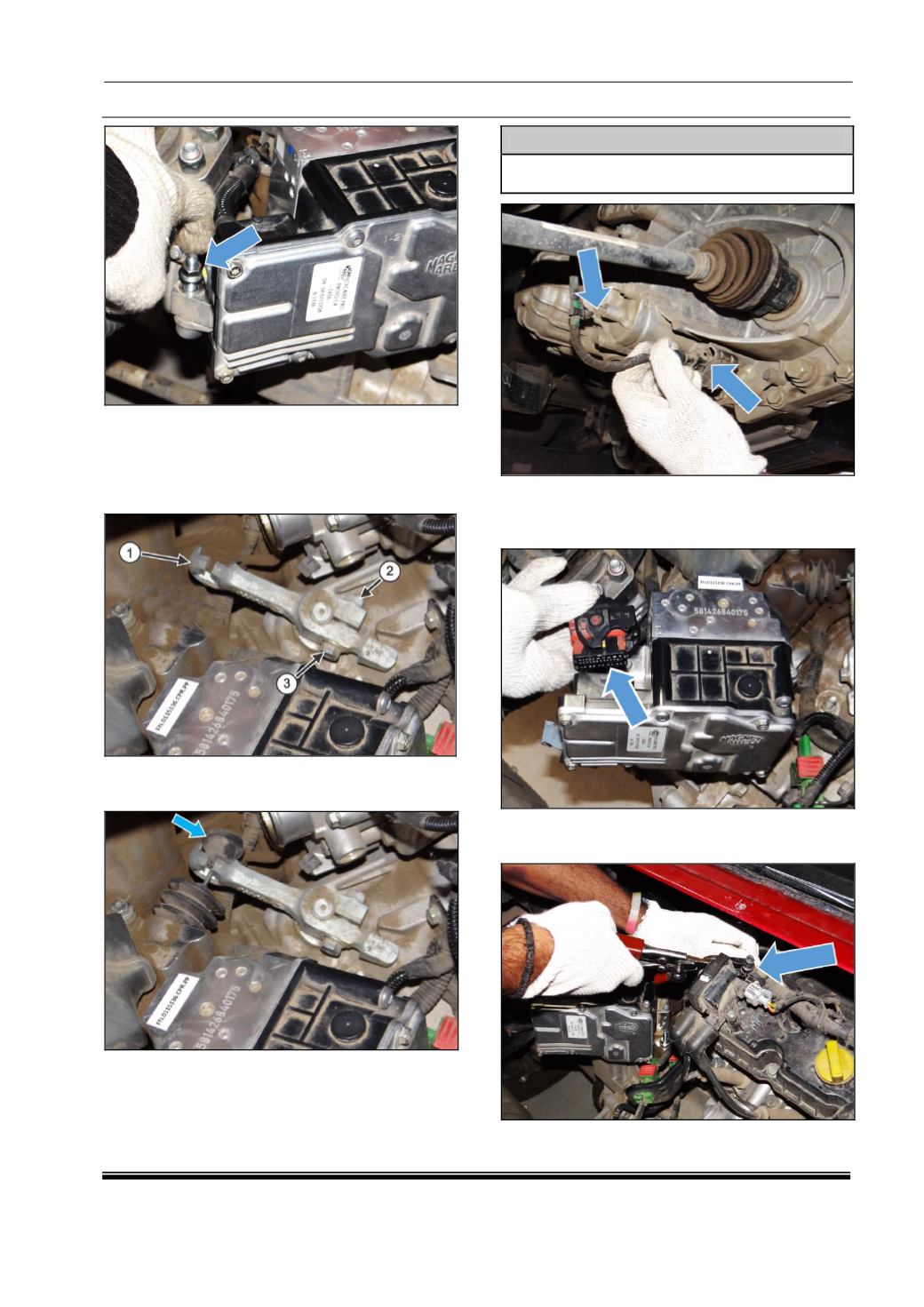

5. Assemble the clutch release lever (1) on the

clutch release shaft splines and push it axially

till stopper is reached insert the bolt (2) into

clutch lever hole, fit nut (3) with it and tighten

the bolt as per specified torque. (23 Nm).

6. Assemble the clutch lever interface with clutch

release lever.

7. Make proper routing of wiring harness clamp

and connect the ‘Transmission Input Speed

Sensor’ female connector carefully.

NOTE

Do not forget to secure the female connector

using the clip provided for the purpose.

8. Connect the ‘Transmission Control Unit’ (TCU)

and ‘Electronic Throttle Control (ETC) ' wiring

harness connectors carefully.

9. Clamp the cylinder head vaccum hose using

plier properly.
