NANO

364

DRIVETRAIN

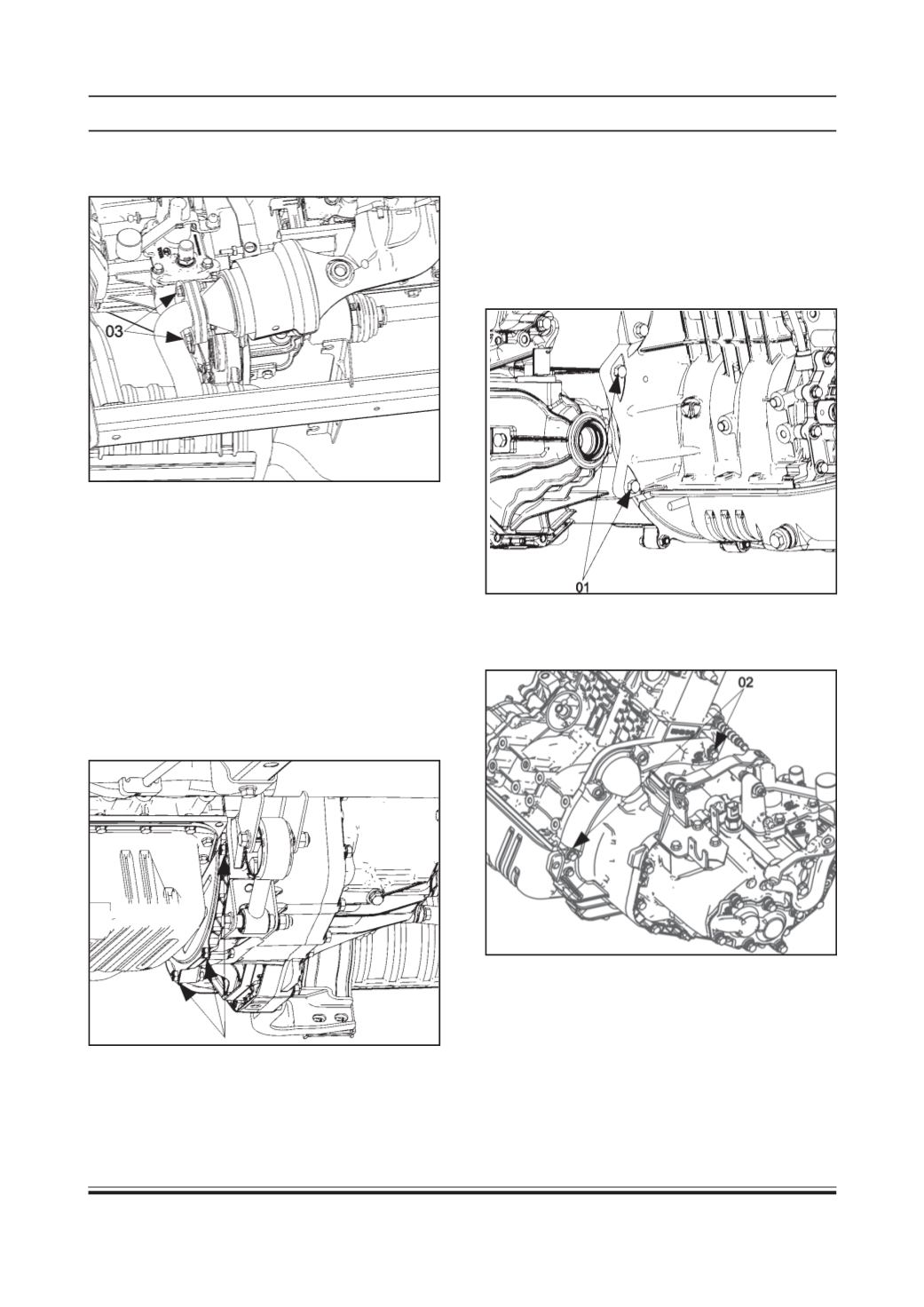

15.Loosen and remove the bolts (02) holding the

transaxle housing to engine housing from transaxle

side.

7. Loosen the bolts (03) and remove the exhaust

silencer.

8. Disengage the clutch cable at the transaxle end

and free it from the transaxle. For procedure refer

‘Clutch cable removal’.

9. Disengage the gear shifter cables from the

Transaxle and remove them from the cable anchor

plate. For procedure refer ‘Gear shifter cable

removal’.

12.Remove the LH driveshaft completely and

disconnect the RH driveshaft from the transaxle

end. For procedure refer ‘Drive Shaft removal’.

13.Support the engine.

14.Loosen and remove the bolts (01) holding the

transaxle housing to engine housing from engine

side.

10.Remove the LH semi-trailing arm along with shock

absorber and coil spring. For procedure refer ‘Semi-

Trailing arm, Shock absorber and Coil Spring

Removal’ – Suspension Group’.

11. Loosen the three bolts of the back cover and

remove the back cover.
