NANO

DRIVETRAIN

367

DRIVETRAIN

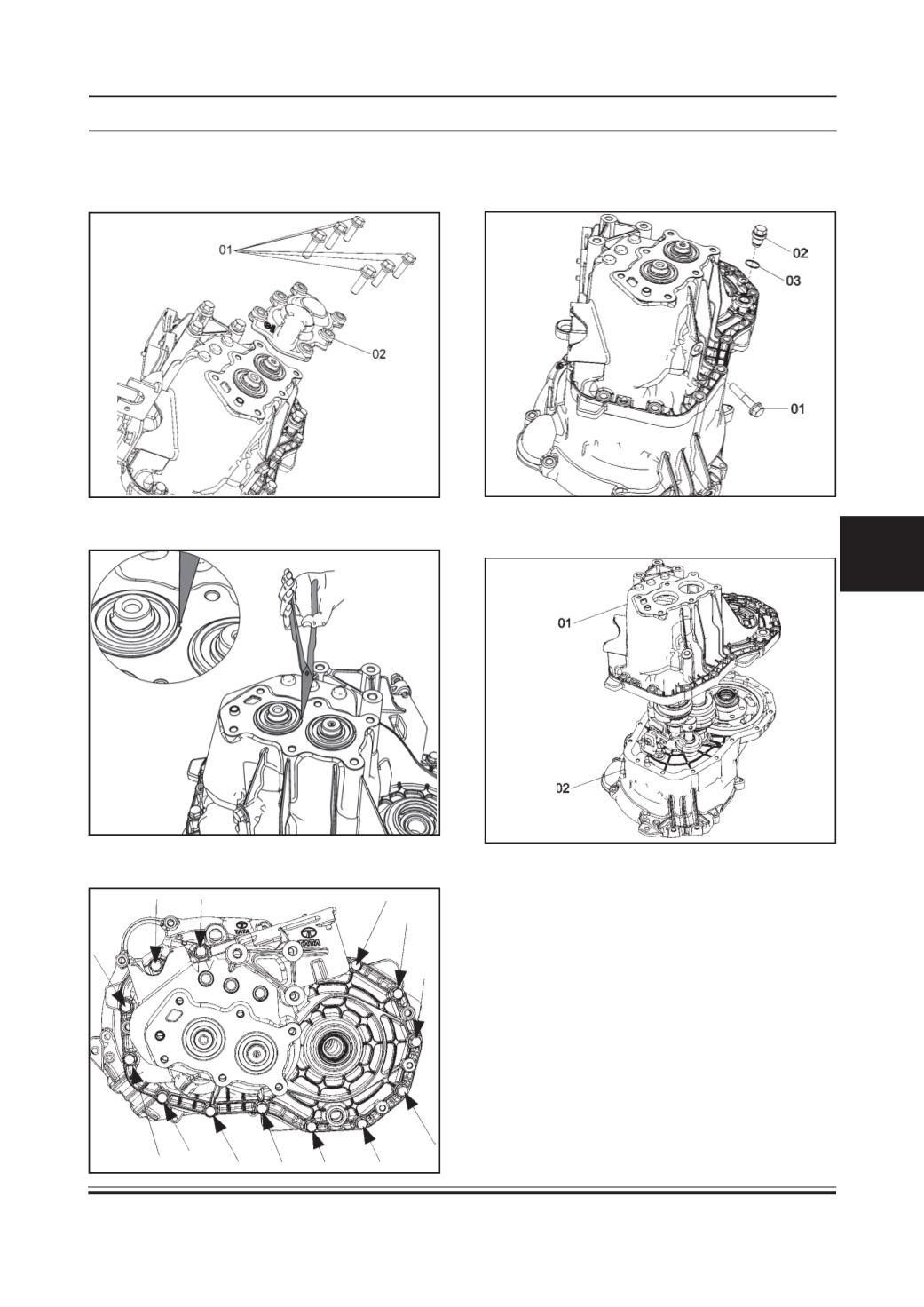

8. Rest the transaxle assembly on the Front half

and remove the rear cover by unscrewing the six

M8 Bolts (01) and remove the rear cover (02).

9. Remove the layshaft and input shaft circlip, using

a standard circlip plier.

10. Unscrew the 13 bolts on the rear half housing,

holding the front and rear half together.

11. Remove the Idler gear bolt (01) and the Magnetic

drain plug (02) and by unscrewing it. Remove the

washer (03).

12. Separate the rear half housing (01) from the front

half (02) by lifting the rear half.
