DRIVETRAIN

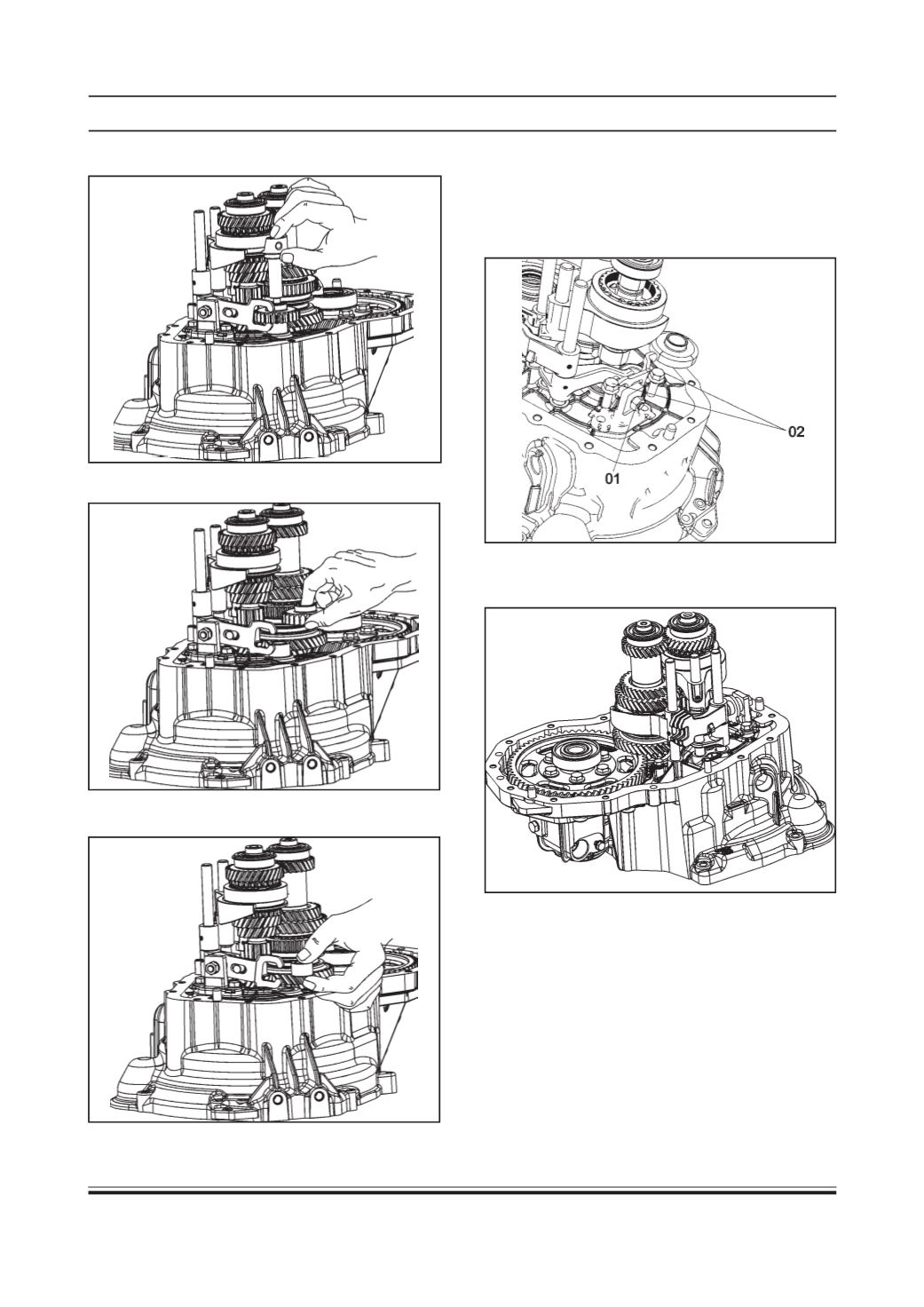

13. Remove the Reverse Idler Shaft.

14. Pull out the Reverse Idler gear.

15. Remove the Reverse Idler Spacer.

16. Remove the reverse idler bracket assembly by

loosening the pinion (1) and unscrewing the two

M8 bolts (2). For further dismantling of the bracket

refer ‘SHIFTER SHAFT AND SHIFTER FORK

ASSEMBLY’ OVERHAUL.

17. Lift the Input and layshaft assembly along with

the three Shifter Shafts.
