FRONT AXLE (4X4)
21
FRONT AXLE
(4X4)

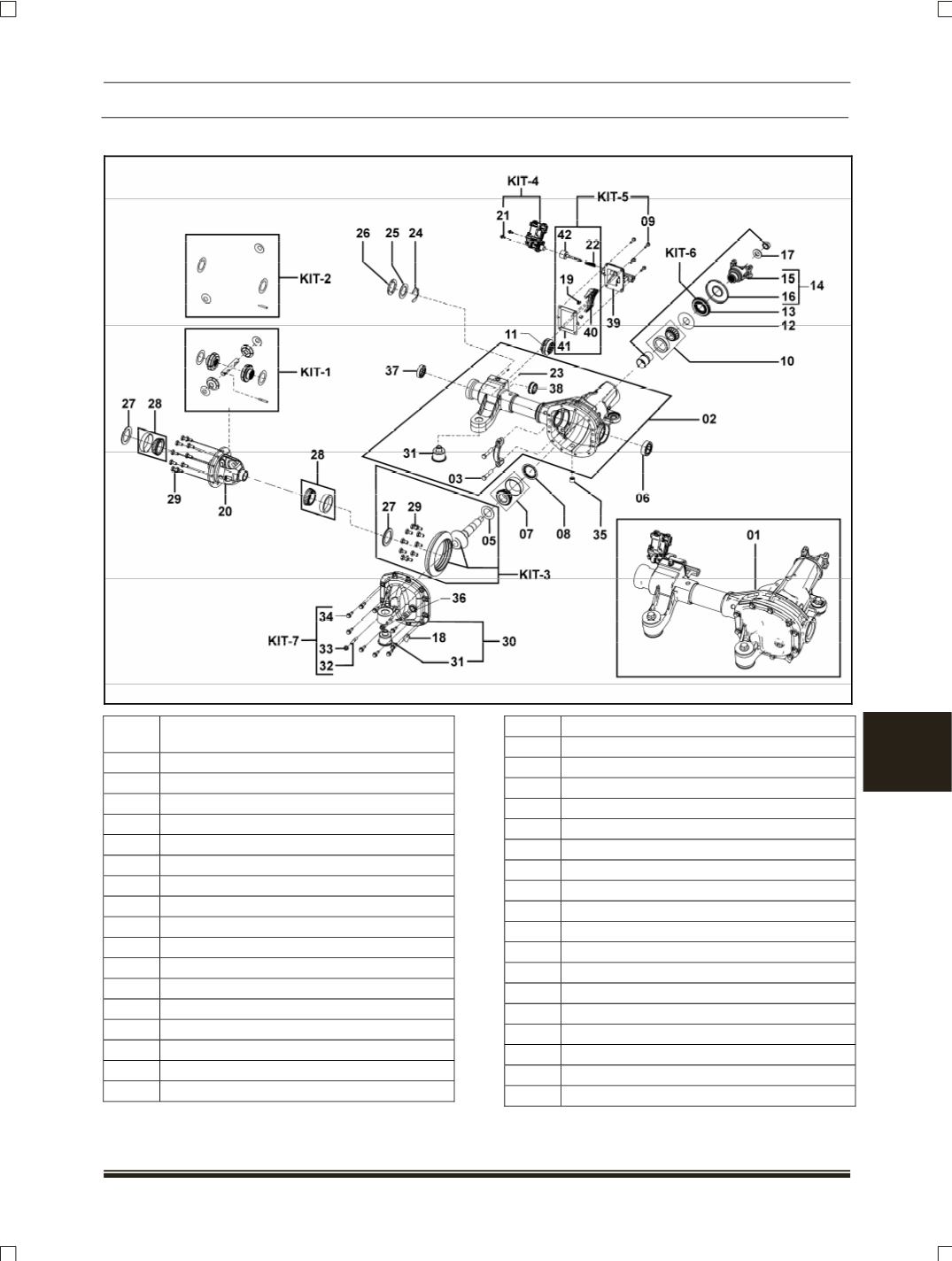

B. CENTRE SECTION WITH FRONT AXLE DISCONNECT
SR
NO. DESCRIPTION
01
Front axle sub assembly
02
Axle beam assembly
03
Bolt bearing cap
05
Shim adjustment
06
Carrier flange bearing
(Front)
07
Assembly bearing
.(Pinion inner
)
08
Baffle - pinion oil
09
Screw - flange head
10
Assembly bearing
(Pinion outer)
11
Collar - fin
12
Outer slinger pinion oil seal
13
Pinion oil seal
14
End yoke assembly
15
End yoke
16
Deflector - end yoke
17
Washer flat
18
Ratio tag
19
Pad shift fork
20
Differential case
21
Screw - flange head
22
Spring - compression
23
Pin - dowel
24
Snap ring
25
Washer - thrust
26
Washer - thrust
27
Spacer - bearing preload
28
Assembly bearing differential
29
Screw hex
(Crown wheel)
30
Cover assembly carrier
31
Assembly rubber bush
(Front axle mtg.)
32
Stud-dowel
33
Lock nut
34
Screw-flange head
35
Drain Plug
36
Filler plug
37
Bearing assembly
