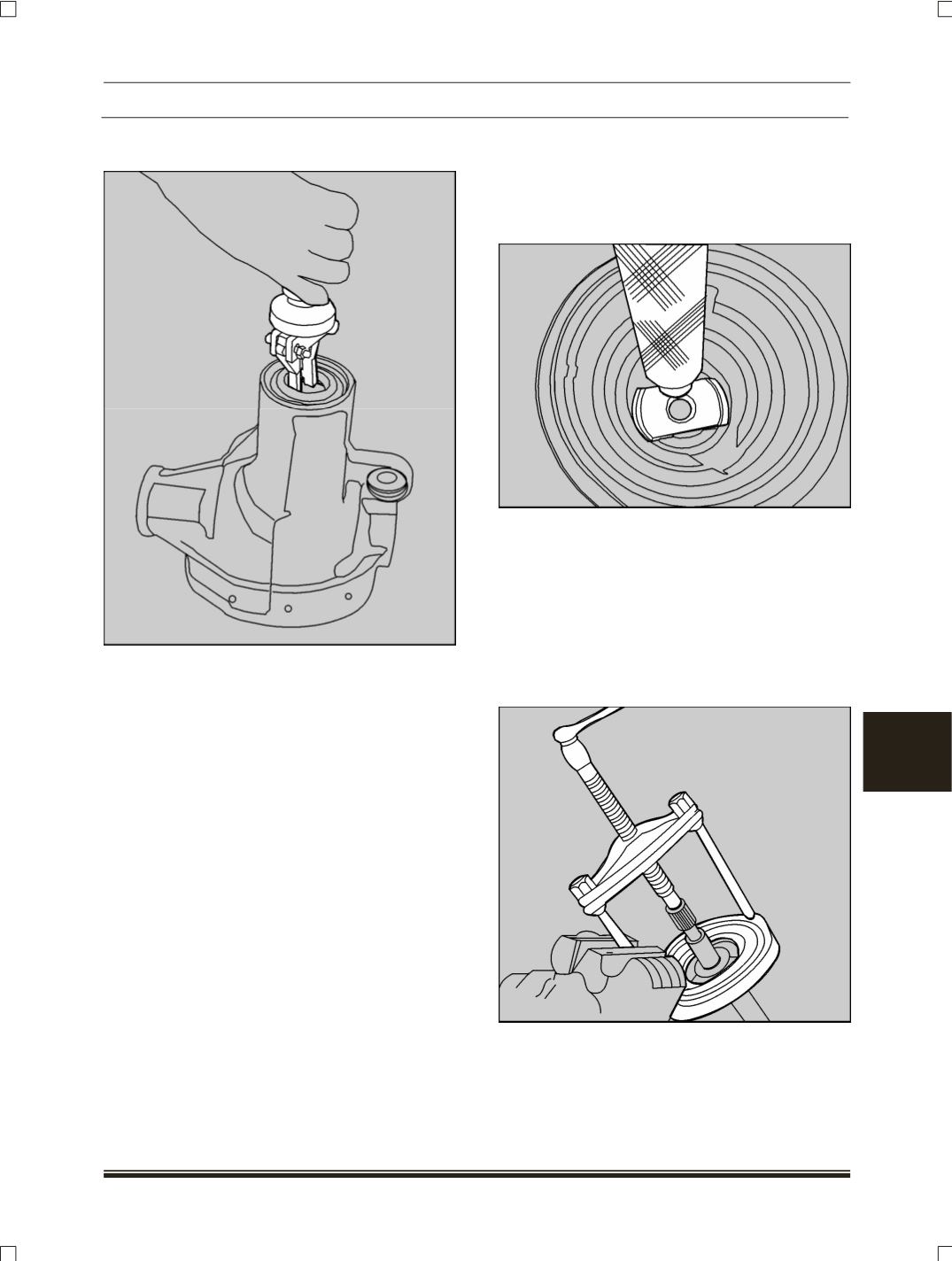

19.Pullout pinion oil seal with puller slide hammer.
(Part No.2894 5890 35 16)
NOTE
Discard the oil seal once removed and use new at
the time of assembly.
20.Remove bearing cone and outer thrust washer.
Turn nose of carrier down. Remove outer pinion
bearing cup using tools given below.
A. Remover outer pinion bearing cup along with baf-
fle
(Part No. 2704 5890 33 10)
B. Handle
(Part No.2894 5890 35 01)
21.Turn nose of carrier up and remove inner pinion
bearing cup using tools given below.
Remover for inner pinion bearing cup.
(Part No.
2704 5890 33 15 )
Handle
(Part No. 2894 5890 35 01)
NOTE
Pinion depth shim is located between inner pinion
bearing cone and pinion gear
.
22.Remove inner pinion bearing using special tool
given below.
Press
(Part No.289458903519)
Adapter inner pinion bearing cone (
Part No.
2704 5890 33 23)
23.Remove the bearing from carrier flange using
puller.
(Part No. 2870 5890 33 05)
