FRONT AXLE (4X4)
20
4.5.2.3 OVERHAULING
4.5.2.3.1 PRECAUTIONS
1. Do not reuse the oil seal.
2. Do not reuse ring gear bolts.
3. Use only genuine equipment for replacement of a
part to avoid unit failure and vehicle safety.
4. Do not mix the new gears with the old gears as
this may results in uneven wear and short gear
life.
5. Use of special tools is necessary wherever speci-
fied.
4.5.2.3.2 CONSTRUCTIONAL DETAILS

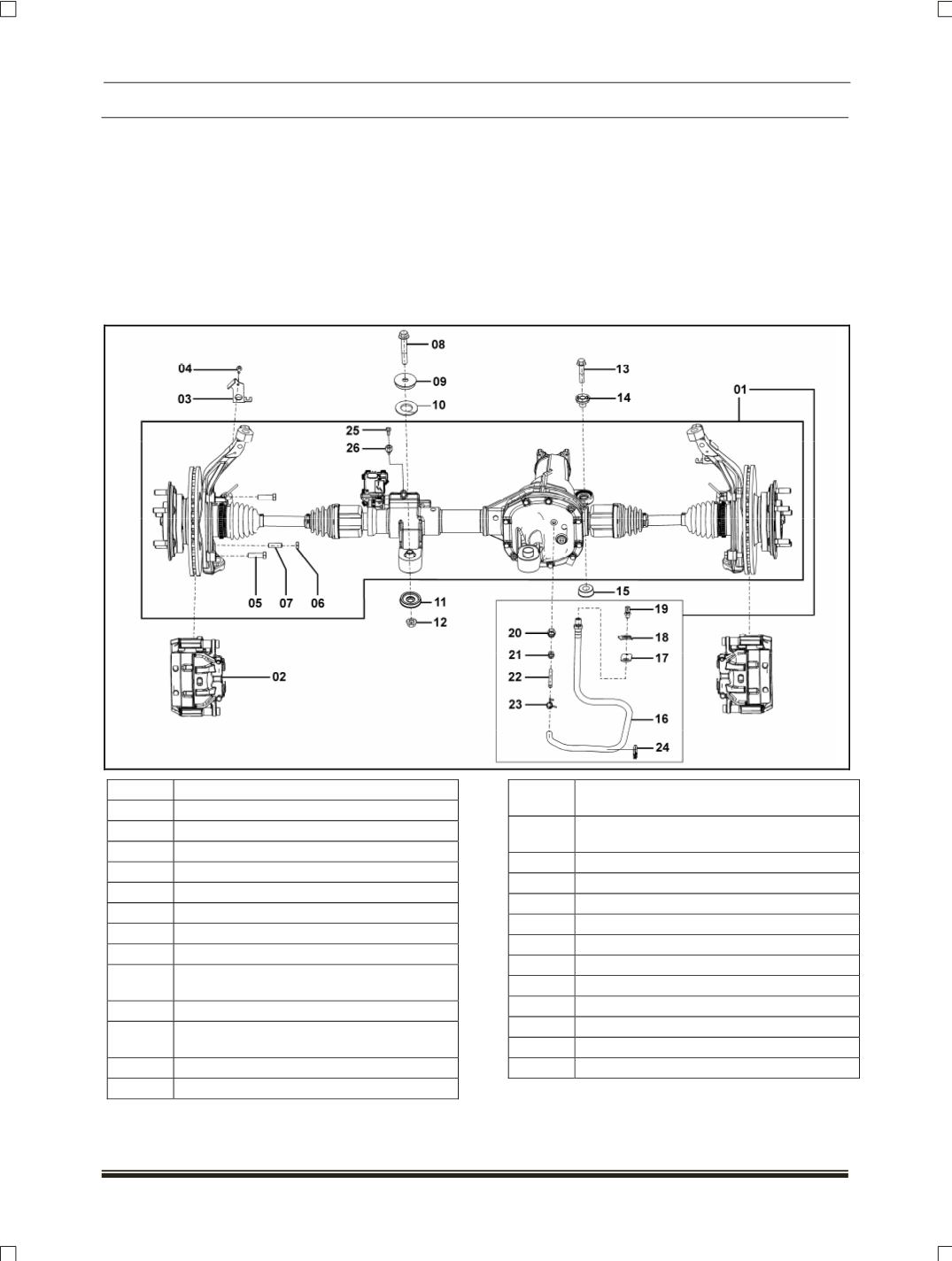

A. FRONT AXLE ASSEMBLY
SR. NO
DESCRIPTION
01
Assembly front axle
02
C48X48 front caliper
03
Bracket for hose mounting on stub axle
04
Hexagonal flange screw M6X20
05
Flange screw M12X1.25X42
06
Hexagonal thin nut M12X1.5
07
Wheel stopper bolt
(Lower wishbone)
08
Flange bolt M14X1.5X85
09
Assembly rubber bush top
(Axle
mounting)
10
Spacer
(Front axle mounting)
11
Assembly rubber bush-lower
(Axle front
mounting)
12
Hexagonal flange nut AM14X1.5
13
Flange bolt M12X1.5X60
14
Assembly bush upper
(Axle mounting
on frame)
15
Assembly bush lower
(Axle mounting
on frame)
16
Rubber hose
17
Remote breather mounting bracket
18
Holder brake hose
19
Breather M10X1
20
Adaptor
21
Coupling nut
(M18X1.5X26)
22
Tube
23
Spring band clamp 16DX15W
24
Edge clip
25
Hexagonal flange screw M8X16
26
Adaptor- fin
