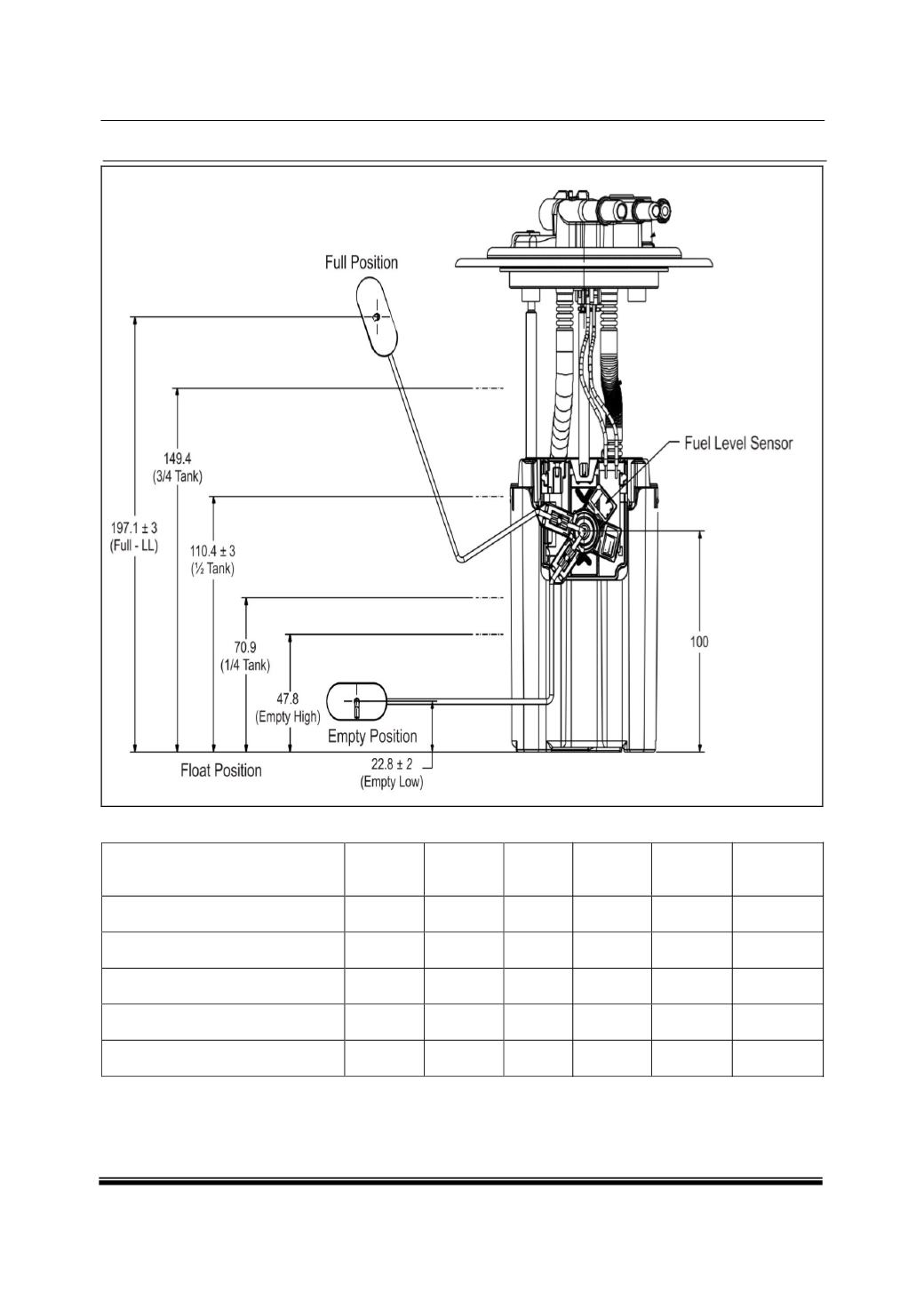

The specified resistance values and calibration details of the Tank unit fuel gauge are given below:
Float Position
Full
3/4
Half
1/4
Empty
High
Empty Low
Total Volume in liters
62.5
48
33
19
12
4.5
Fuel Height in mm
199
151
111
70
48
24
Float Height in mm
197.1
149.4
110.4
70.9
47.8
22.8
Resistance value in Ohms
41
65
83
102.8
113
120
Tolerance in Ohms
± 3
± 3
± 3
± 4
± 3
± 2
Dead Volume = 1 LTR
