ENGINE
135

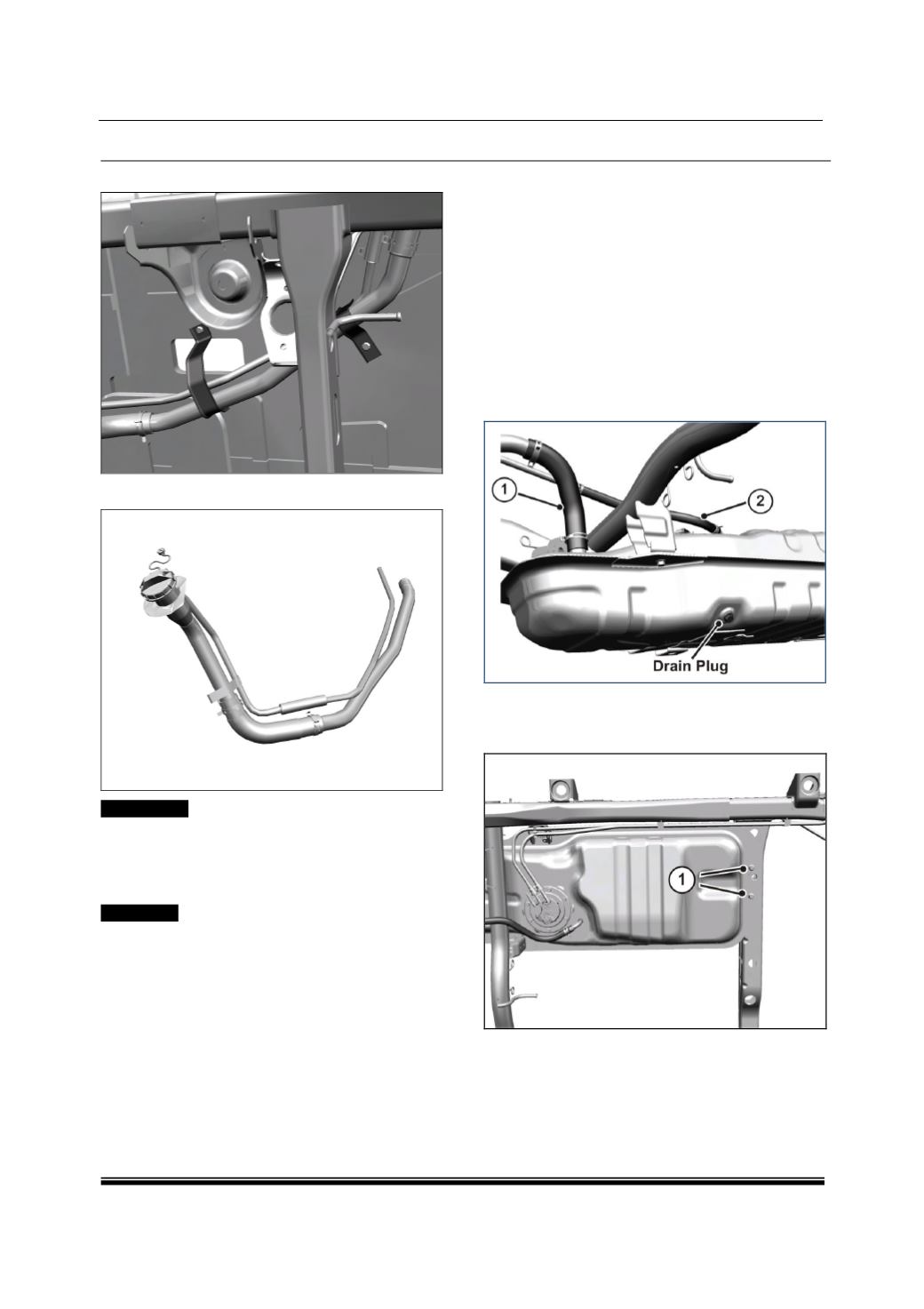

4. Loosen & remove fuel filler pipe clamp bolts.
5. Take out fuel filler assembly from body shell.
!! WARNING
A small amount of fuel may be released after fuel
lines are disconnected. To avoid the chance of inju-
ry, cover the pipe to be disconnected with cotton
cloth. Do not use cotton waste.
! CAUTION:
To avoid damage to vapour hoses while disconnect-
ing, slide back the clamps then twist the lines as you
pull.
FITMENT
Follow the reverse order of removal for fitment.
C. FUEL TANK
REMOVAL
1. Position the vehicle on a 2 poster lift.
2. Raise the vehicle and drain the fuel.
NOTE
•
Ensure that the drain plug is refitted after the fuel is
being drained.
•
Refit new washer in drain plug and apply specified
torque (4 Kg-m).
3. Disconnect the fuel filler hose (1) and the
breather hose (2).
4. Support the fuel tank from below.
5. Remove the front mounting bolts (1), mounted
from top.
