BODY
19
9.8 EXTERIOR TRIM

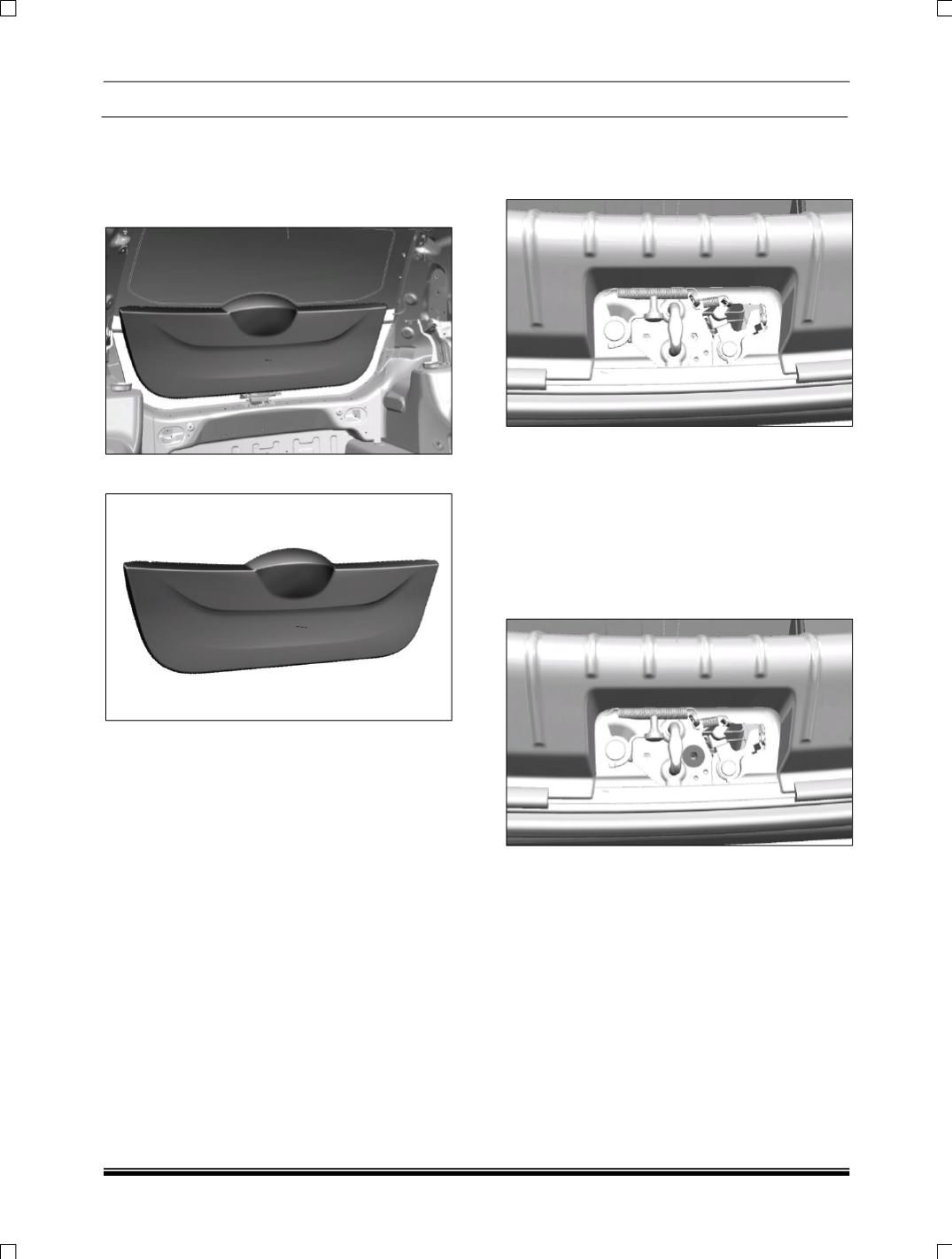

9.8.1 REMOVAL OF TAILGATE TRIM:
1. Pry out tailgate trim by wedge / fingers & pull
out trim gently.
2. Tailgate trim Removed.
REFITMENT OF TAILGATE TRIM:
1. Match Tailgate trim buttons properly with the
hole.
2. Press trims gently, ensure its proper fitment.
9.8.2 REMOVAL OF TAILGATE STRIKER:
1. Remove tailgate striker two fasteners by Allen
key.
2. Disconnect tailgate cable from striker.
3. Remove tailgate striker.
REFITMENT OF TAILGATE STRIKER:
1. Connect tail gate cable to striker.
2. Match tailgate striker hole properly and tight
two fasteners by Allen key.
3. Tailgate striker fitted.
