BODY
11

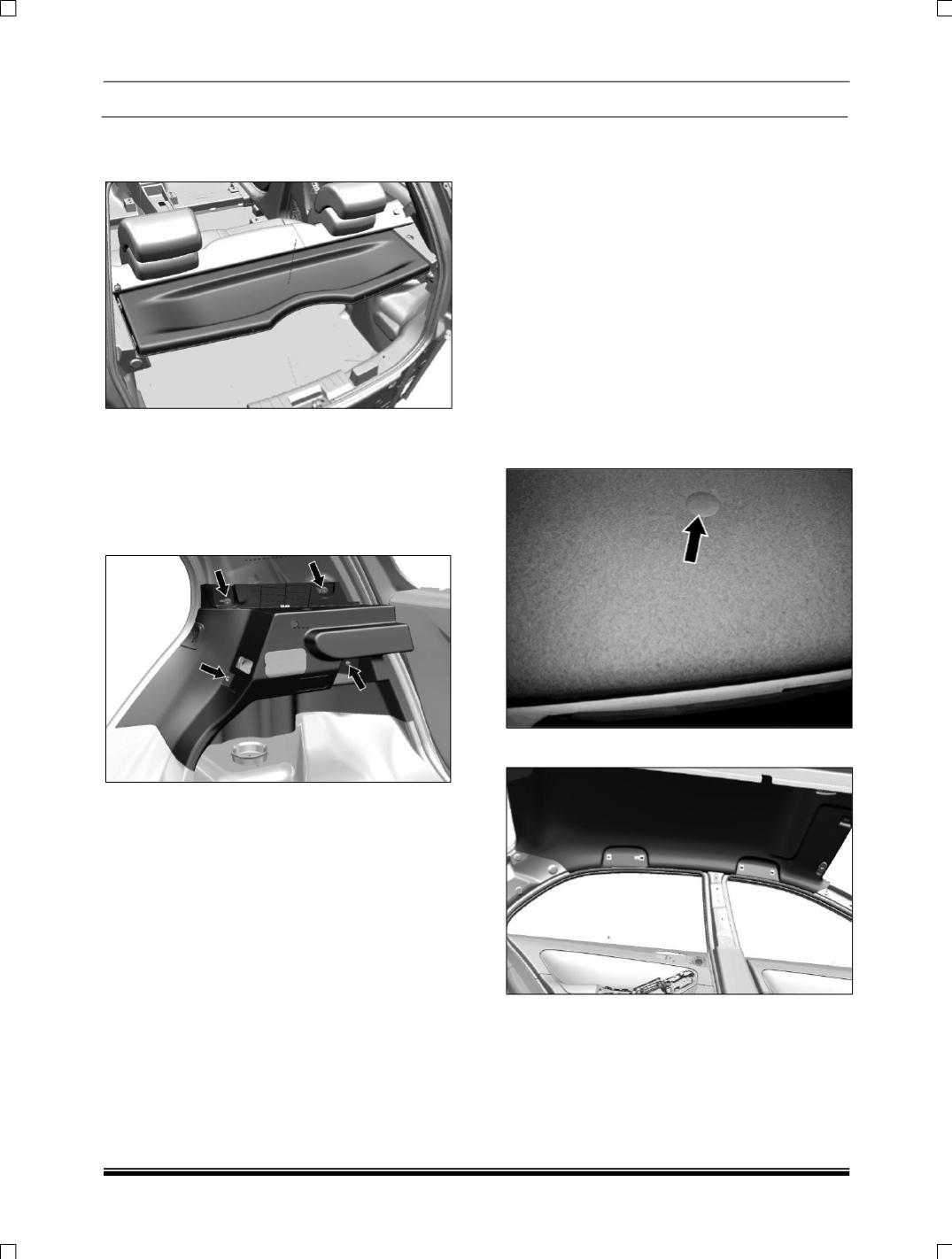

9.4.11 REMOVAL OF REAR QUARTER TRIM:
1. Remove Parcel Shelf.
2. Remove 'C' pillar : Refer “R+R 'C' pillar trim”
3. Remove two fasteners of Parcel Shelf
Support.
4. Remove Parcel Shelf support by prying out
using suitable tool behind the trim to remove
snap fit buttons from their locations.
REFITMENT OF REAR QUARTER TRIM:
1. Refit Parcel Shelf Support by aligning snap fit
location and press in place.
2. Refit two fasteners of Parcel Shelf Support.
3. Refit Rear Quarter trim.
4. Refit Parcel Shelf.
9.4.12 REMOVAL AND REFITMENT OF ROOF
TRIM REMOVAL:
1. Remove A pillar trim (Refer R+R of A pillar
rim)
2. Remove the two sunvisors.( Refer R+R of
sunvisor)
3. Remove the roof lamp.( Refer R+R of roof
lamp)
4. Remove B pillar trim. (Refer R+R of B pillar
trim)
5. Remove the three grab handle. (Refer R+R of
grab handle)
7.
Remove the C pillar trim (Refer R+R of C
pillar trim)
8. Remove the roof trim holding snap.
9. Remove the roof trim.
