DRIVETRAIN C549
8

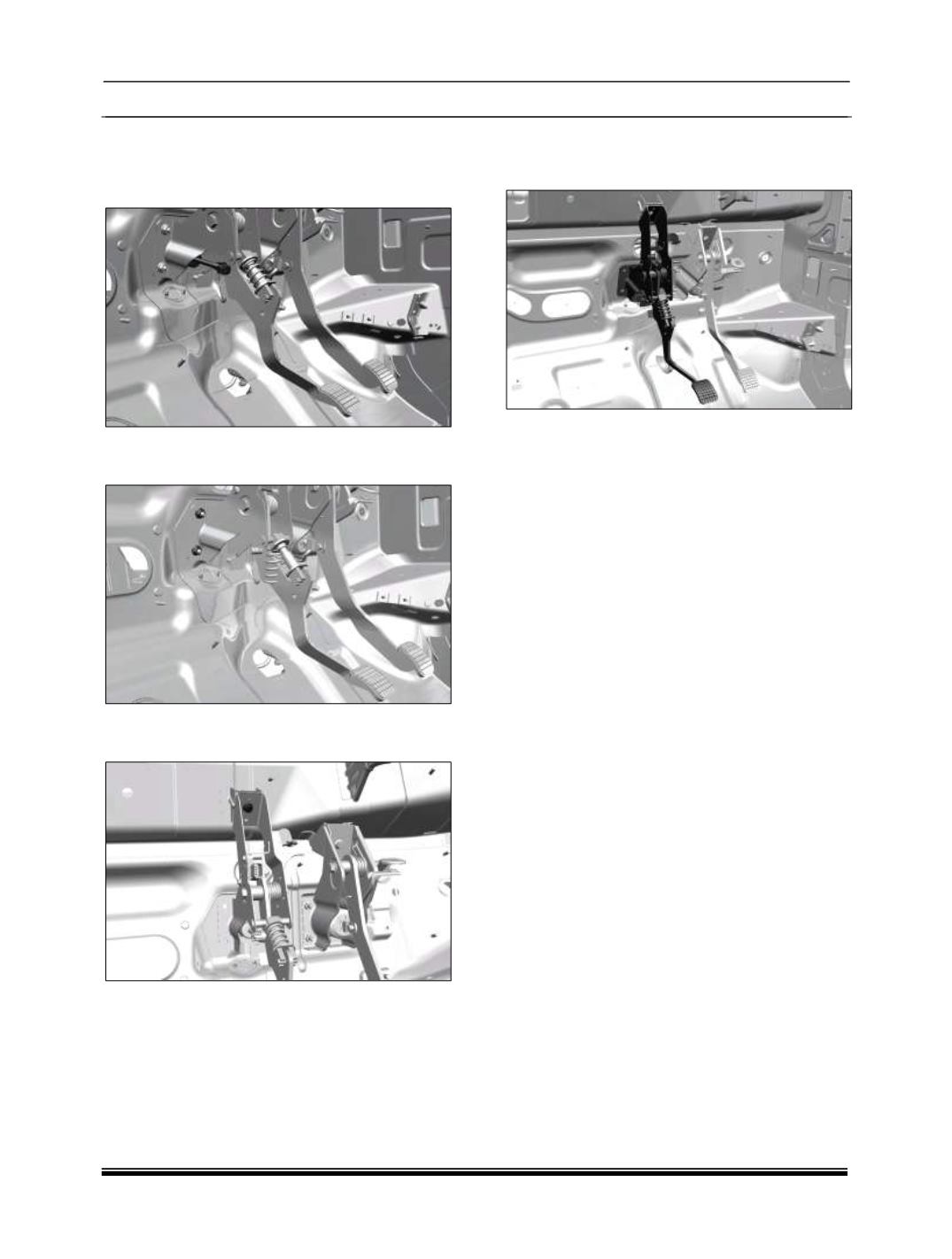

E. CLUTCH PEDAL ASSEMBLY – REMOVAL
1. To disconnect Clutch pedal box disconnect
snap type push rod of clutch master cylinder
from assembly
2. Loosen and remove the Clutch mounting M8
nuts from panel firewall RHD.
3. Loosen and remove the Clutch upper
mounting M8 nut from panel firewall RHD.
4. Pull out the Clutch Mounting bracket along
with clutch pedal from the driver’s foot control
area.
INSTALLATION
1. Hold the clutch control bracket on firewall.
2. Tighten the Clutch upper mounting M8 nut.
3. Tighten the Clutch mounting M8 nuts on panel
firewall RHD.
F
CLUTCH
SWITCH
ADJUSTMENT
PROCEDURE
Note -
Clutch switch setting is not recommended
for Quadrajet, It is highly precise and done at
supplier end.
