ZEST AND BOLT - page 412

ENGINE 1.3L QUADRAJET (90PS)

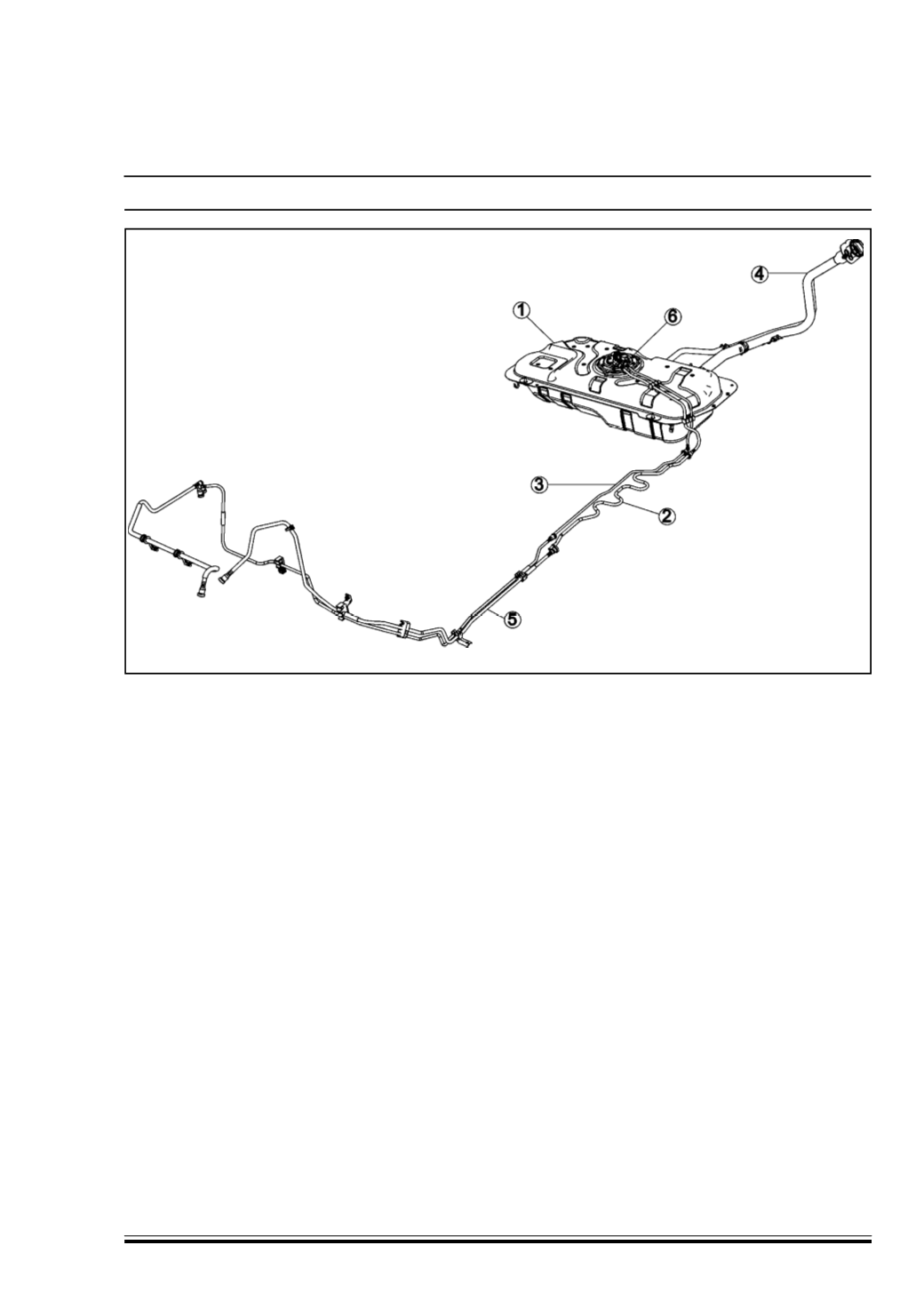

01 Assly fuel tank

02 Fuel line cooling loop

03 Delivery line

04 Fuel filler neck

05 Return line

06 Electric feed pump / Tank unit
