ENGINE 1.3 QUADRAJET (75PS)
49
3A.1.2.3.3 ENGINE OIL PUMP - REMOVAL AND
FITMENT

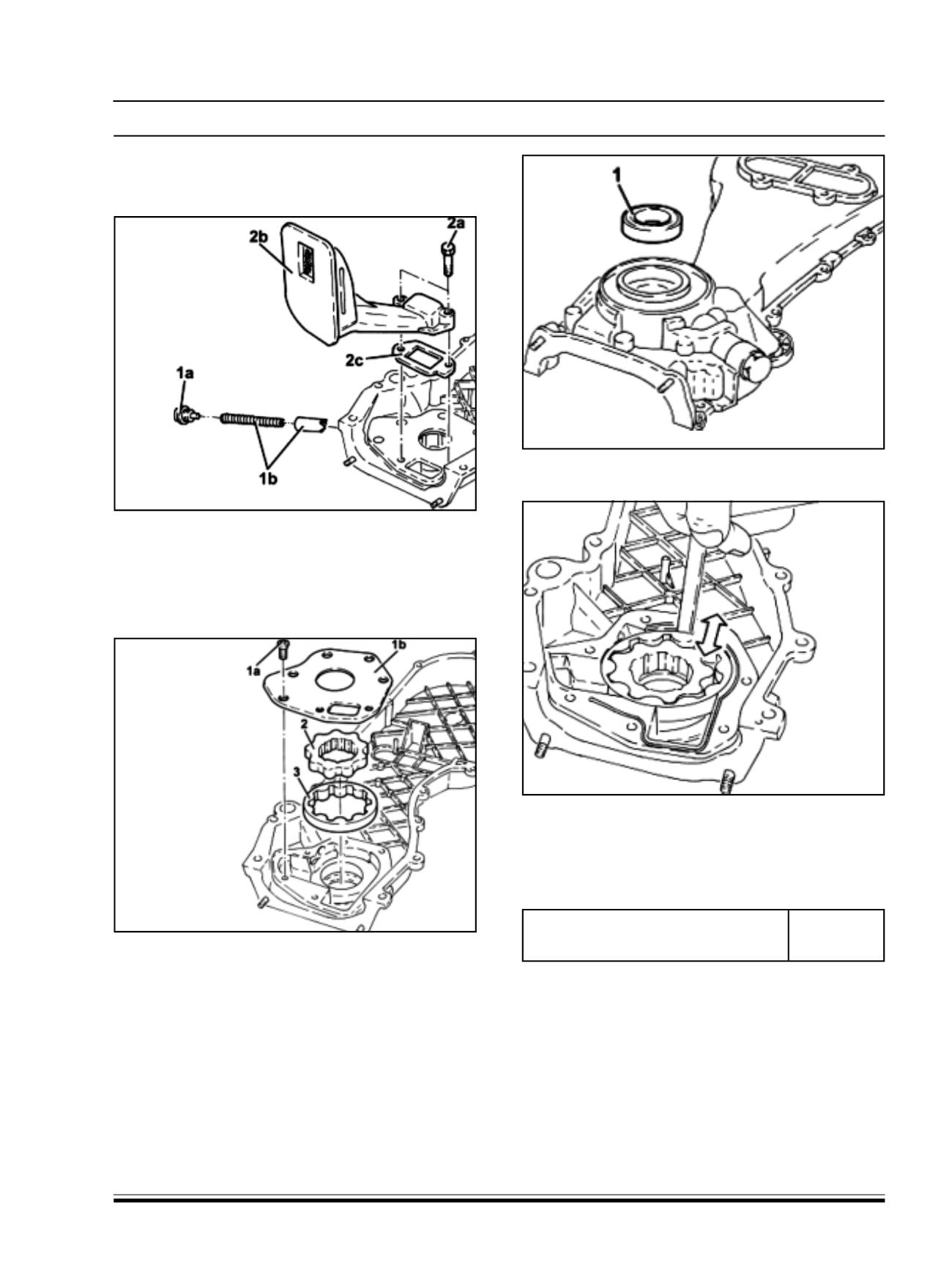

1. Remove the cap (1a) and remove the oil pressure
relief valve (1b).
2. Remove the bolts (2a) and remove the engine oil
intake duct (2b) complete with gasket (2c)
3. Remove the bolts (1a) and remove the oil pump
cover (1b).
4. Remove the drive gear.
5 Remove the driven gear.
6. Remove the crankshaft front oil seal.
7. Check that the radial clearance between the driven
gear and the pump casing is within the
recommended limits of 0.1mm ~ 0.23mm; if this
is not the case, replace the oil pump assembly.
Radial clearance between driven gear and
pump casing (mm)
0.1 ~ 0.23
