ENGINE 1.3 QUADRAJET (75PS)
45
3A.1.2.3 ENGINE BLOCK
3A.1.2.3.1 DISMANTLING

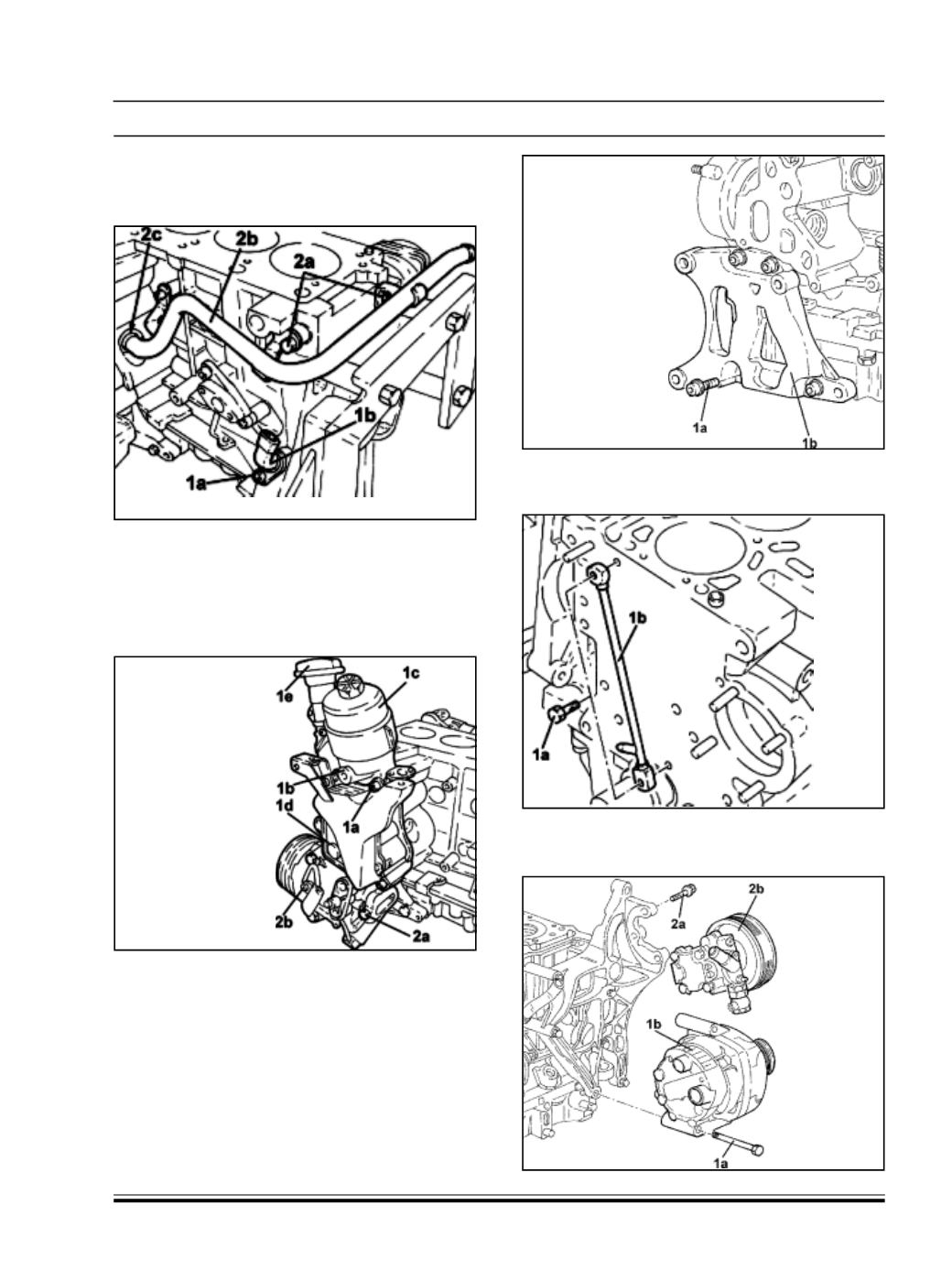

1. Remove the bolt (1a) and remove the rpm sensor
(1b).
2. Remove the bolts (2a) and remove the rigid
coolant inlet pipe to the water pump (2b) complete
with O-Ring (2c).
3. Remove the bolts and remove the engine oil heat
exchanger protection.
4. Remove the bolts (1a) and remove the engine oil
filter mounting (1b) complete with engine oil filter
(1c), engine oil heat exchanger (1d) and engine
oil filler fitting (1e).
5. Remove the gasket.
6. Remove the bolt s (2a) and remove the air
conditioner compressor (2b).
7. Remove the bolts (1a) and remove the air
conditioner compressor mounting (1b).
8. Remove the connectors (1a) and remove the
engine oil pipe (1b).
