ENGINE 1.3 QUADRAJET (75PS)
46

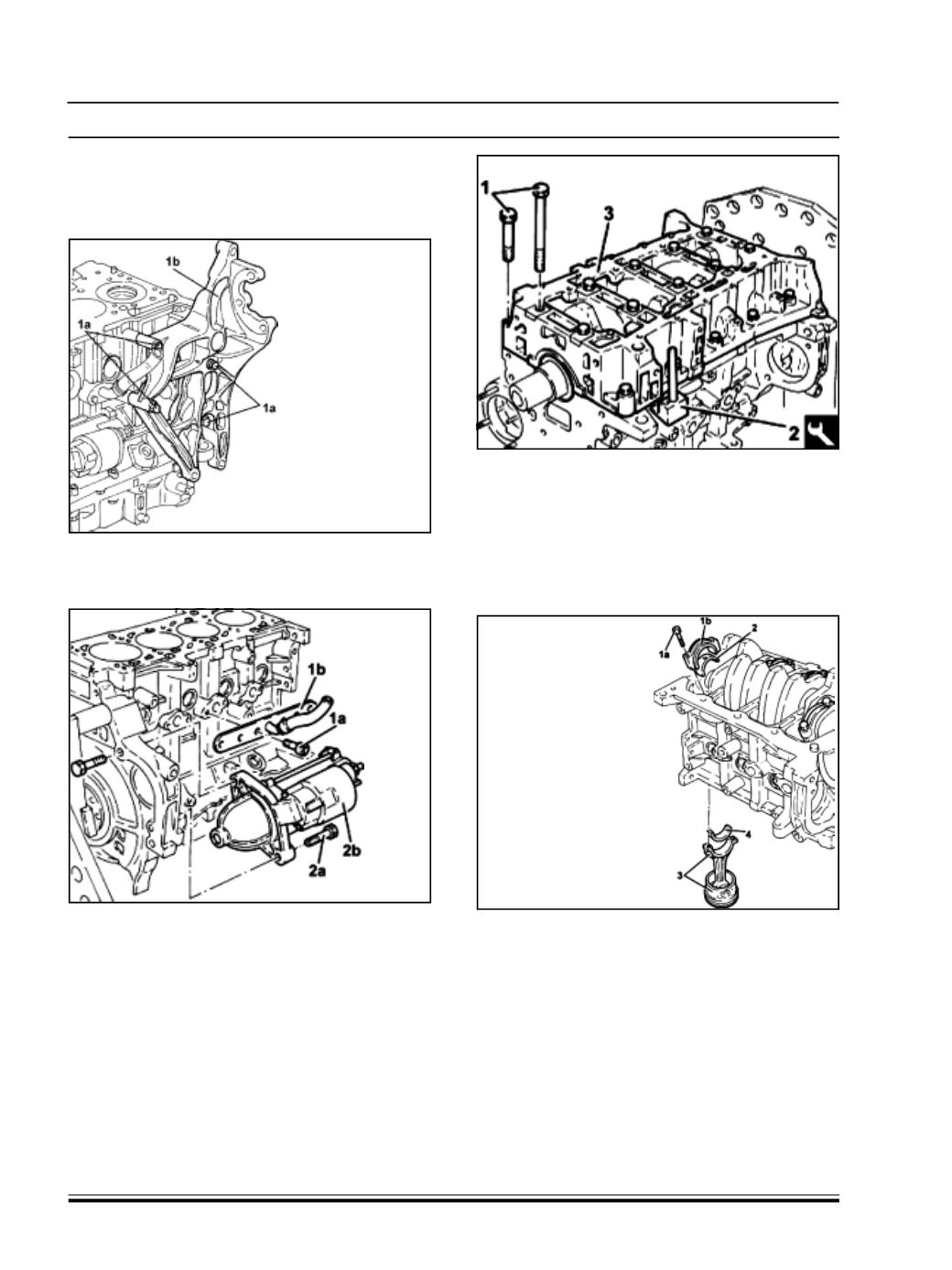

19.Remove the bolts (1a) and remove the connecting
rod caps (1b).
20.Remove the lower crankpin half-bearings.
21.Remove the connecting rod - piston assemblies.
22.Remove the upper connecting rod half-bearings.
9. Remove the bolts (1a) and remove the alternator (1b).
10.Remove the bolts (2a) and remove the power
steering pump (2b).
11. Remove the bolts (1a) and remove the alternator-
power steering pump mounting (1b).
12.Remove the bolts (1a) and remove the engine oil
recovery manifold (1b).
13.Remove the bolts (2a) and remove the st arter
motor (2b).
14.Rotate the engine through 180° on the overhaul
stand.
15.Remove the lower crankcase retaining bolts.
16.Cut the lower crankcase sealant using
the tool
287158900663 (Blade).
17.Remove the lower crankcase.
18.Remove the lower main journal half-bearings
