ENGINE 1.3 QUADRAJET (75PS)
27

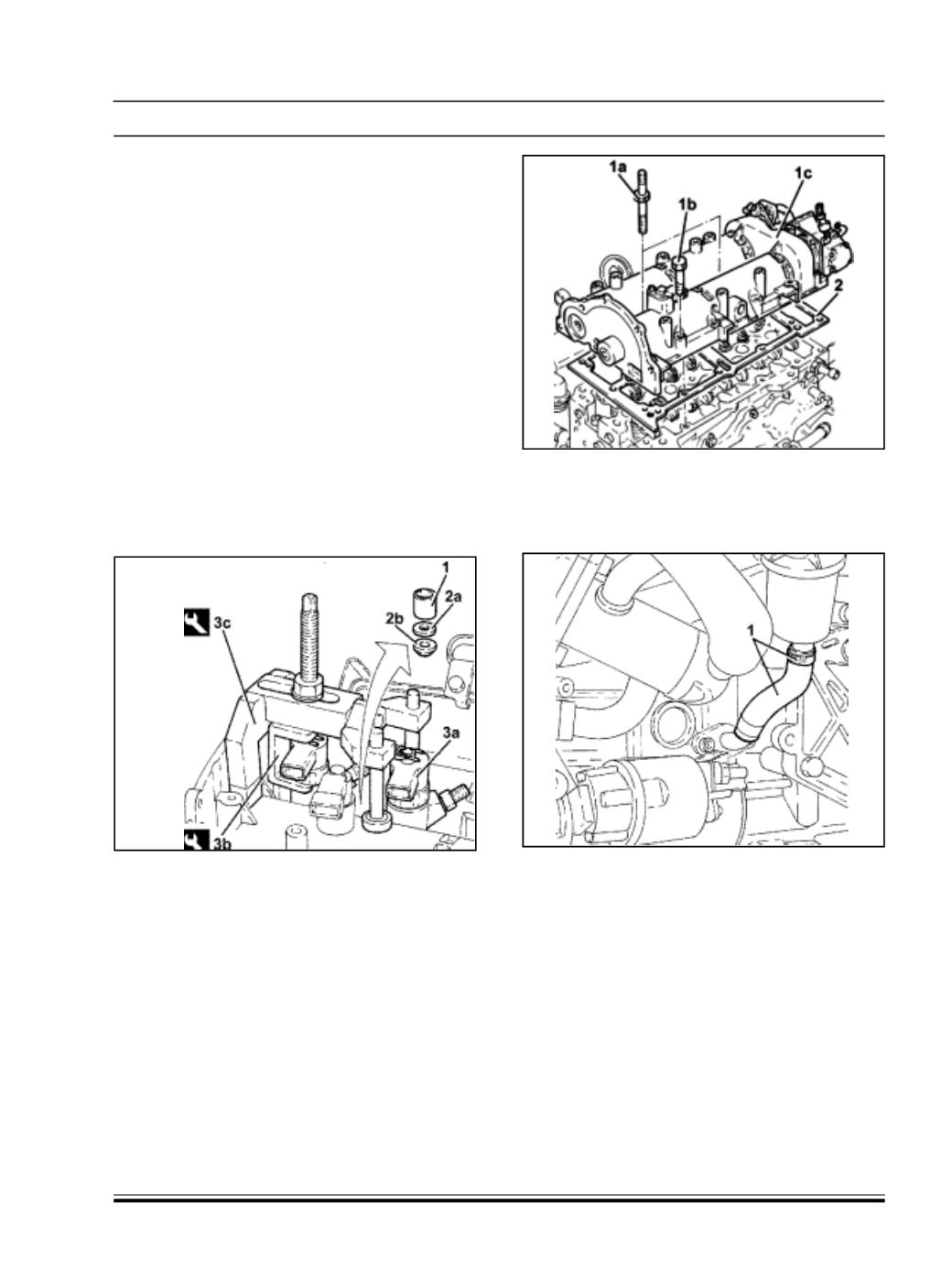

44.Remove the injector fastening bracket nut (1).
45.Keep the washer (2a) and the tapered washer (2b).
46. Remove the injectors (3a), one at a time, using
the tool (3b) part no. 287158900644 (Extractor) and
tool (3c) part no 287158900652 (Extractor).
ATTENTION
Q
If the injectors are being reused, mark the cylinder
to which they belong so that they can be correctly
refitted. If a new injector/s is fitted, run the
initialisation procedure using an Examiner.
47.Remove the injectors complete with bracket.
NOTE
Q
Replace the copper injector seals, do not reuse
them.
48.Repeat the above procedure to remove the
remaining pair of injectors.
49.Remove the injector dust seals (4) from the single
camshaft housing.
NOTE
Q
These dust seals are replaced each time they are
removed.
50.Remove the bolts (1a) and (1b) and remove the
camshaft housing assembly (1c).
51.Remove the seal (2).
52.Loosen the collar and disconnect the condensed
engine oil recovery pipe (1), oil vapour separator
side.
