ENGINE 1.3 QUADRAJET (75PS)
29
3A.1.2.2.4 CYLINDER HEAD – OVERHAUL

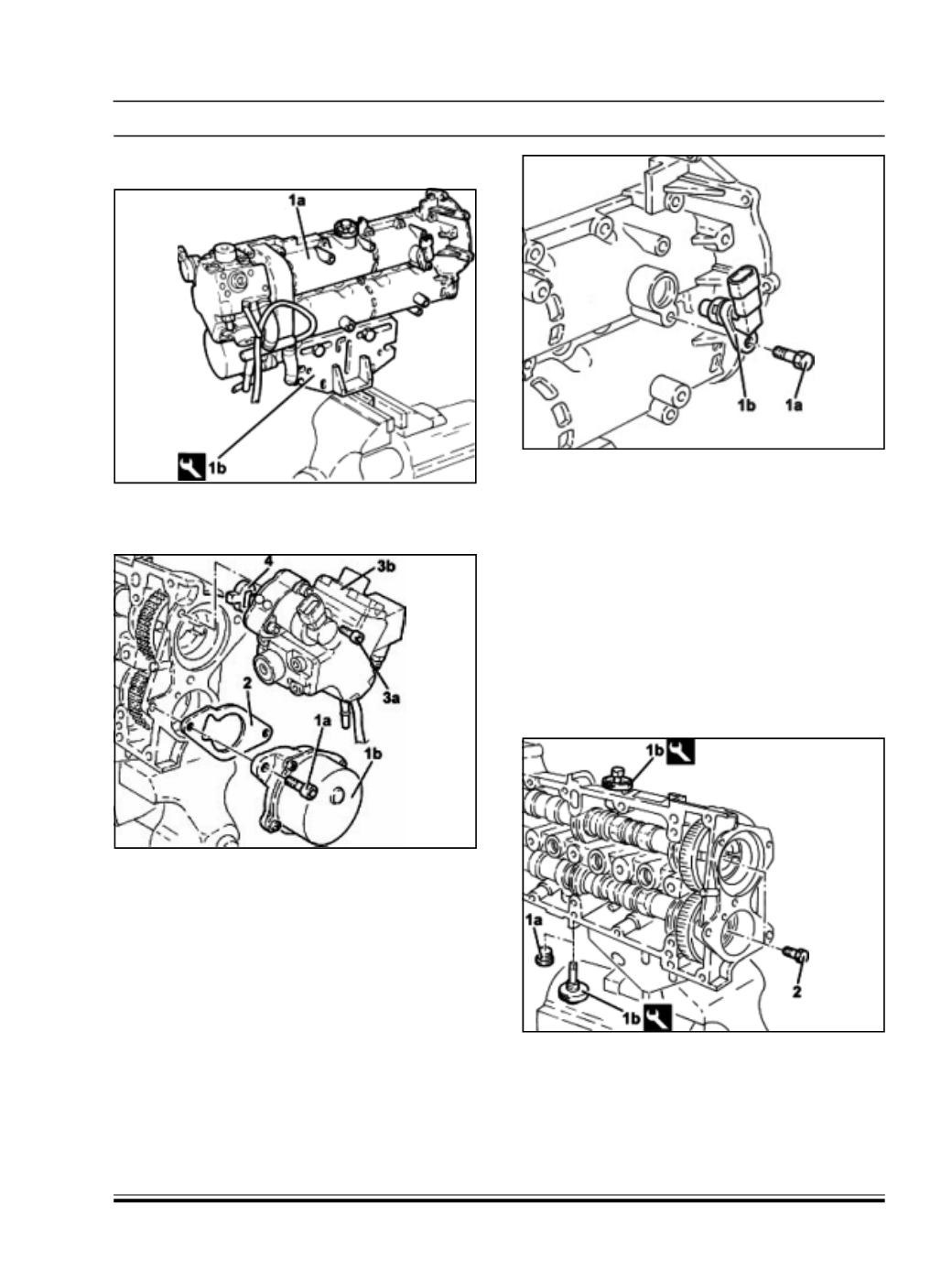

1. Position the camshaft housing (1a) in a vice using
the tool (1b) 287158900624 (Mount).
2. Remove the bolts (1a) and remove the vacuum unit
(1b).
3. Remove the gasket (2).
4. Remove the bolts (3a) and remove the pressure
pump (3b) complete with O-ring. Remove the joint
(4).
5. Remove the bolt (1a) and remove the cam angle
sensor (1b).
6. Temporarily remove the tool 287158900655
(Template) fitted previously on the exhaust side
camshaft.
7. Check that the camshaf t end float is within the
recommended values of 0.15 mm ~ 0.34 mm
using a dial gauge..
8. If the camshaf t end float is not within the
recommended values, replace the worn
components when reassembling the cylinder
head.
9. Remove plug (1a) and fit tool 287158900655
(Template) (1b) on the intake side camshaft.
