ENGINE 1.3 QUADRAJET (75PS)
24

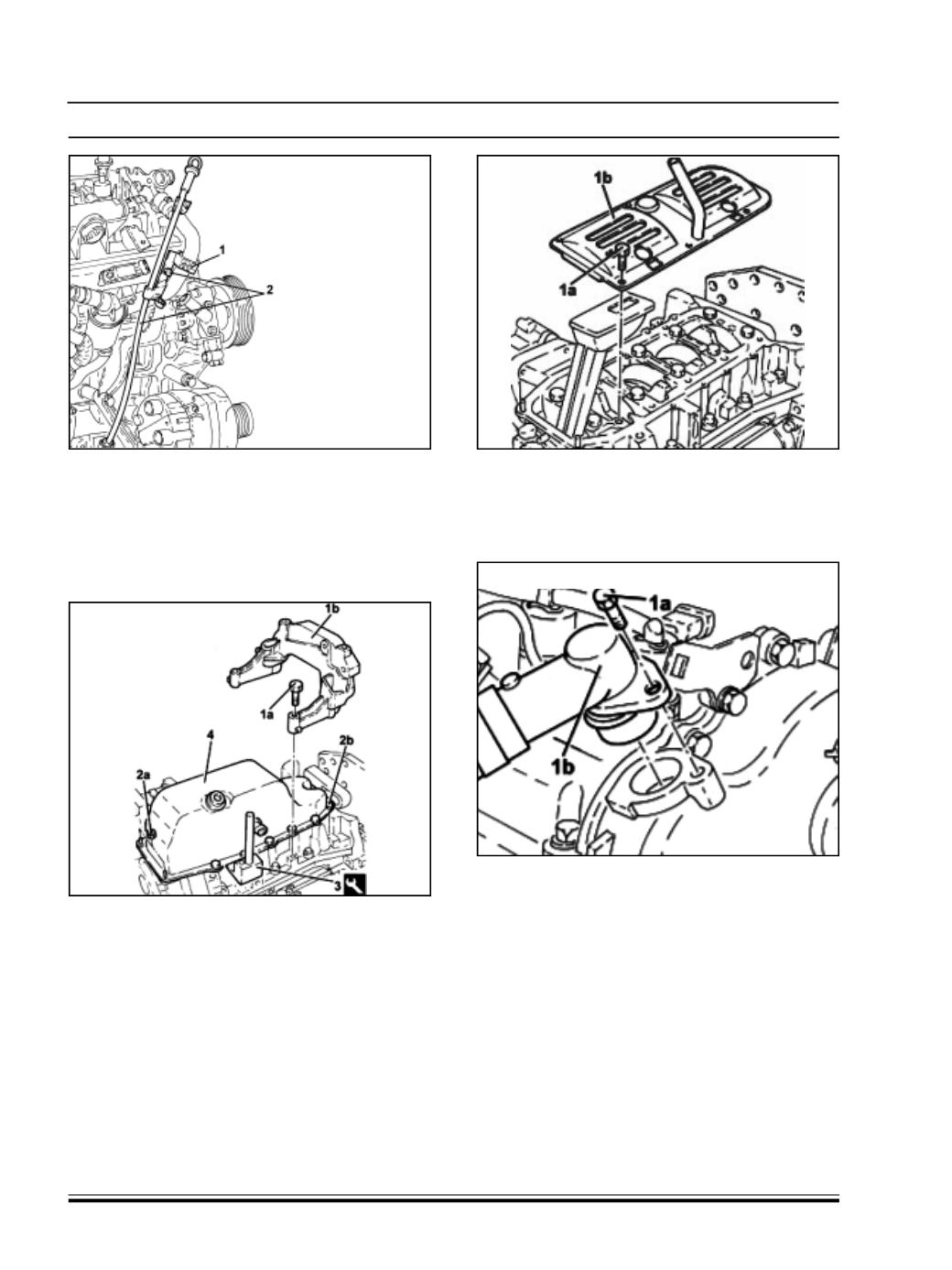

29.Remove the bolt (1a) and disconnect the connector
(1b) for the engine oil vapour recovery pipe from
the timing cover.
20.Open the oil vapour pipe retaining clip (1).
21. Remove retaining bolt and remove the engine oil
dipstick tube (2).
22.Rotate the engine through 180° on the overhaul
stand.
23.Remove the bolts (1a) and remove the support (1b).
24. Remove the nuts (2a) and the bolts (2b) securing
the crankcase sump.
25.Cut the crankcase sump sealant using the
tool (3)
part no. 287158900663 (Blade)
26.Remove the crankcase sump.
27.Remove the bolts (1a) and remove the crankcase
oil sump partition (1b).
28.Rotate the crankcase through 180° on the overhaul
stand.
