ENGINE 1.3 QUADRAJET (75PS)
25

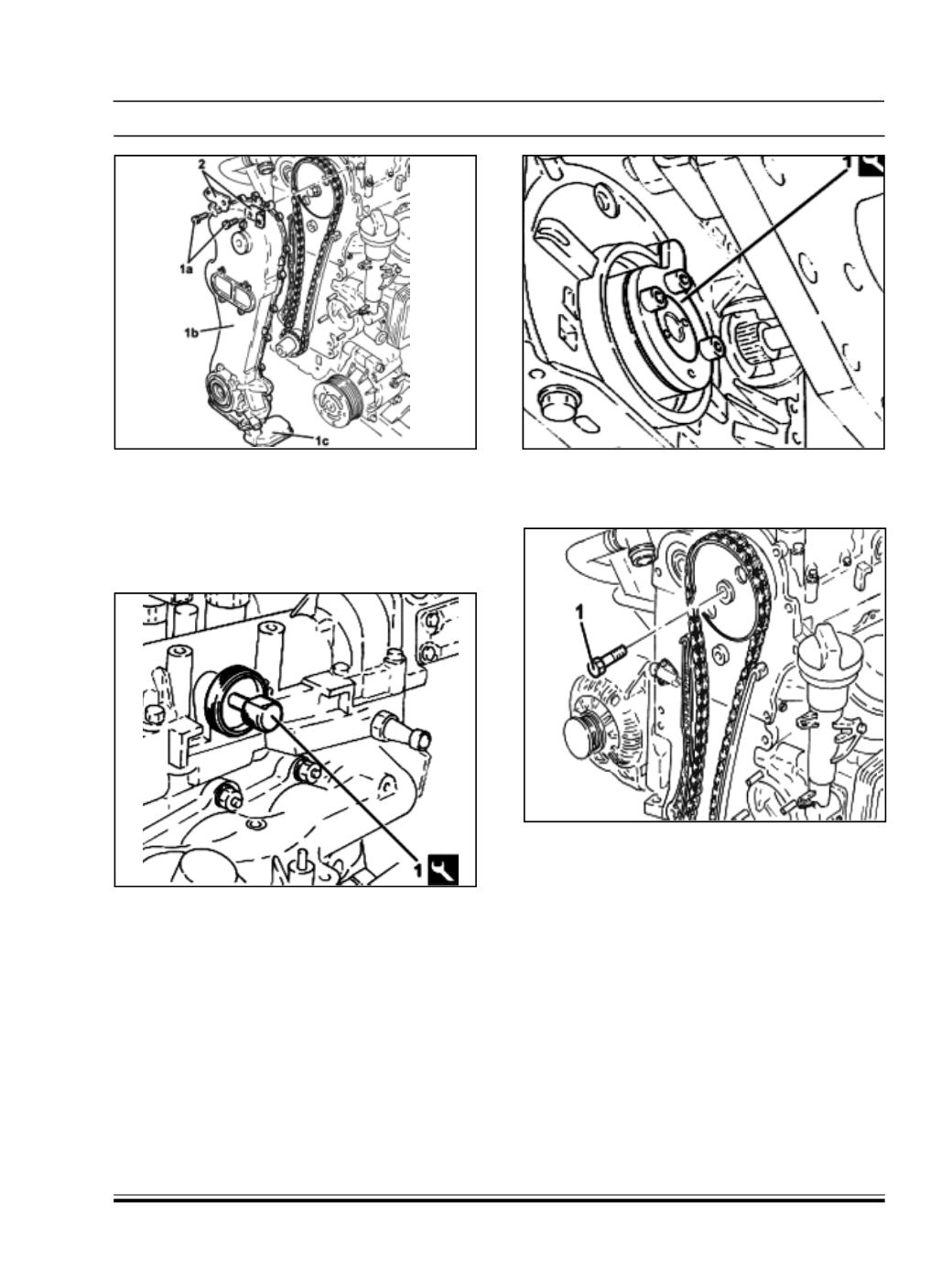

30.Remove the bolts (1a) and remove the timing cover
(1b) complete with engine oil suction device (1c)
and engine oil pump.
31.Remove the timing cover gasket, but keep the
brackets (2).
32.Keep the tool (1) part no 287158900655 (Template)
fitted on the exhaust side camshaft.
33.Fit the camshaft timing adjustment tool (1) part
no. 287158900650 (Template).
NOTE
• Mark the position of the timing driven pulley, the
timing drive pulley and the timing drive chain (if
the chain removed is being reused); if the pulleys
are replaced, fit them with the writing facing
outwards.
34.Remove the timing driven pulley fixing bolt (1).
