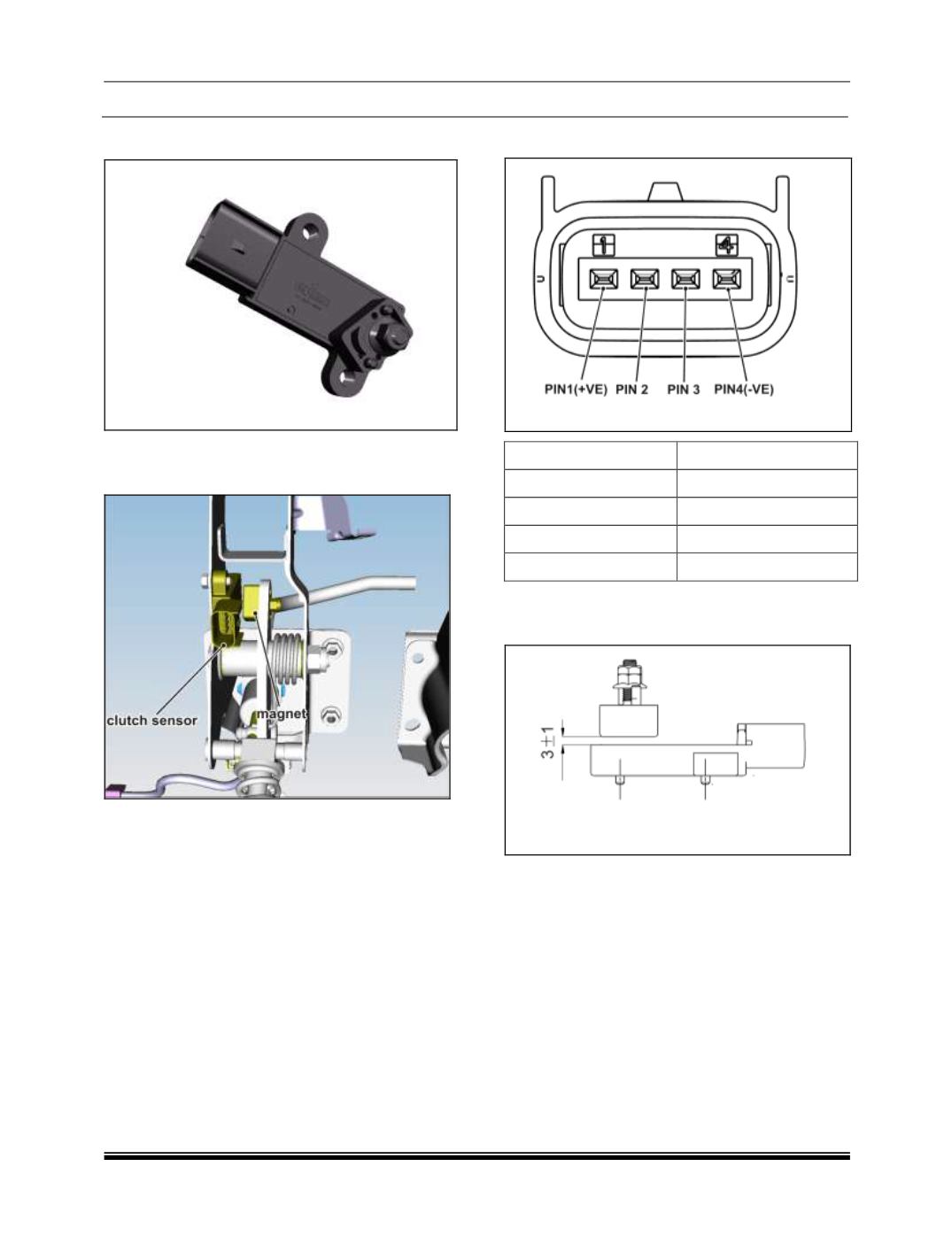

12.26 CLUTCH PEDAL SENSOR
LOCATION
It is fitted on clutch pedal mounting bracket.
WORKING
It provides information to ECU before the gear
change which helps in faster gear change
detection. Based on this input the ECU maintains
optimum fuel supply.
PIN DETAILS
PIN NO
DESCRIPTION
PNI 1
VOLTAGE
PIN 2
O/P-2
PIN 3
O/P-1
PIN 4
GROUND
AIR GAP BETWEEN SENSOR AND MAGNET:
Air gap: 3±1mm
