KRYOTEC ENGINE
99

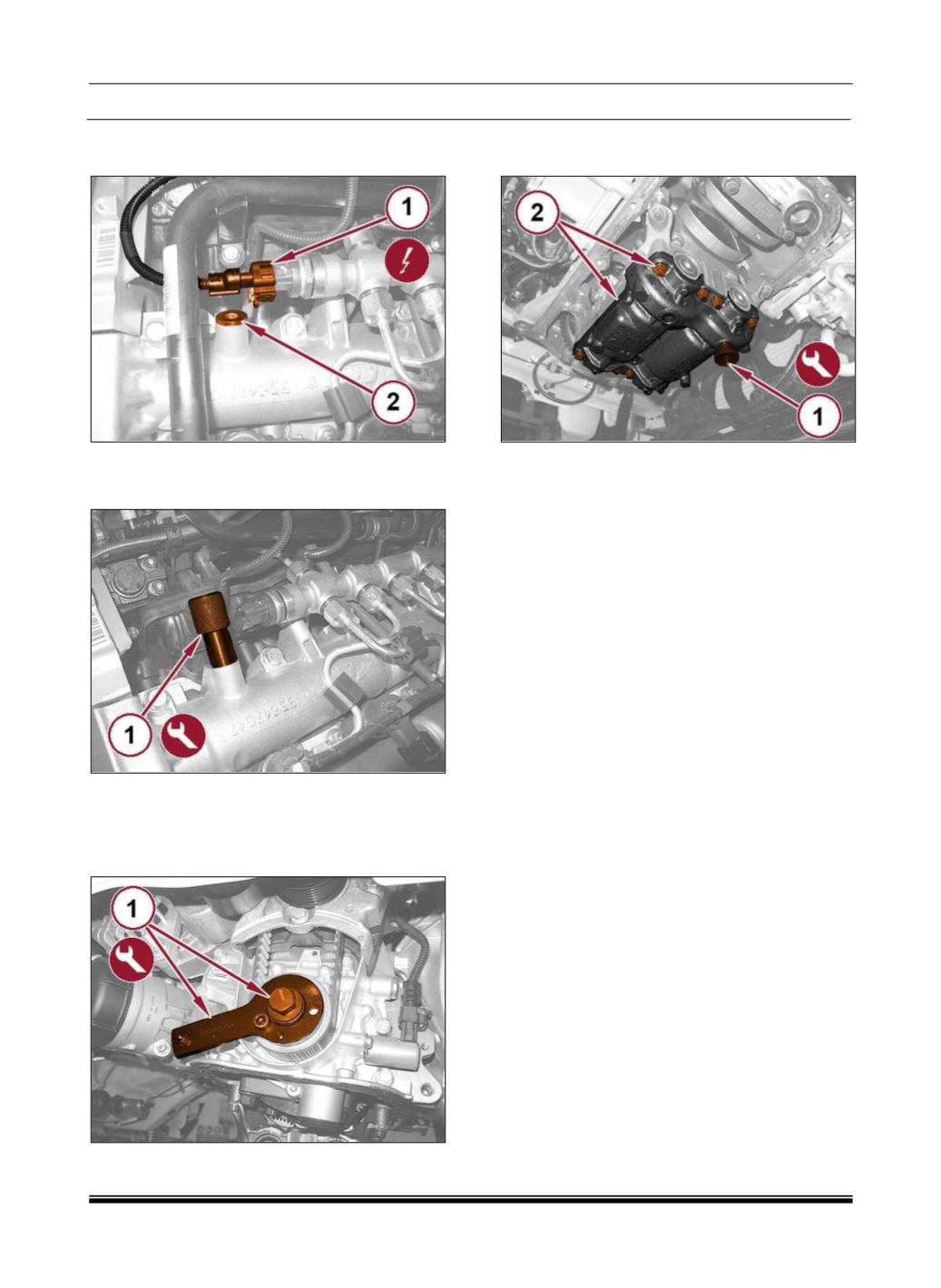

18. Disconnect the electrical connector (1) from the
fuel pressure sensor.
19. Unscrew the cap (2) on the timing cover.
20. Insert the balancer shaft locking tool (1).
21. Fit the balancer shaft locking tool in phase with
the engine.
22. Remove the crankshaft cover and fit the
crankshaft timing template (1).
23. Fit the balancer shaft locking tool (1) in phase
with the engine.
24. Remove the bolts (2) and remove the balance
shaft.
25. Remove the spacers and verify the integrity of
the centering bushings.
FITMENT
1. Install the balance shaft and tighten the bolts to
the proper (Torque Specifications).
2. Remove the balancer shaft locking tool.
3. Remove the crankshaft timing template and
install the front crankshaft cover.
4. Install the cap into the timing cover.
5. Connect the electrical connector to the fuel
pressure sensor.
6. Install the serpentine belt (Refer to 07 -
Cooling/Accessory
Drive/BELT,
Serpentine/Removal and Installation).
7. Install the oil pan (Refer to 09 -
Engine/Lubrication/PAN,
Oil/Removal
and
Installation).
8. Install the flywheel on vehicles with manual
gearbox
and
4x4
(Refer
to
06
-
Clutch/FLYWHEEL/Removal and Installation).
9. Install the clutch, if equipped (Refer to 06 -
Clutch/DISC, Clutch/Removal and Installation).
10. Install the transfer case, if equipped (Refer to
21 - Transmission and Transfer Case/Power
Transfer Unit/ Removal and Installation).
11. Install the air cleaner body (Refer to 09 -
Engine/Air
Intake
System/BODY,
Air
Cleaner/Removal and Installation).
12. Install the battery tray (Refer to 08 -
Electrical/Battery System/TRAY, Battery/Removal
and Installation).
