KRYOTEC ENGINE
96

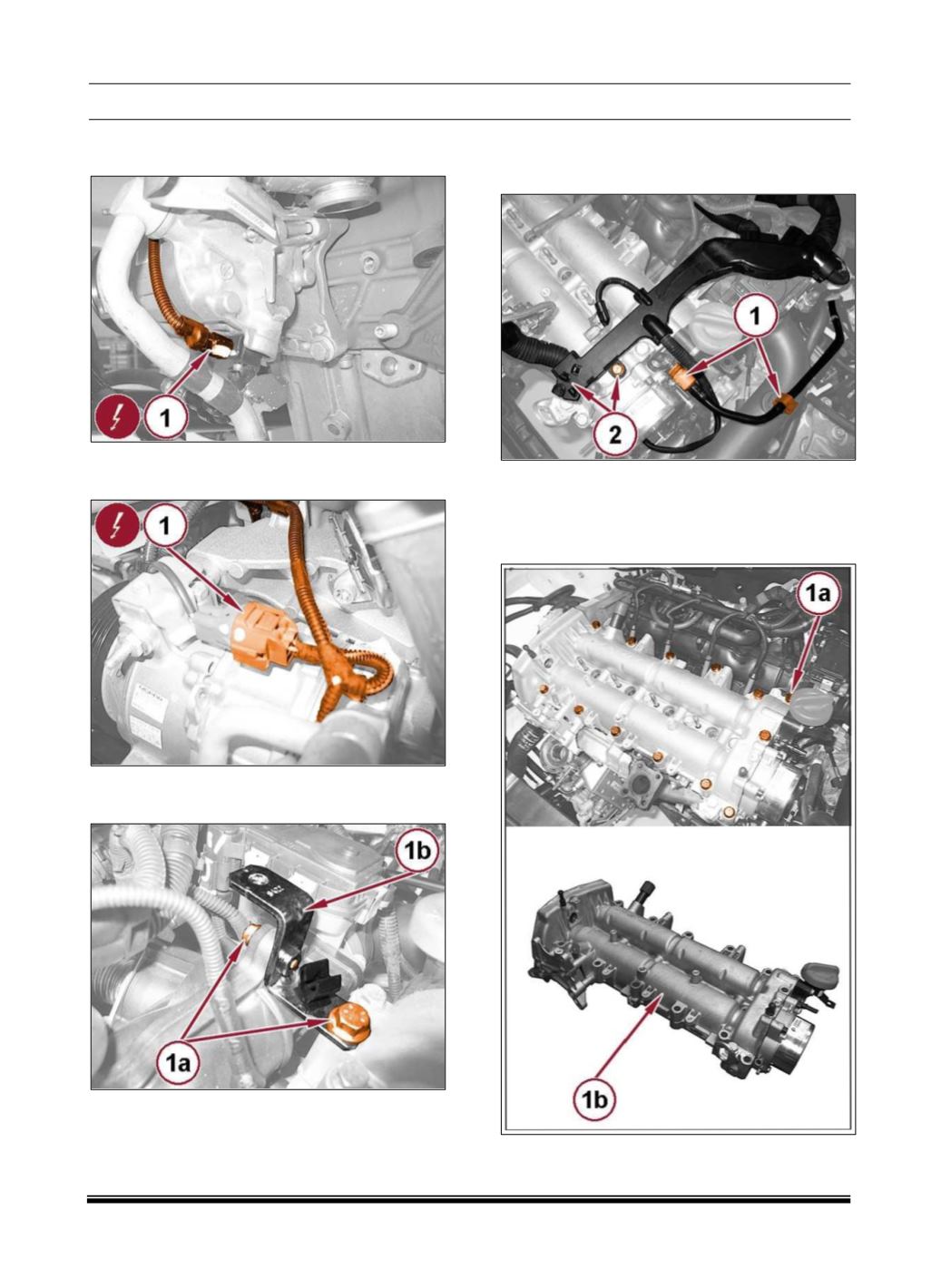

15. Disconnect the lower A/C compressor wire
harness connector (1).
16. Disconnect the upper A/C compressor wire
harness connector (1).
17. Remove the bolts (1a) and the intake manifold
mounting bracket (1b).
18. Open the clip (1) and disconnect the quick
coupling for the brake servo vacuum air pipe,
vacuum unit side.
19. Remove the bolts (2) and move the engine
wiring channel to one side.
20. Remove the bolts (1a) and the cylinder head
cover assembly (1b).
21. Remove the gasket.
