HV ELECTRICAL SYSTEM
51

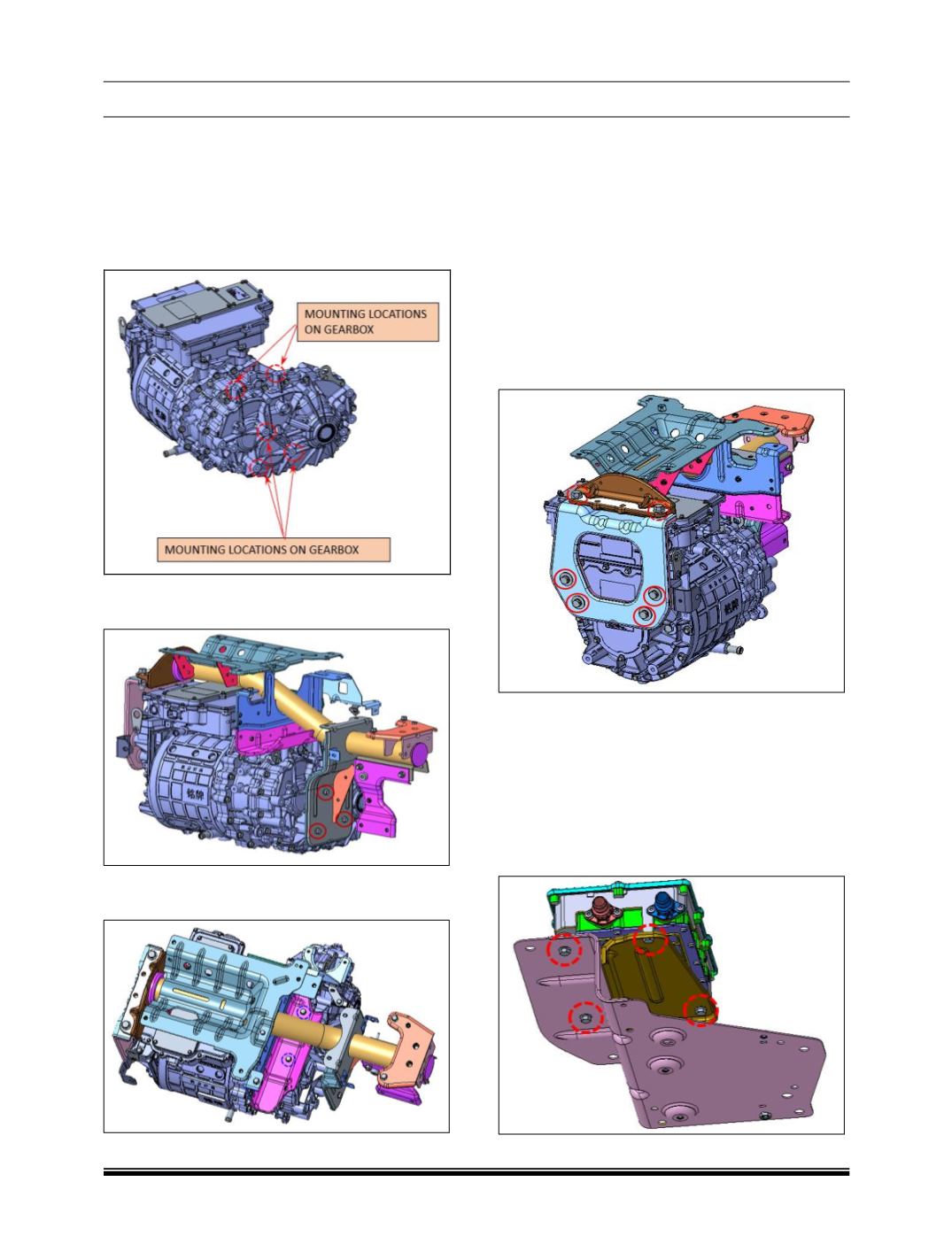

C. CRADLE FITMENT
NOTES
STEP 1
➢
Locate motor, inverter and gearbox assy on
cradle assy; use loctite-243 thread locker and
hand tight all 5 bolts.
➢
HEX FL SCREW
M8X40
TS17130-8.8-
SS8451-8C, - 3 Nos.
➢
HEX FL SCREW
M8X25
TS17130 8.8
SS8451-8C, - 2 Nos.
STEP 2
➢
Locate bracket assembly RH side motor
mount with non-drive end assembly faces of
motor, inverter and gearbox assembly and
with cradle assembly.
➢
Locate & hand tight all 4 bolts and the 2
vertical bolts.
➢
HEX
BOLT
M10X1.25X45
TS17100
8.8SS8451-8C, - 6 Nos.
➢
WASHER A10.5 IS5370 ST SS8457S1-S-B, -
4 Nos.
➢
SPRING WASHER B10 IS3063 SS8400, - 4
Nos.
➢
Apply recommended torque to the two vertical
bolts and then to the 4 bolts (2) in diagonally
opposite fashion.
STEP 3
➢
First mount dc-dc converter and then onboard
charger unit on bracket assy charger +
converter mtg.
➢
HEX FL SCR M6X14 TS170708.8-SS8451S2-
Y - 4 Nos. Apply specified torque.
