HV ELECTRICAL SYSTEM
53
STEP 7
➢

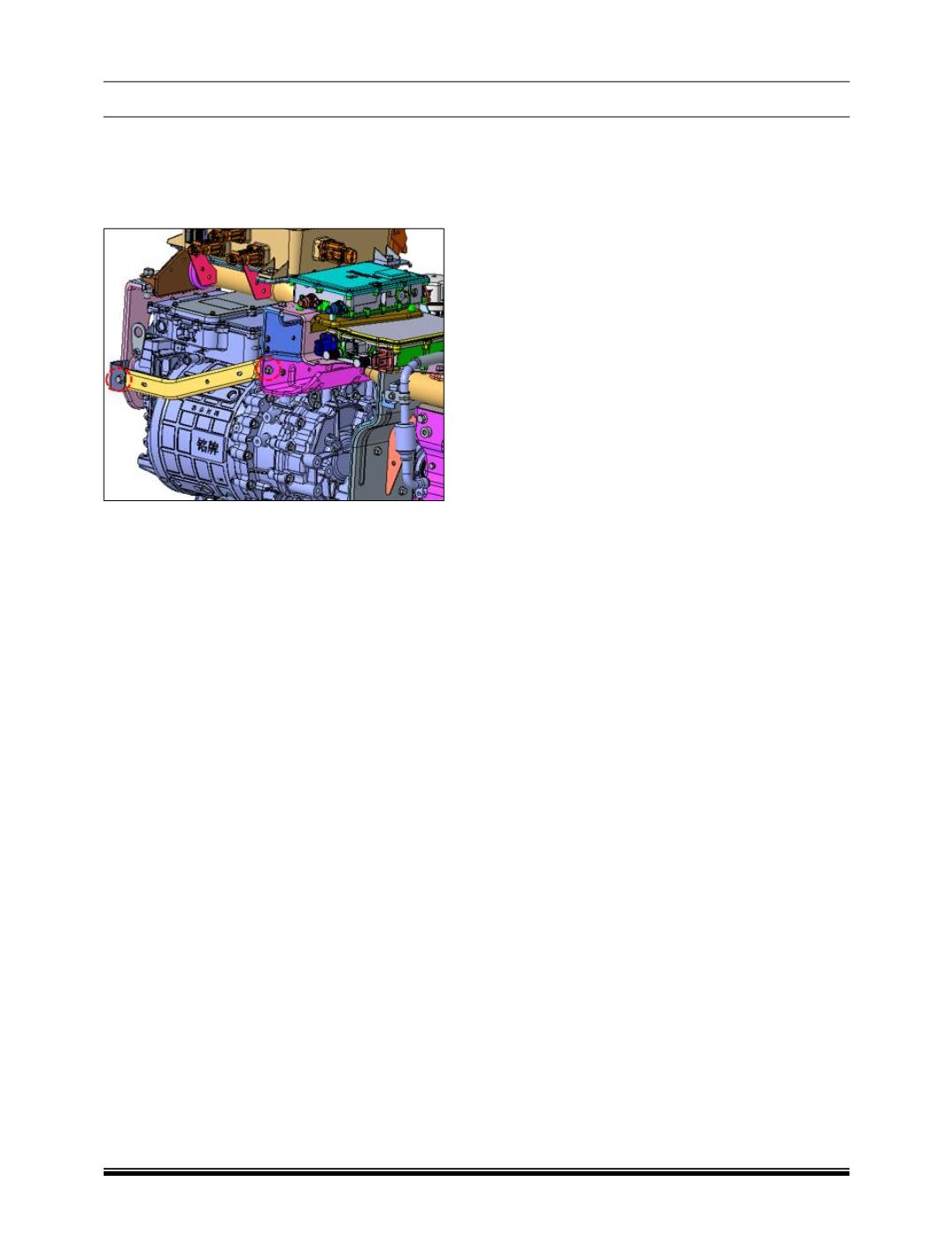

Assemble plate, support bracket on cradle
assembly. Hand tight 2 bolts.
➢
H/FL SCR M8X20 TS17130-8.8-SS8457S1-
BL, - 2 Nos.
STEP 8
➢
Apply recommended torque to the 5 bolts for
STEP – 1
.
STEP 9
➢
Apply recommended torque to the 2 bolts,
STEP – 7.
