HV ELECTRICAL SYSTEM
39
8. HV BATTERY

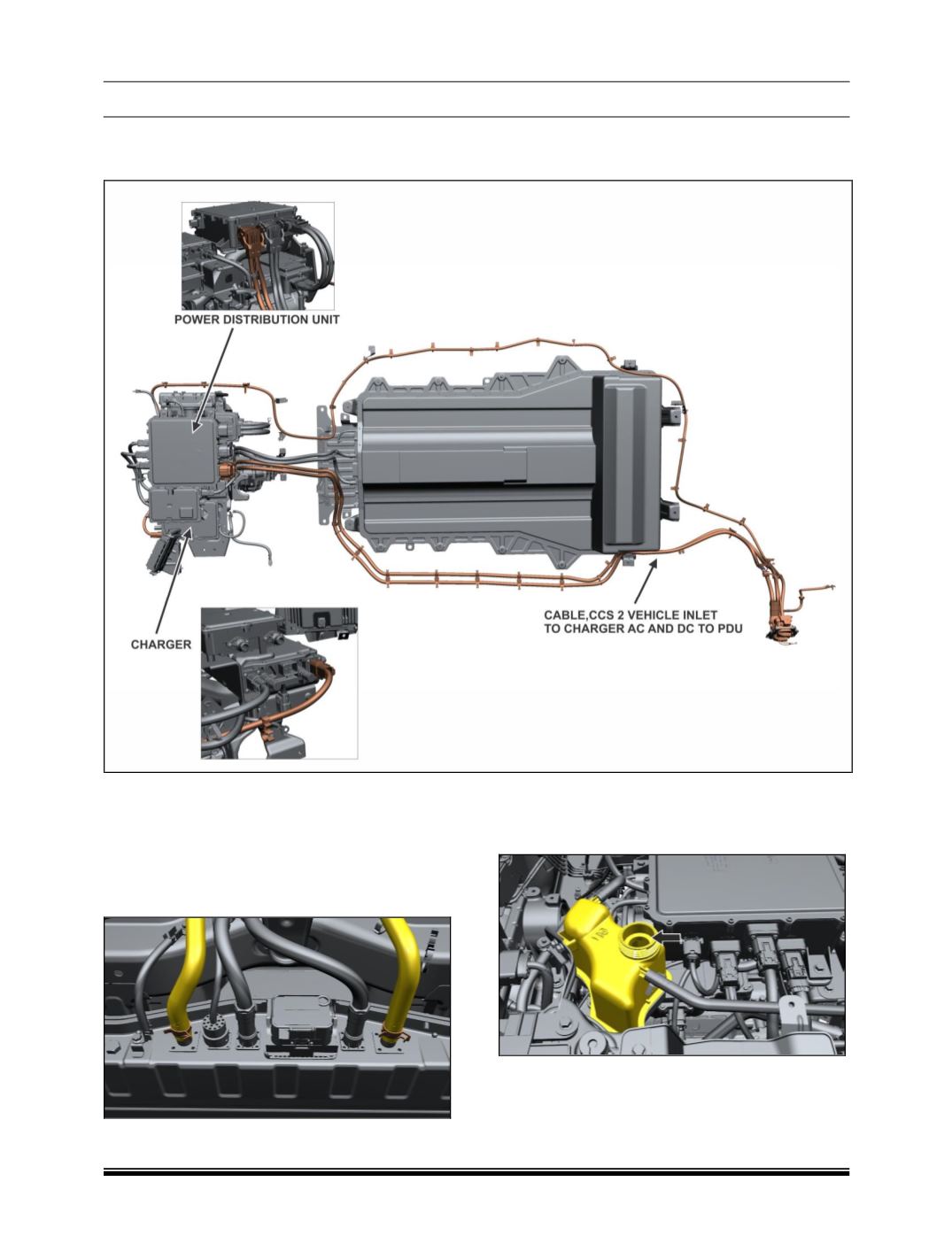

A. SYSTEM LAYOUT
B. HV BATTERY REMOVAL
1. Refer Instructions for working on HV
Components mention before starting work.
2. Remove the spring band clamp and hose
connected to HV battery assembly and Drain
coolant (Refer Coolant draining procedure).
NOTE:
‘BCS aux. tank cap must be in open condition
while draining coolant’.
