HV ELECTRICAL SYSTEM
37

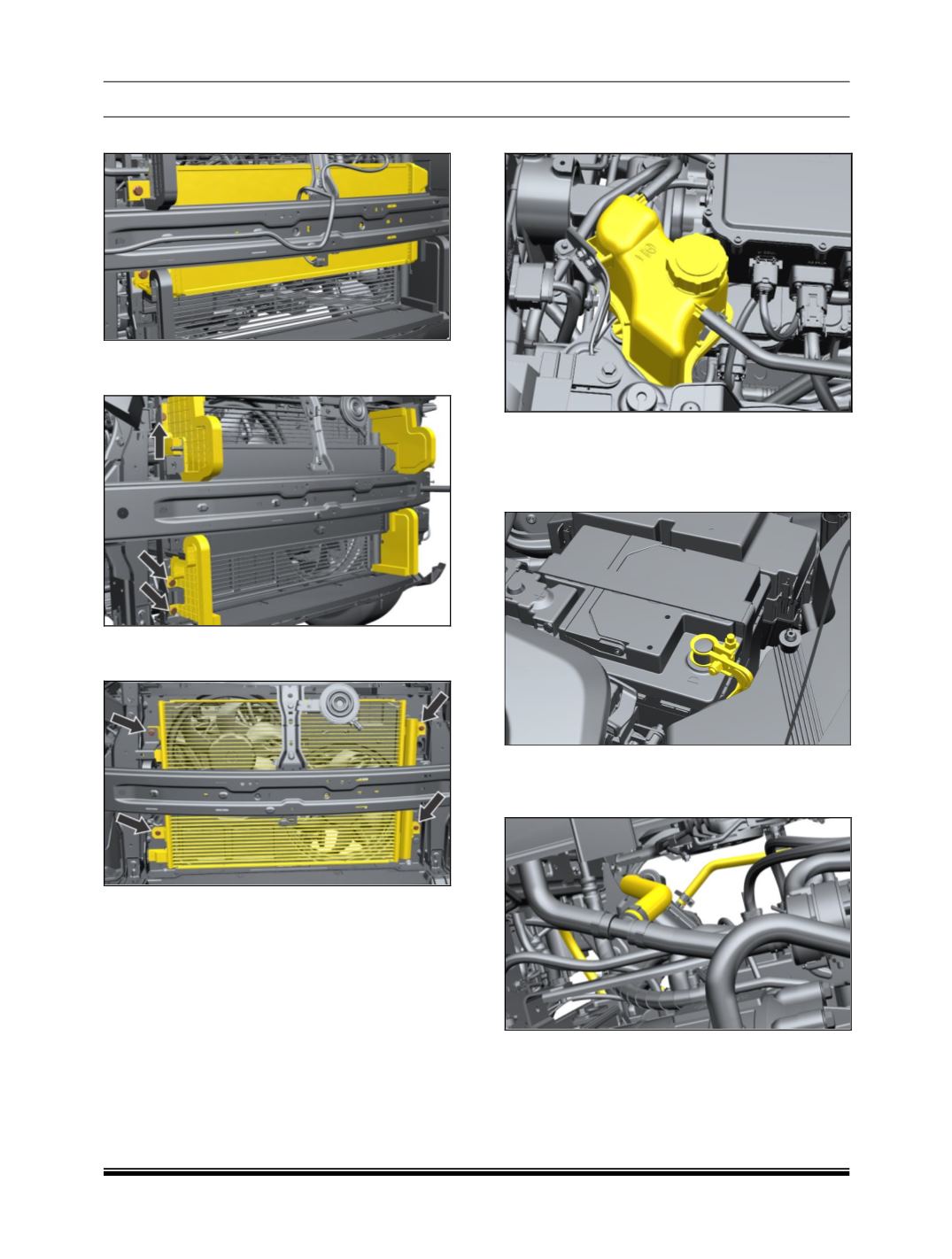

8. Remove the mounting screw of radiator.
9. Remove the mounting Sealing Rivet of
Radiator Sealing both sides.
10. Remove the mounting screw of Condenser
Unit Assy take it out.
Fitment.
Follow reverse procedure for assembly.
NOTE
Ensure condenser front area is clean and side
sealing are fitted properly. Clogging of condenser
and absence of side sealing lead to higher
operating pressures of AC system
G. AUX TANK RESERVIOR REMOVAL
1. Open the bonnet of vehicle.
2. Remove Aux Battery negative terminal and
Put masking tape on Aux Battery negative
terminal & cable.
3. Remove the Drain the coolant and pump hose
(Refer coolant pump section for removal
process)
