HV ELECTRICAL SYSTEM
36

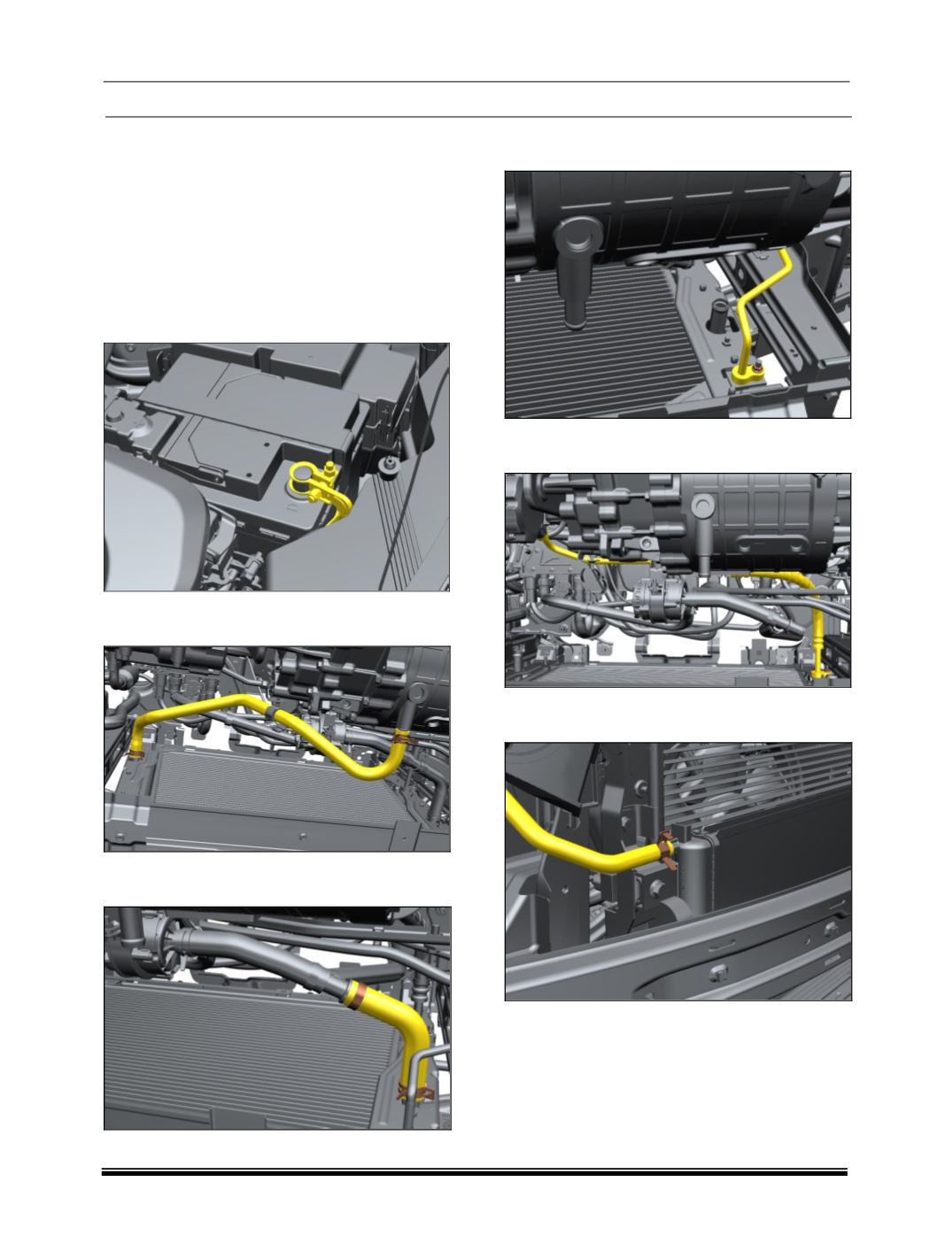

F. CONDENSER REMOVAL
NOTE:
•
Drain the coolant (Refer TCS Coolant
Draining procedure).
•
‘While draining the coolant TCS Aux. tank
Cap must be in open condition’.
1. Open the bonnet of vehicle.
2. Remove Aux Battery negative terminal and
Put masking tape on Aux Battery negative
terminal & cable.
3. Remove the Radiator to E-drive hose.
(Refer
removal procedure in E drive section).
4. Remove the hose Condenser to coolant
pump.
5. Remove the mounting nut of Liquid Line
Condenser to Chiller Unit.
6. Remove the mounting nut of Liquid Line
Condenser to Compressor.
7. Remove the mounting hose of Air Vent Hose,
Radiator to Aux Water Tank.
