SUSPENSION
36

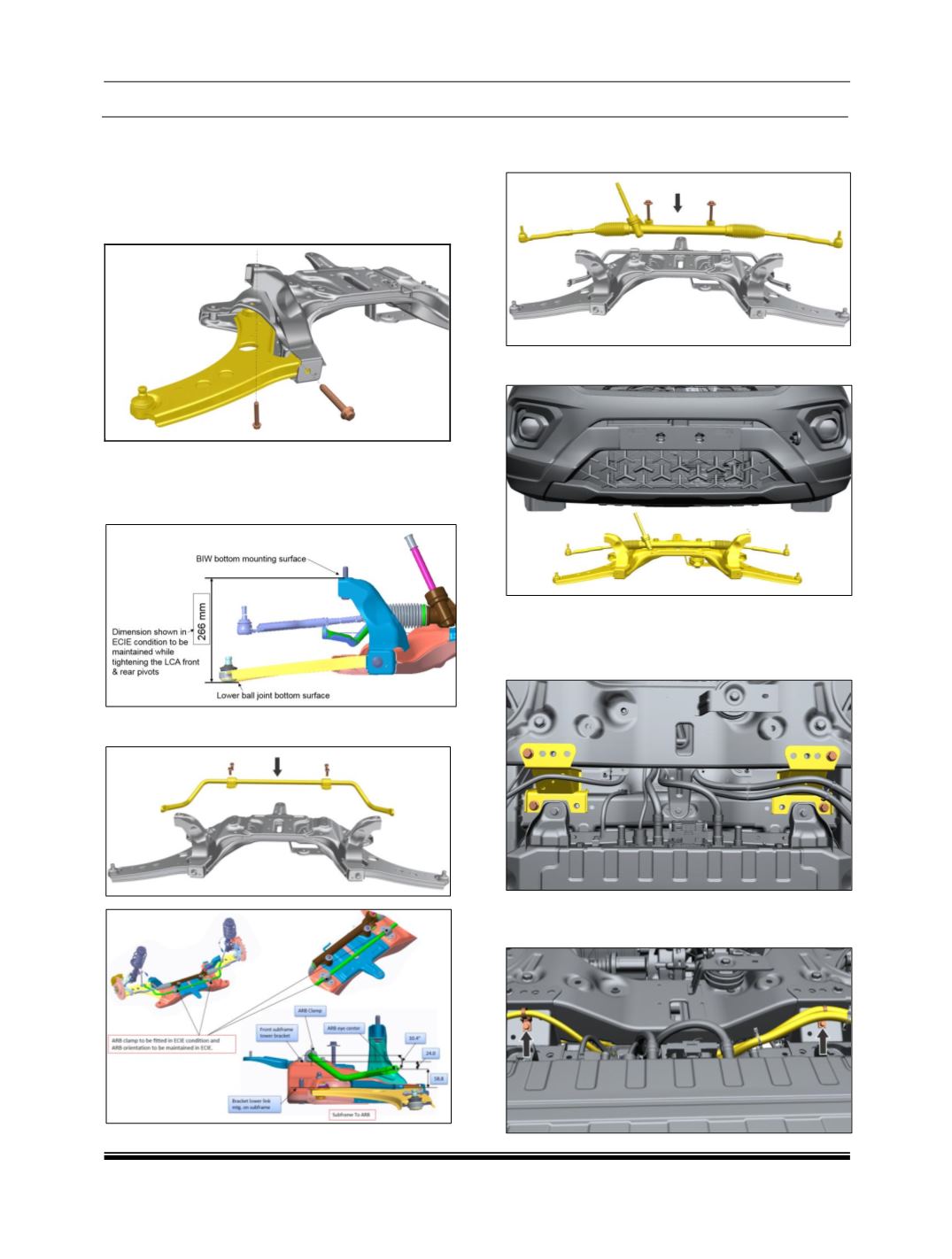

v. INSTALLATION OF SUBFRAME ASSEMBLY
1. Assemble the ball joint assembly to the lower
arm.
2. Position the lower arm to the Subframe and
tighten its front and rear pivot bush bolts.
NOTE:
Lower control arm fitment on subframe in
ECIE condition as below
3. Assemble anti roll bar to Subframe
4. Assemble the steering rack assembly to
Subframe.
5. Raise the cross member to the body.
6. Fix the Subframe to the vehicle by tightening
the four bolts and one screw.
7. Assemble crank reinforcement bracket.
8. Fix Battery connection wiring harness on
reinforcement bracket.
