SUSPENSION
32

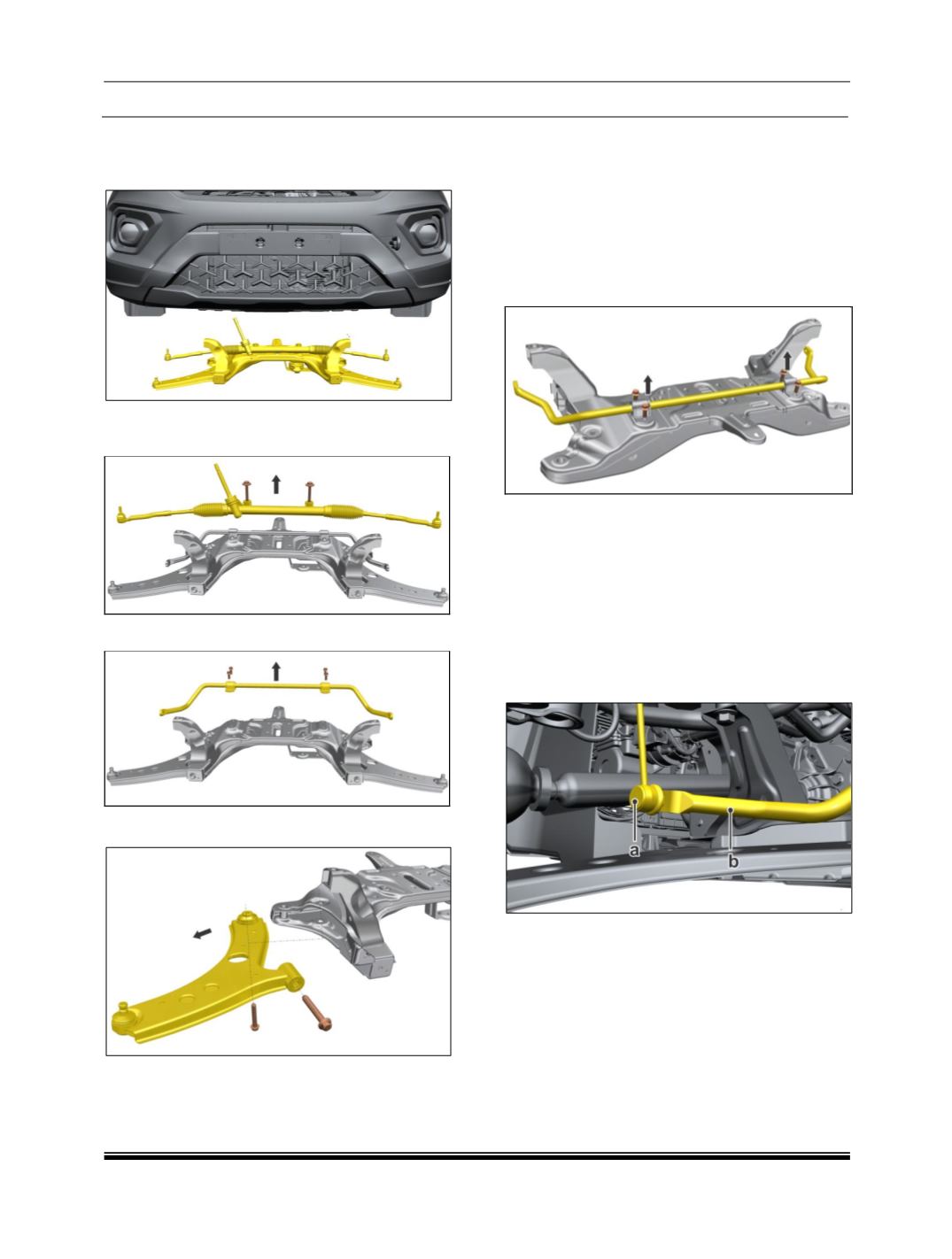

9. Loosen the Subframe bolts and lower the
assembly (Subframe, antiroll bar, steering
rack, lower arm).
10.Remove the steering rack assembly from
Subframe.
11.Remove the anti roll bar from Subframe.
12.Remove the lower arm assembly
ii. REMOVAL OF ANTI ROLL BAR
1. Position the vehicle on two post lift.
2. Remove lower nyloc nut of ball joint securing
Stab link to the anti roll bar.
3. Do markings at the area shown by arrows,
before removing anti roll bar mounting clamp
bolts so that anti roll bar can be easily
centralized while installation.
4. Remove anti roll bar mounting clamp screw
(06) and take out anti roll bar along with
washer (7).
Installation
1. Mount anti roll bar but do not tighten the bolts.
Align paint mark with bush face to centralize
anti roll bar.
2. Ensure ball joint face (a) of anti roll bar link is
parallel to mounting face of anti roll bar (b).
3. By holding the hex on the shank of the ball
joint with a spanner, keep on tightening the
lower nyloc nut till the threads protrude about 6
to 7 mm out-side the nut.
