MAINTENANCE OF NORMAL CHARGING GUN
The Portable Charger for Normal charging requires
no maintenance other than occasional cleaning.
WARNING:
To reduce the risk of electrical shock or equipment
damage, be cautious while cleaning the
connectors and case.
Clean the charging gun using a soft cloth lightly
moistened with mild detergent solution. Never use
any type of abrasive pad, scouring powder, or
flammable solvents such as alcohol or benzene.
1. The electrical socket used for EV charging and
its associated wiring should be able to supply
15A dedicated load continuously.
2. Do not use charging gun if it is wet in interface
area. Allow it to dry before use.
CAUTION:
Changes or modifications to this product by other
than an authorized service facility may void SAE-
J1772 compliance.

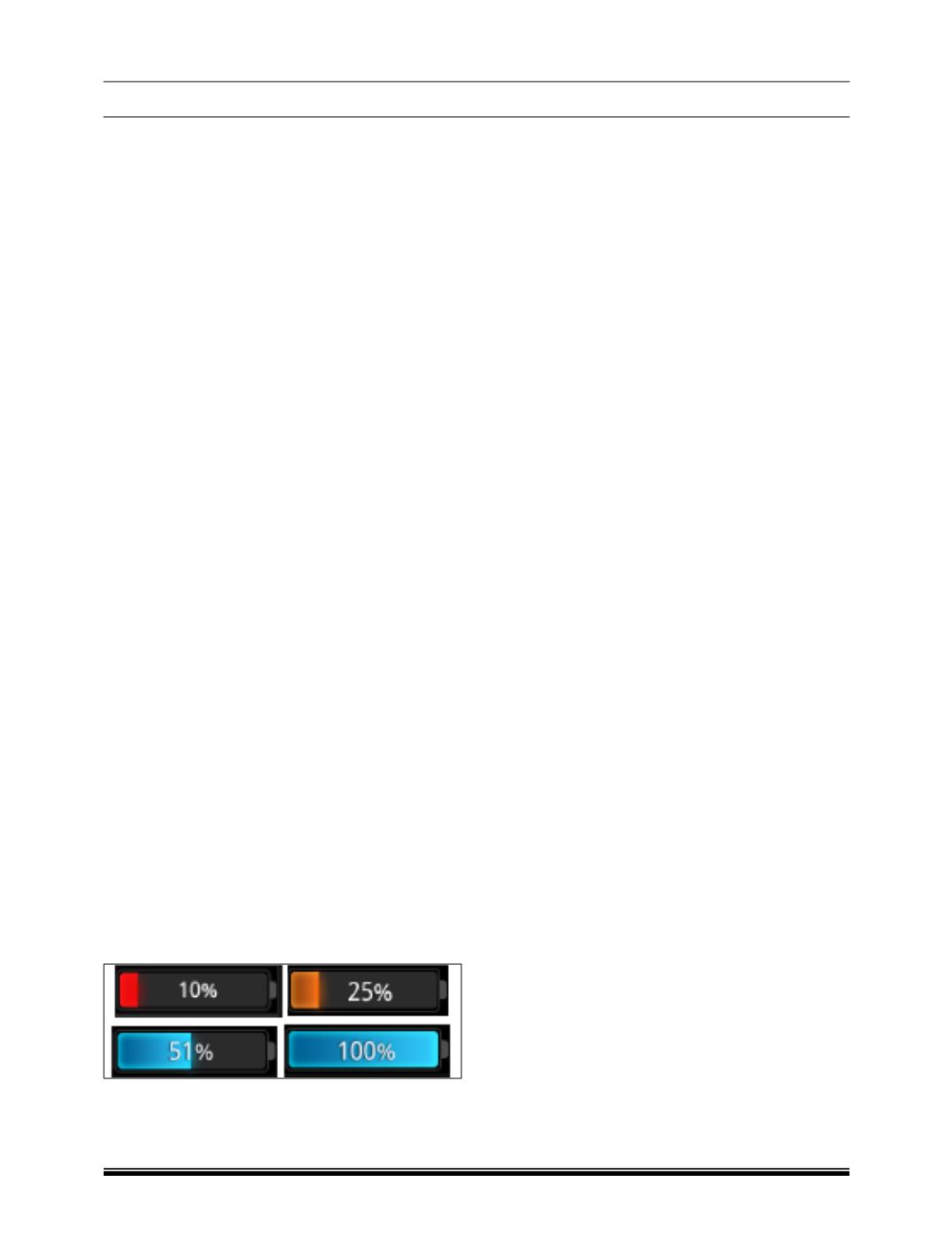

State of charge (SoC) gauge for high voltage
battery
Provided in the instrument cluster as a tell-tale. It
shows the charging status of the high voltage
battery.
Low charge or minimum position on the indicator
indicates that there is not enough energy in the
high voltage battery.
Full charge or max position indicates that the HV
battery is fully charged.
•
When driving on highways, make sure to
check in advance if the HV battery is charged
enough.
•
When the bar turns red on the high voltage
charge indicator, the low
•
charge warning lamp turns ON to alert you of
the battery level.
•
When the charge percentage is less than 25%
in the high voltage battery, the vehicle speed
is limited and then eventually the vehicle will
be turned OFF. Charge the vehicle
immediately.
