HV ELECTRICAL SYSTEM
12

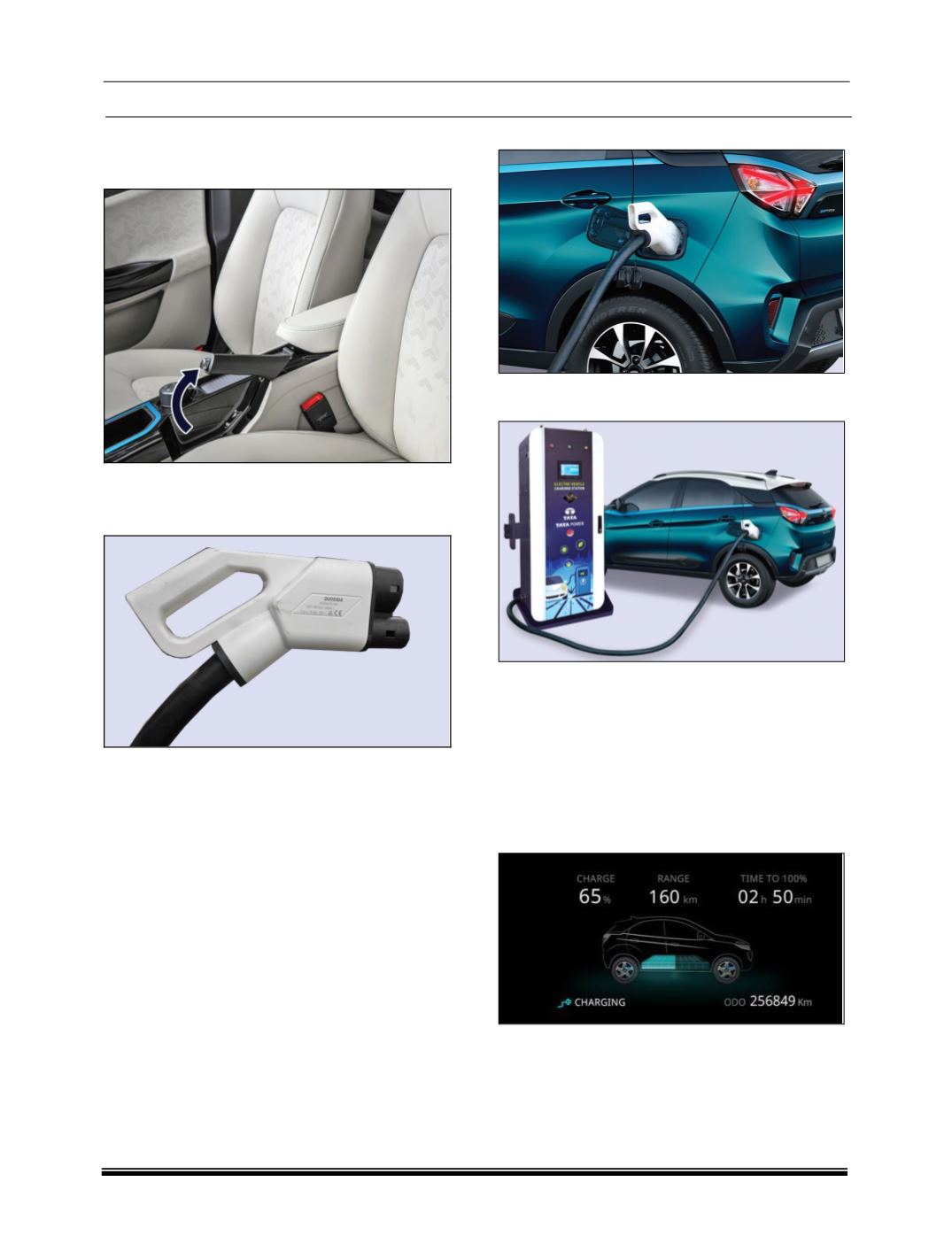

B. FAST CHARGING PROCEDURE
1. Engage the parking brake. (Charging won’t
start without engaging the parking brake).
2. Pull out the Charging Gun from DC/Fast
Charging Station.
3. Open the protective cap on Charging Gun.
4. Pull the ‘Charging-inlet Flap Open Lever’ to
open the charging door.
5. Open the charger-inlet flap.
6. If the actuator is engaged and the gun is not
getting inserted properly, contact TML service
center.
CAUTION:
If the Gun Lock is not released please don’t insert
the Charging Gun forcefully into the socket. It may
damage the Charging Socket.
7. Remove any dust on the Charging Gun and
Charging Inlet.
8. Connect the charging gun to vehicle AC and
DC Charging Inlet.
9. You hear a “click”, when the Gun is connected
correctly.
10. Switch on the DC charging station supply.
11. Charging Gun will be locked after switching on
the DC charging station.
12. Normally the car starts automatically charging.
If not, please refer Charging Gun’s Fault
Indication & Indi-cation Priority.
NOTE:
When vehicle is in Charging Mode, it will not go in
Drive(D), Sport (S) or Reverse(R).
13. Open the driver door and see instrument
cluster to know SoC, time to charge and gun
connection status.
14. In case the park brake is not engaged or
partially engaged the charging won’t start and
‘Engage Park Brake to start charging’
message will be displayed on instrument
cluster.
